4-132 Service Manual

7462

Go Back

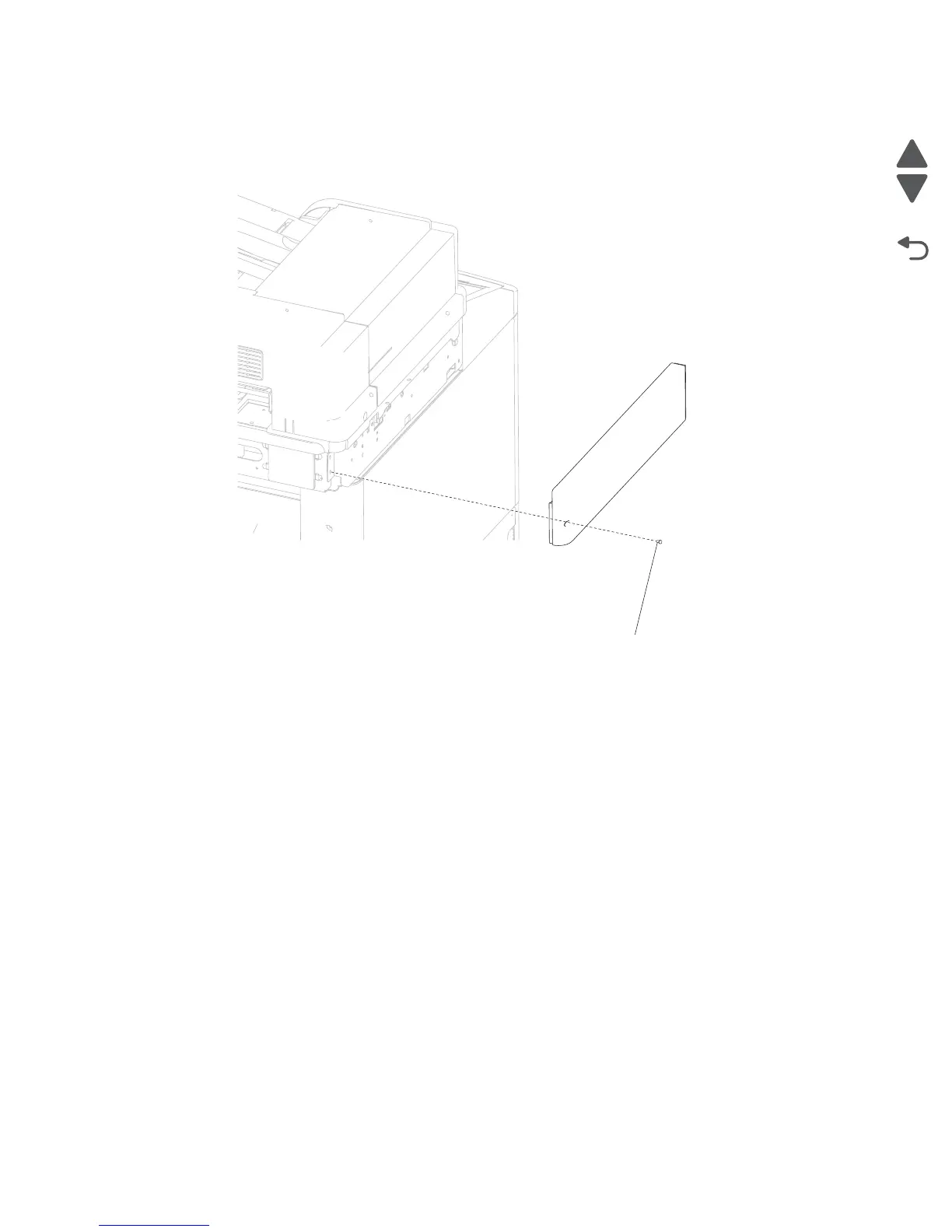

Scanner cover, left removal (model X658)

1. Remove the scanner cover, rear. See “Scanner cover, rear removal” on page 4-130.

2. Remove the metal screw (A) securing the scanner cover, left to the scanner assembly.

3. Slide the scanner cover, left to the rear, and remove.
