4-14 Service Manual
7462
3. Swing the fuser access door assembly away from the machine.
4. Unsnap the fuser access door assembly from the machine.
5. Remove the fuser access door assembly.
Main cooling fan removal
1. Remove the side cover, left. See “Side cover, left removal (models X651, X652, X654, and X656)” on
page 4-121 or “Side cover, left removal (model X658)” on page 4-120.

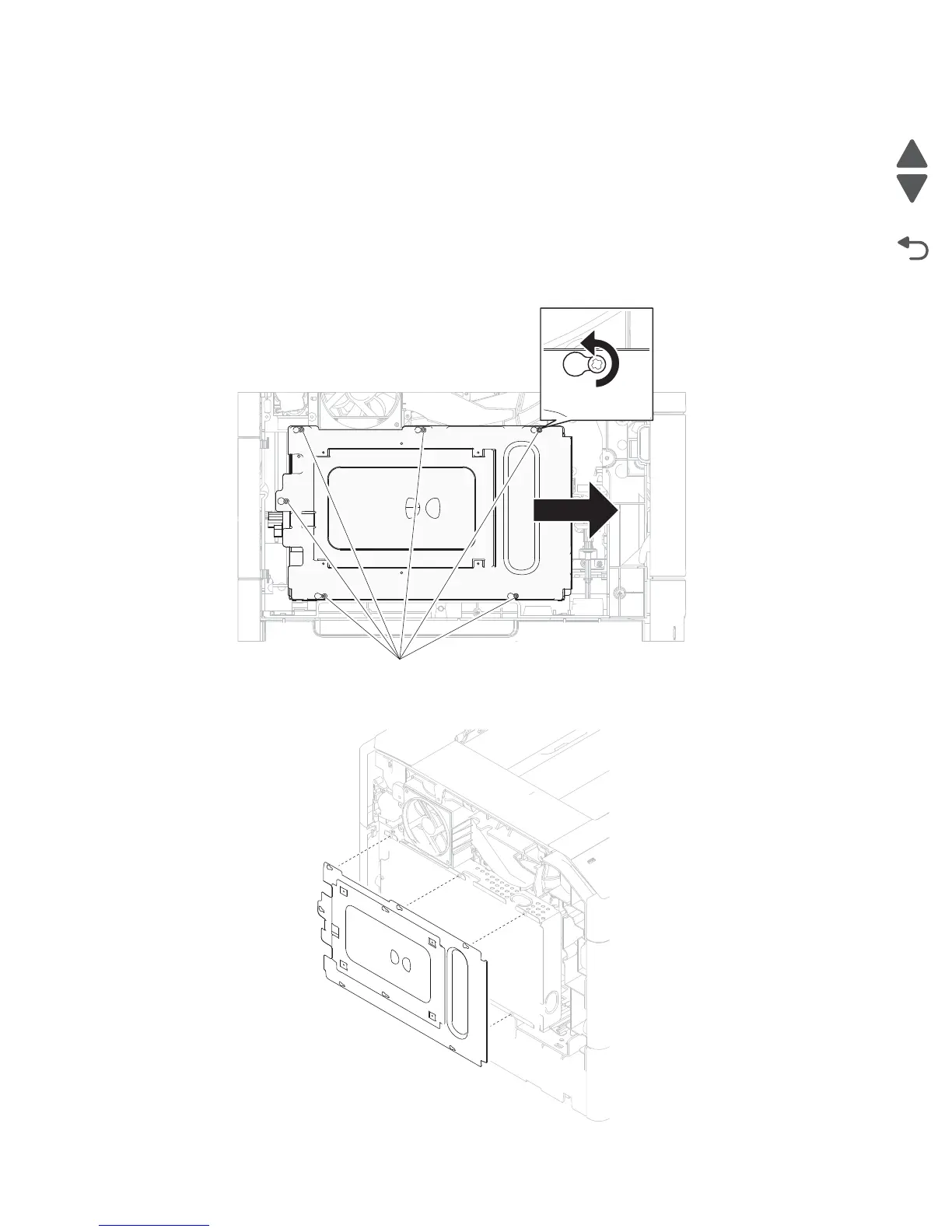

2. Remove the six screws (A) securing the metal shield to the machine.
3. Move the metal shield in the direction of the arrow.
4. Remove the metal shield.
