3-90 Service Manual

7462

Go Back

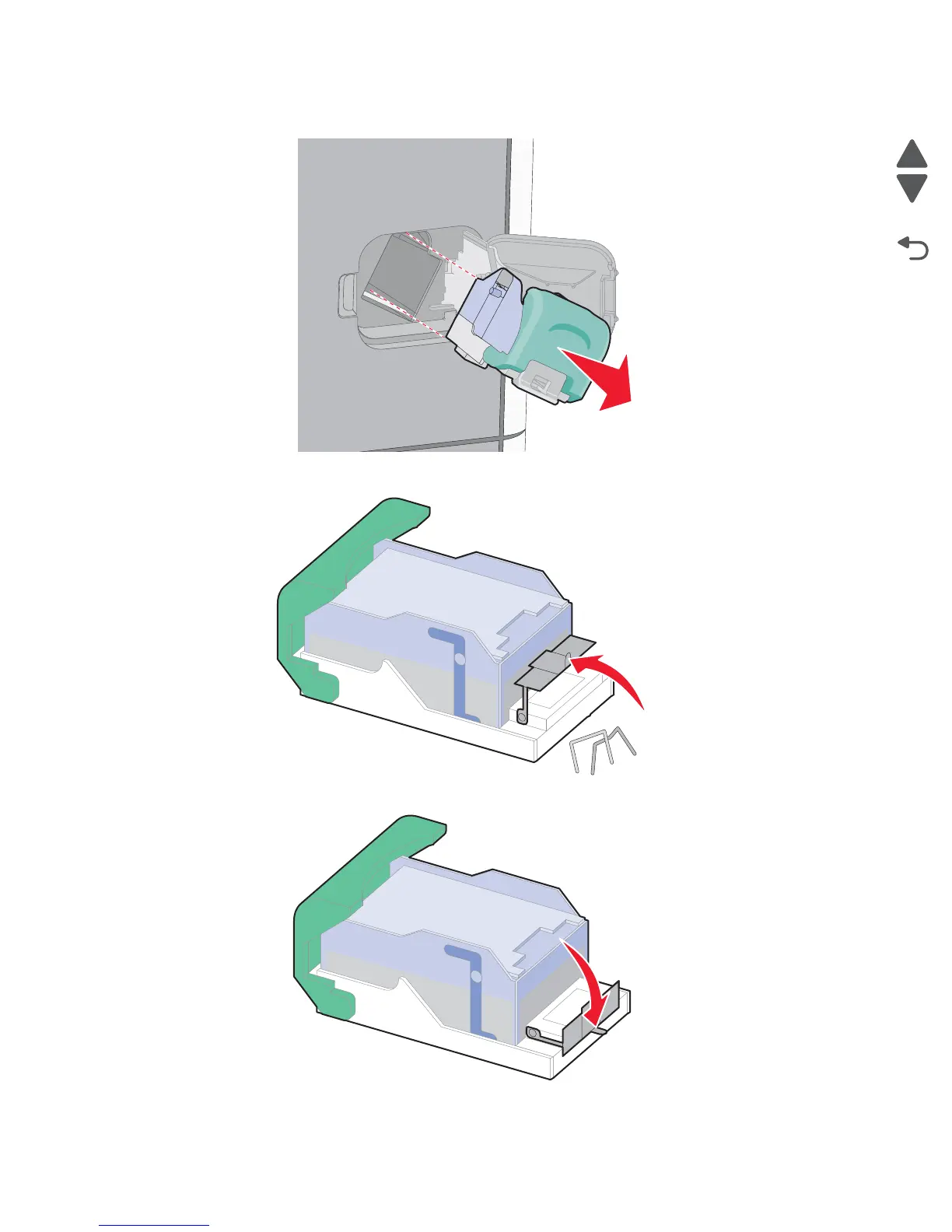

3. Pull the latch of the staple cartridge holder down, and then pull the holder out of the printer.

4. Use the metal tab to lift the staple guard, and then remove any loose staples.

5. Close the staple guard.
