Diagnostic aids 3-95

7462

Go Back

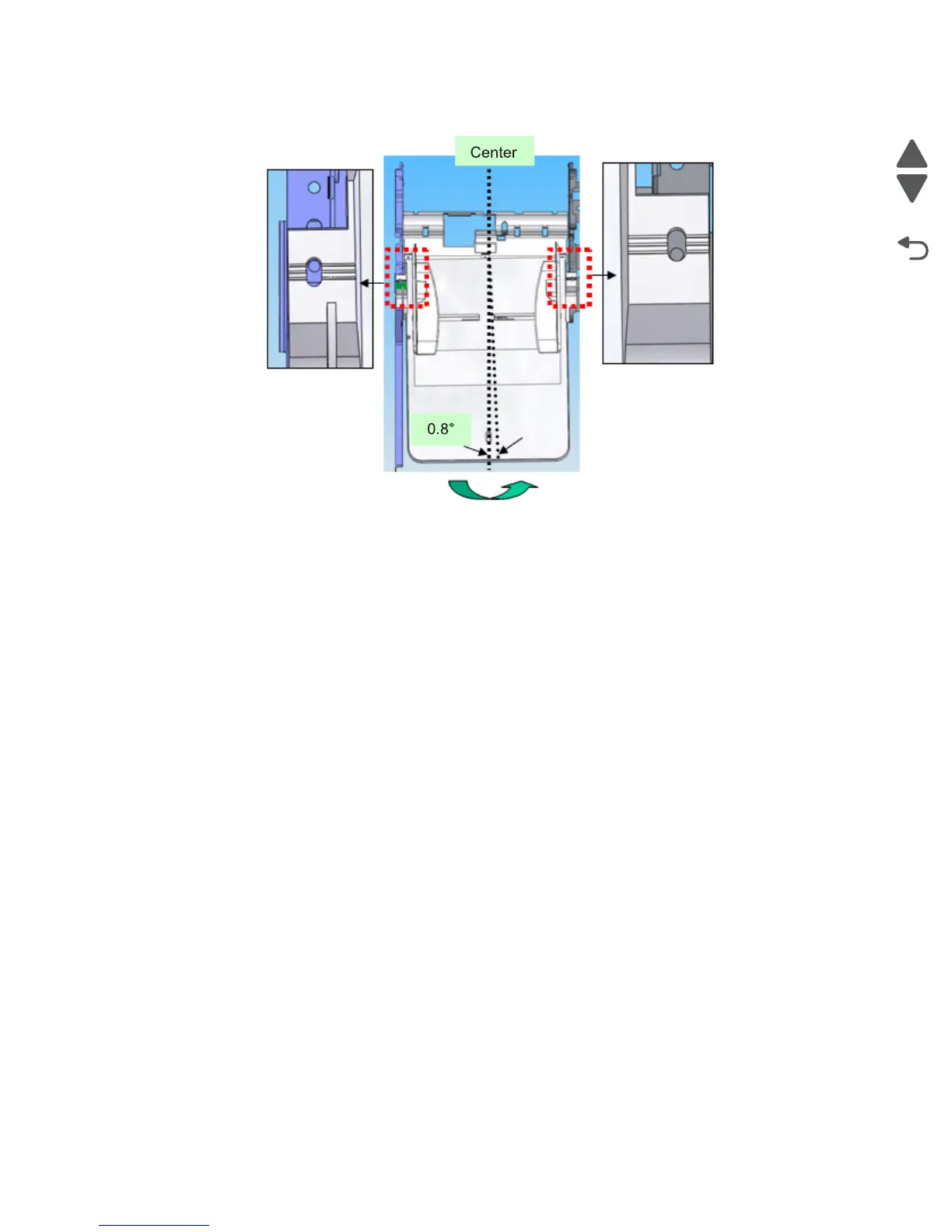

3. For positive skew, rotate the document tray clockwise as shown above.

4. For negative skew, rotate the document tray counterclockwise as shown above.

5. After skew correction has been made, tighten the document tray screws, and reinstall the ADF front and

rear covers.
