4-8 Service Manual

7462

Go Back

Duplex cooling fan removal

1. Remove the side cover, right. See “Side cover, right removal (models X651, X652, X654, and X656)” on

page 4-119.

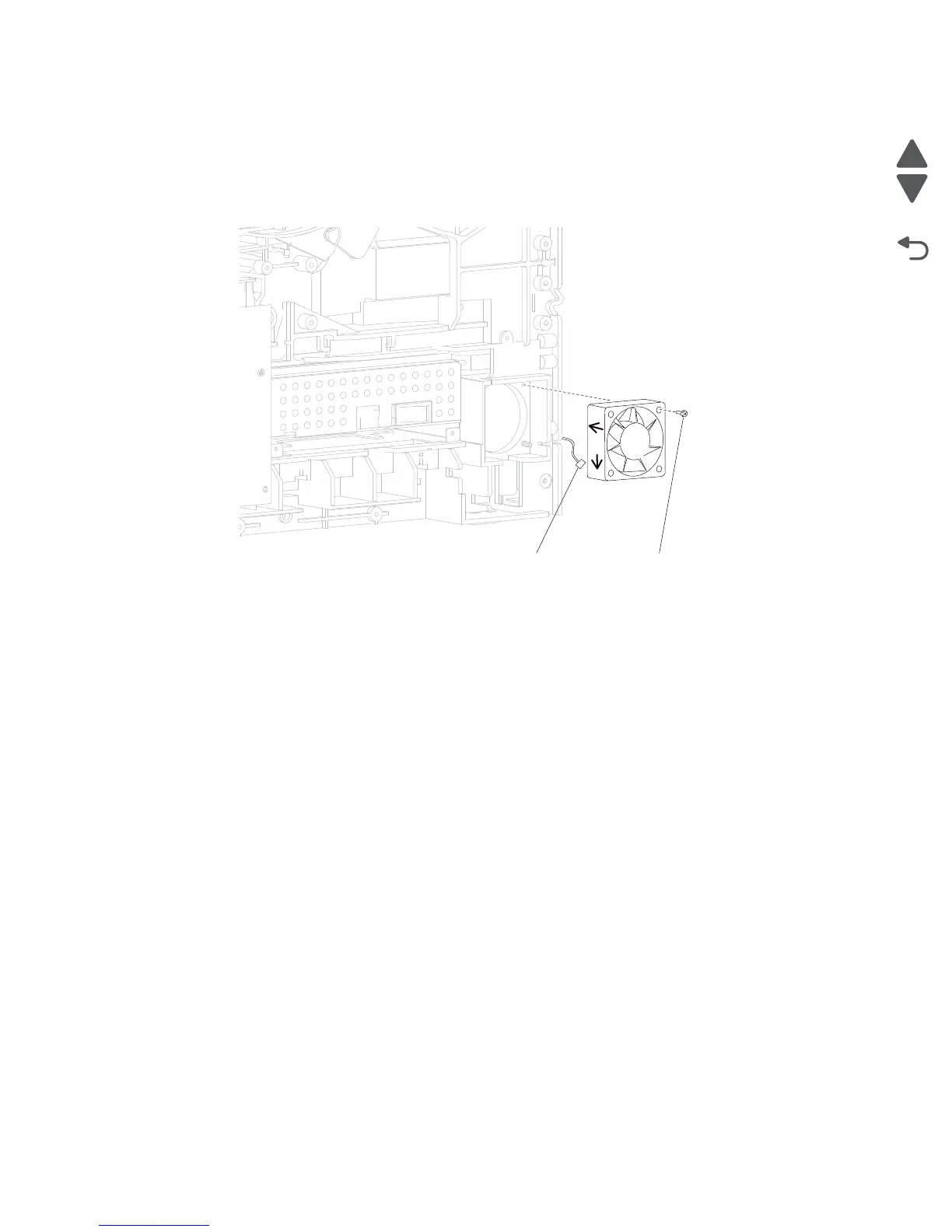

2. Remove the screw (A) securing the duplex cooling fan to the machine.

3. Disconnect the connector (B) from the duplex cooling fan.

4. Remove the duplex cooling fan.

Replacement Warning: When replacing the duplex cooling fan, ensure that it is installed as shown in the

picture.
