4-12 Service Manual
7462
Media turn guide removal
1. Remove the MPF tray door assembly. See “MPF tray door assembly removal (model X658)” on
page 4-96 or “MPF tray door assembly removal (models X651, X652, X654, and X656)” on page 4-93.

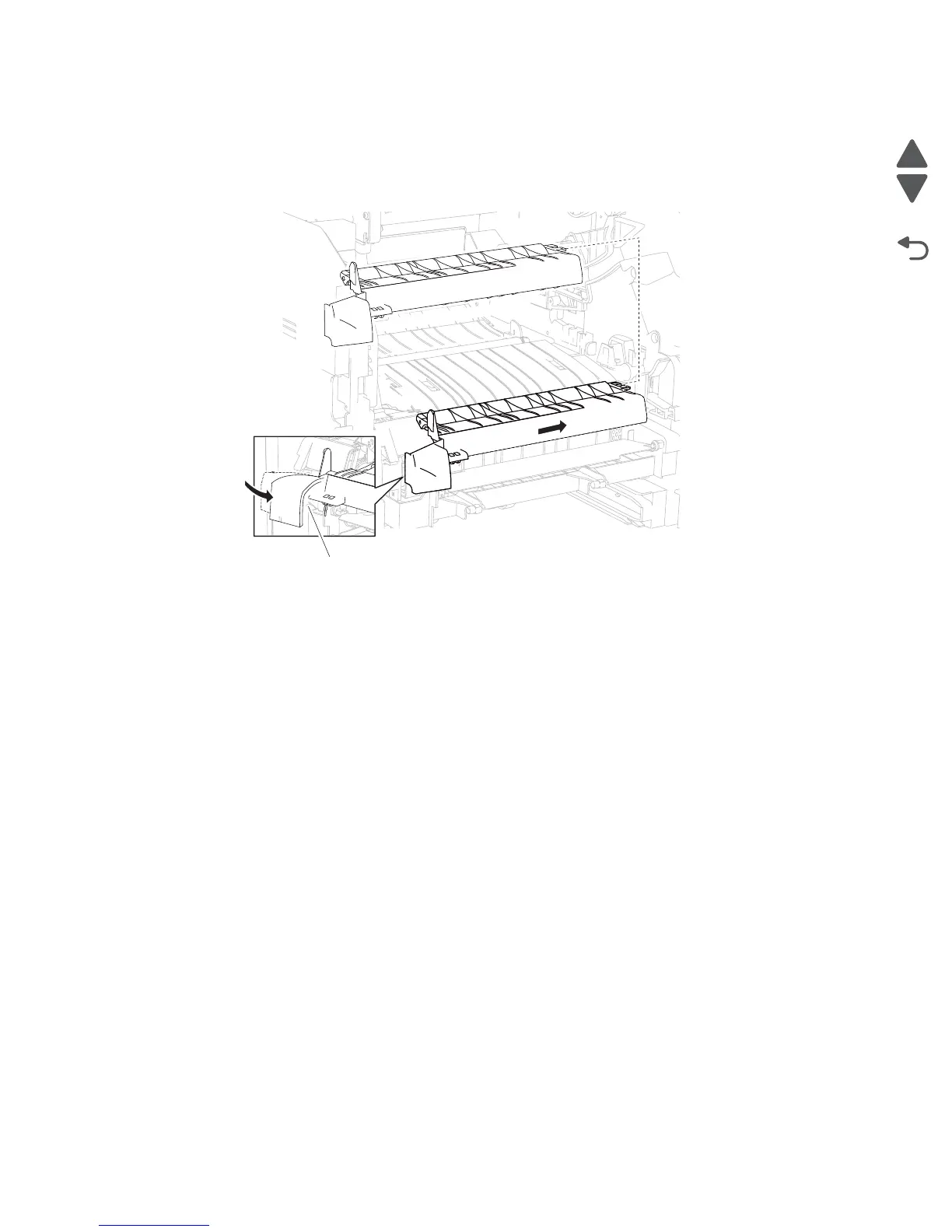

2. Gently bend the left side of the media turn guide to release the hook (A) as shown in the picture.
3. While gently bending the media turn guide, move the media turn guide in the direction of the arrow.
4. Remove the media turn guide.
Replacement Warning: When replacing the media turn guide, ensure that it is properly installed, or jamming
will occur.
