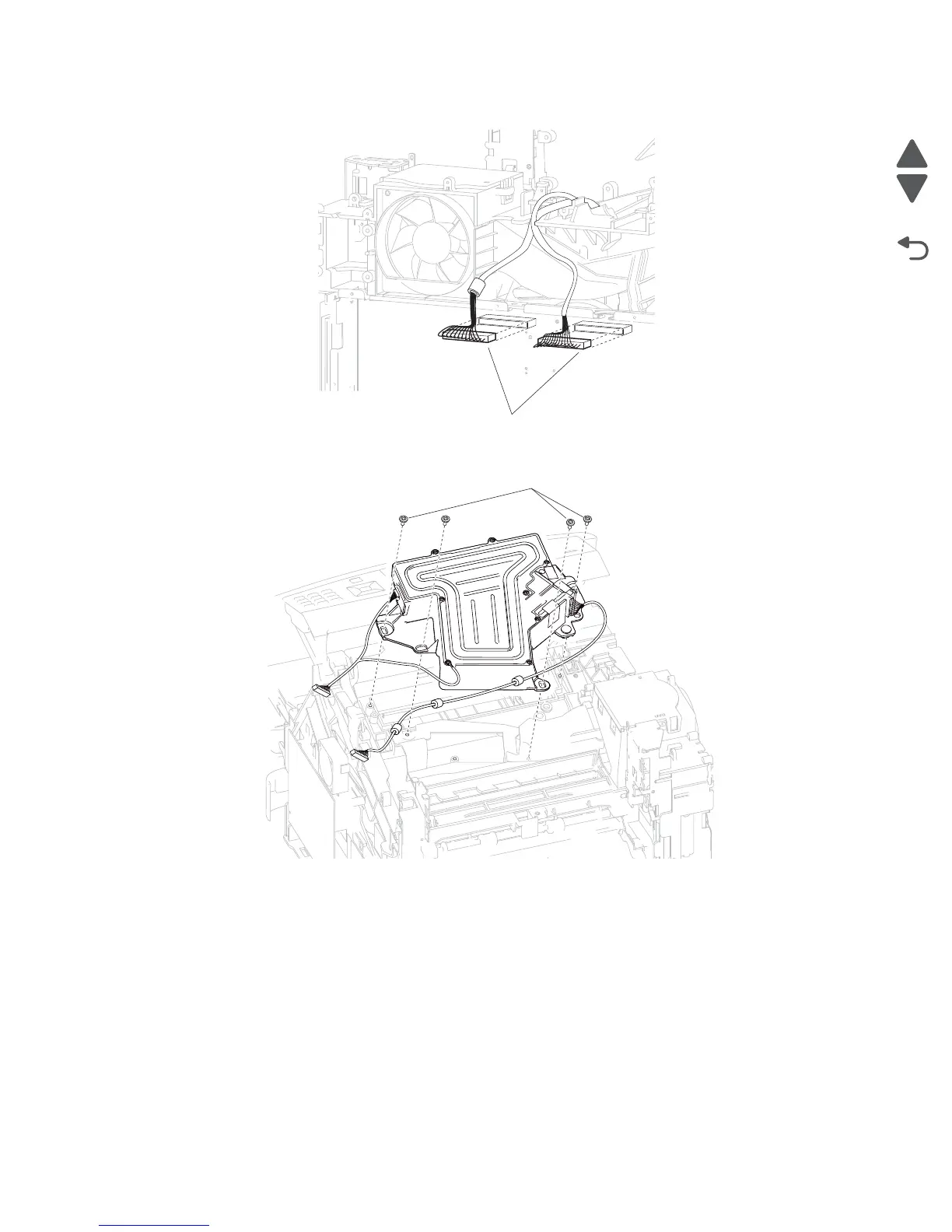

4. Disconnect the connections (B) from the printhead assembly.
5. Remove the four screws (C) securing the printhead assembly to the machine.
6. Remove the printhead assembly.
Replacement Warning: When replacing the printhead assembly, ensure that the printhead skew is properly
adjusted, or print quality issues will occur. See “Polygon printhead mechanical registration adjustment”
on page 4-2.
