MPF tray door assembly removal (model X658)
1. Open the MPF tray door assembly.
2. Remove the MPF media guide assembly. See “MPF media guide assembly removal (model X658)” on
page 4-105.

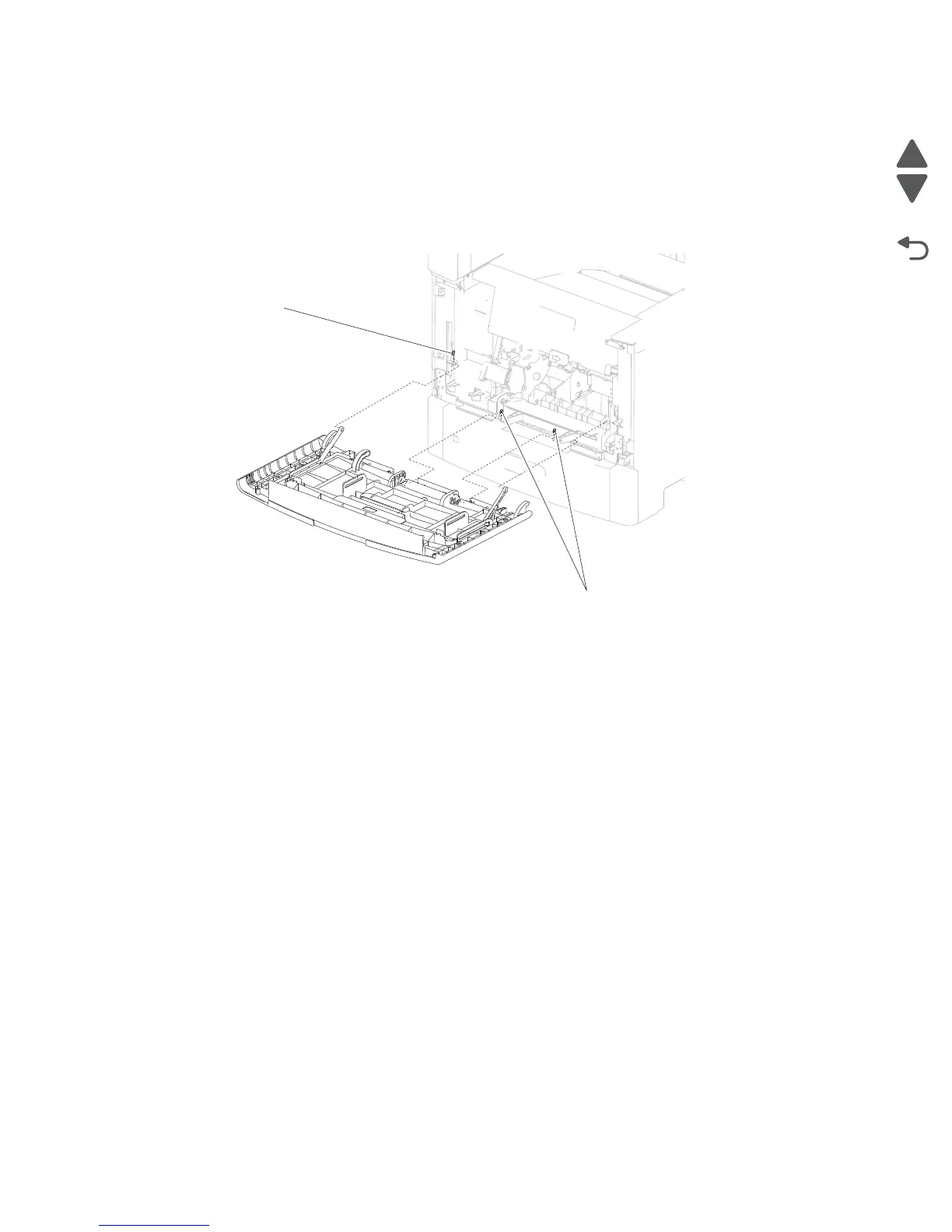

3. Remove the two retaining clips (A) from the hinges on the MPF tray door.
4. Remove the left clip (B) securing the front door tension link.
5. Remove the left tension link.
6. Pull the right tension link from the hinge.
7. Slide the MPF tray door assembly to the left until all the bosses clear the hinges.
8. Angle the left side of the MPF tray door assembly down, and slide it back to the right until the door is clear
of the right hinge.
9. Remove the MPF tray door assembly.
A
B
