Repair information 4-99

7462

Go Back

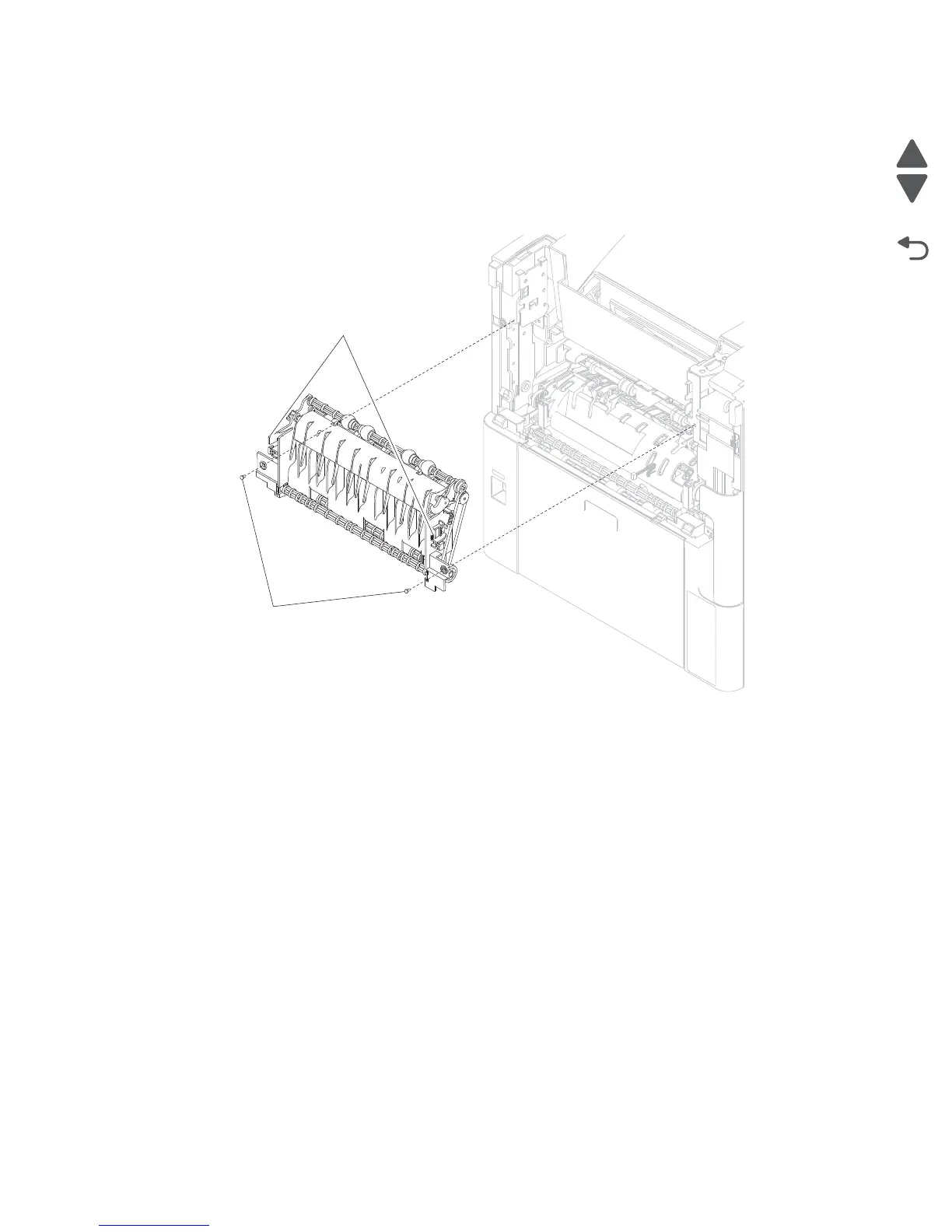

Redrive assembly removal (model X658)

1. Remove the fuser access assembly. See “Fuser access assembly removal” on page 4-97.

2. Remove the two screws (A) securing the redrive assembly to the machine.

3. Remove the fuser wiper cover.

4. Release the left and right clips (B).

5. Remove the redrive assembly.
