4-102 Service Manual

7462

Go Back

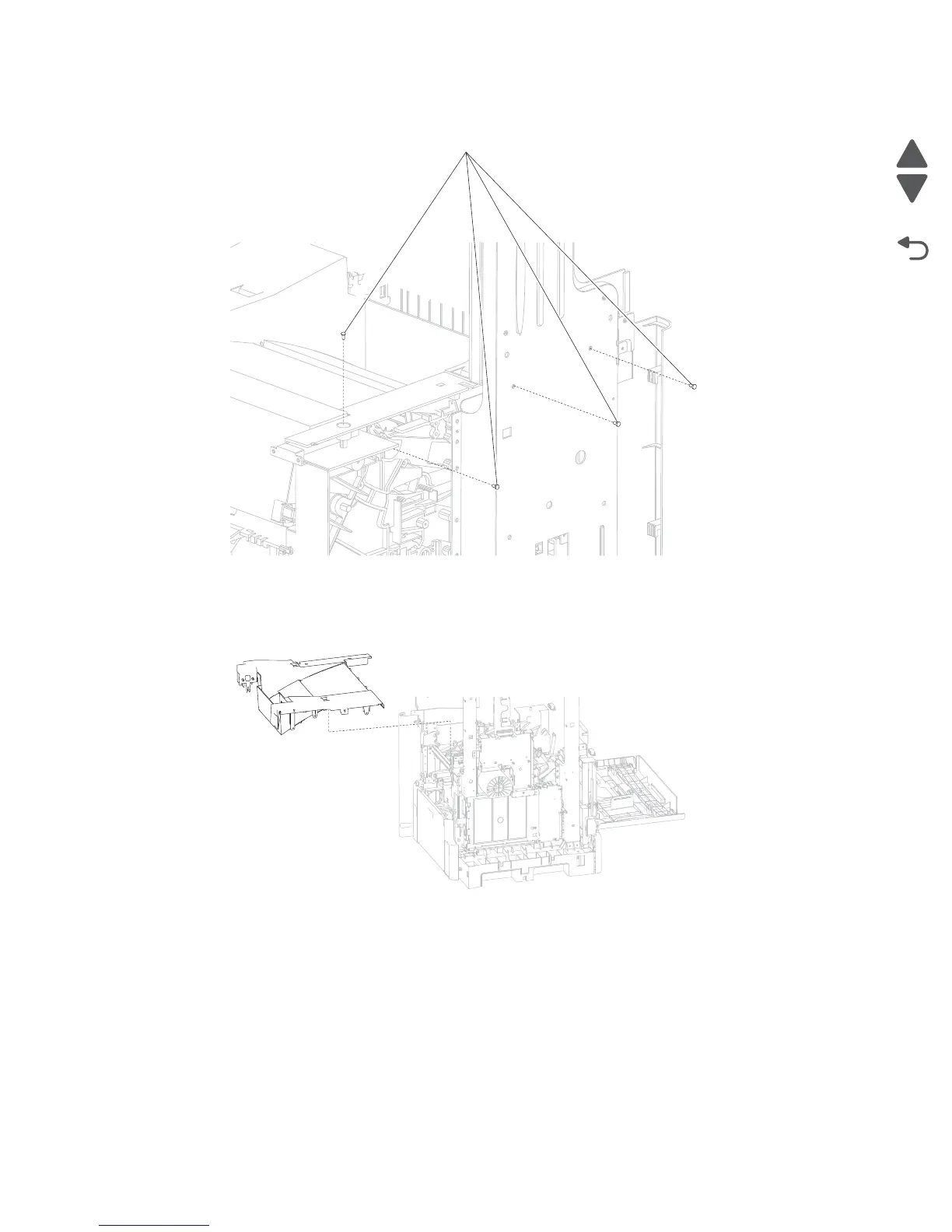

6. Remove the four screws on the right (B) securing the laser cover.

7. Remove the sensor (ADF media exit) fan bracket assembly. See “Sensor (standard bin exit) actuator

assembly removal” on page 4-86.

8. Remove the print cartridge cover. See “Print cartridge cover assembly removal (model X658)” on

page 4-117.

9. Remove the laser cover.
