4-108 Service Manual

7462

Go Back

Card reader assembly removal (model X658)

1. Remove the operator panel assembly. See “Operator panel assembly removal (model X658)” on

page 4-106.

2. Turn over the operator panel assembly.

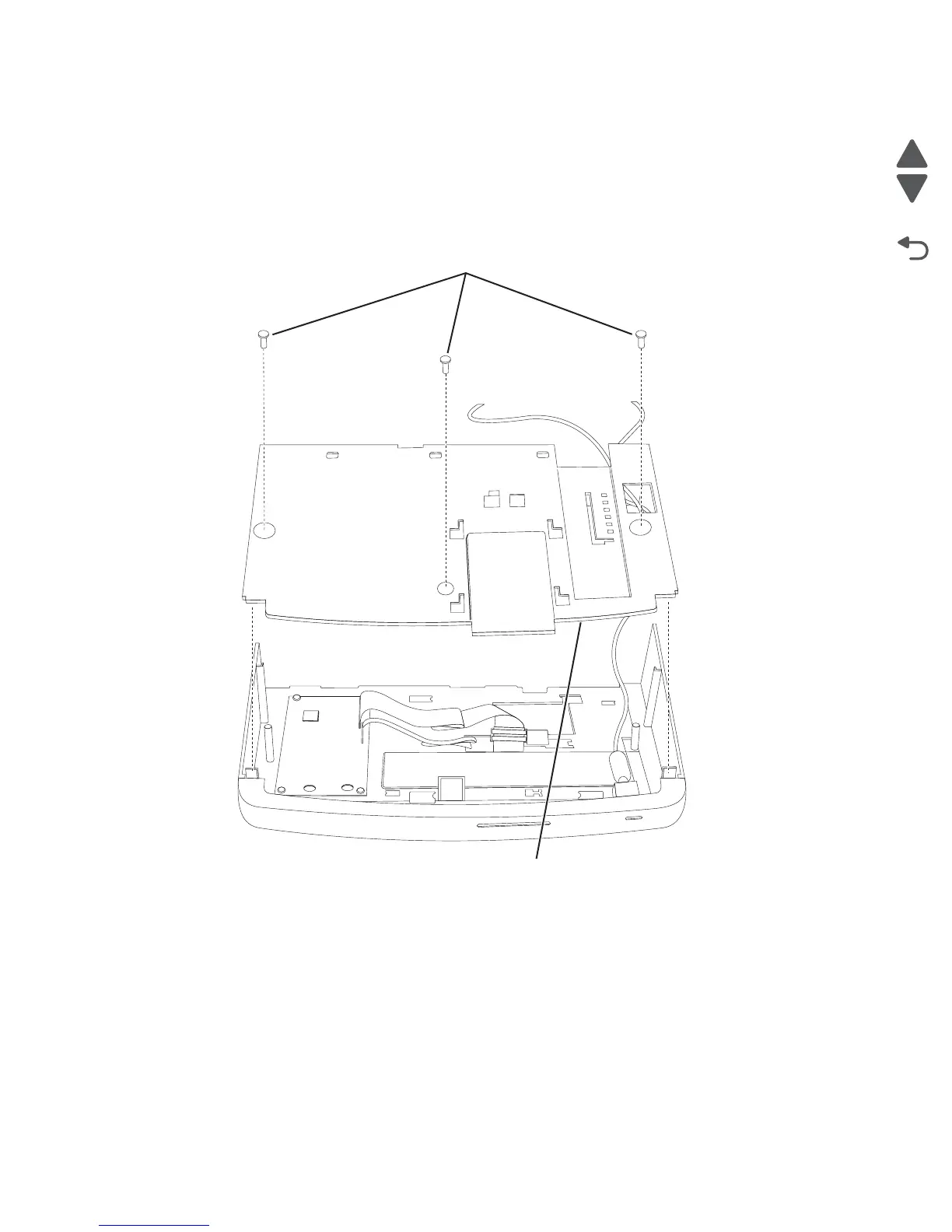

3. Remove the 3 screws (A) from the back of the operator panel assembly.

4. Separate the lower panel (B) from the upper panel, and turn it over.
