Scanner support cover, left removal (model X658)
1. Remove the scanner support cover, left rear. See “Scanner support cover, left rear removal (model
X658)” on page 4-146.
2. Remove the scanner support cover, left front. See “Scanner support cover, left front removal (model
X658)” on page 4-147.

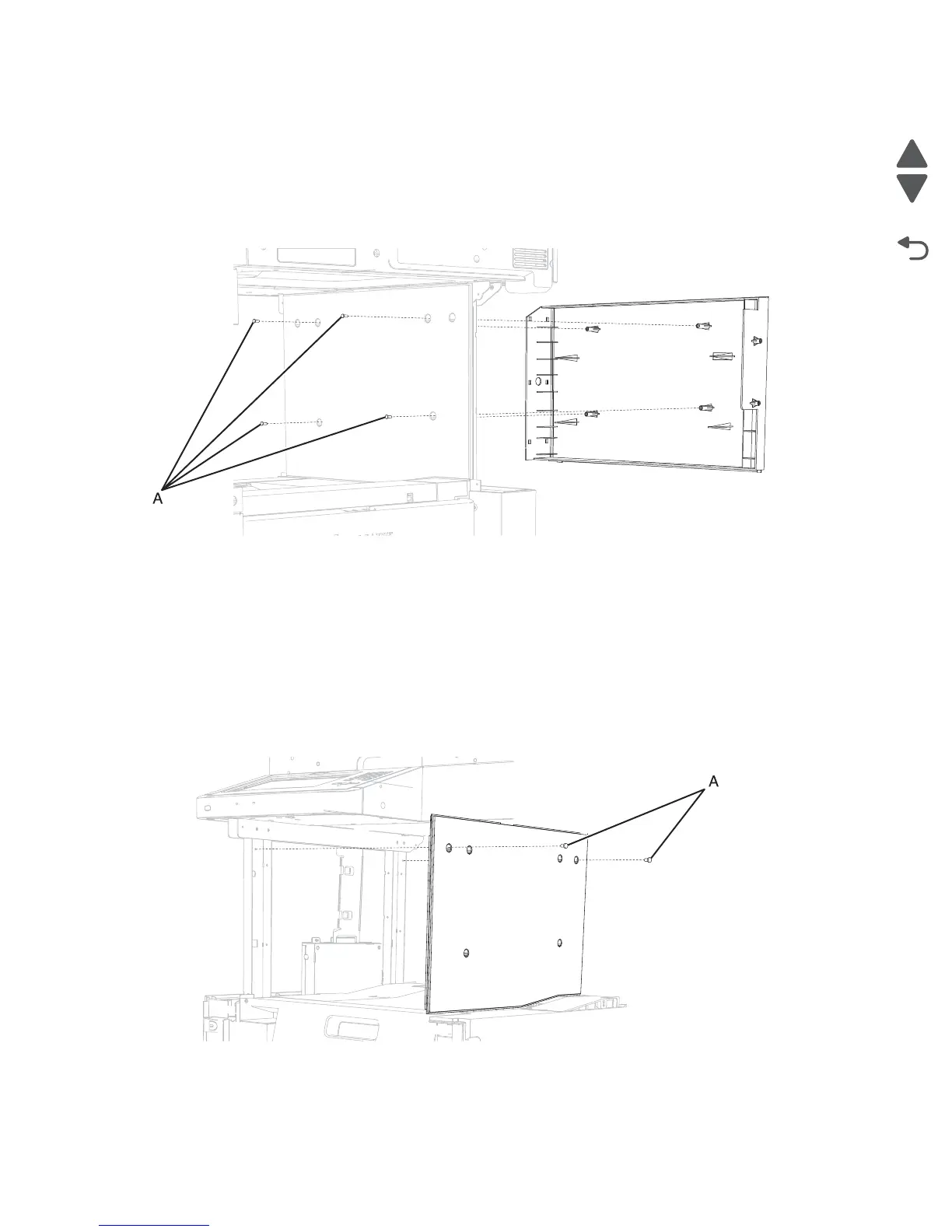

3. Remove the four screws (A) from the inside panel.
4. Remove the scanner support cover, left.
Scanner support inner cover, left removal (model X658)
1. Remove the scanner support cover, left rear. See “Scanner support cover, left rear removal (model
X658)” on page 4-146.
2. Remove the scanner support cover, left front. See “Scanner support cover, left front removal (model
X658)” on page 4-147.
3. Remove the scanner support cover, left. See “Scanner support cover, left removal (model X658)” on
page 4-148.
4. Remove the two screws (A) securing the scanner support inner cover, left.
5. Slide the scanner support inner cover, left to the front, and remove.
