4-152 Service Manual

7462

Go Back

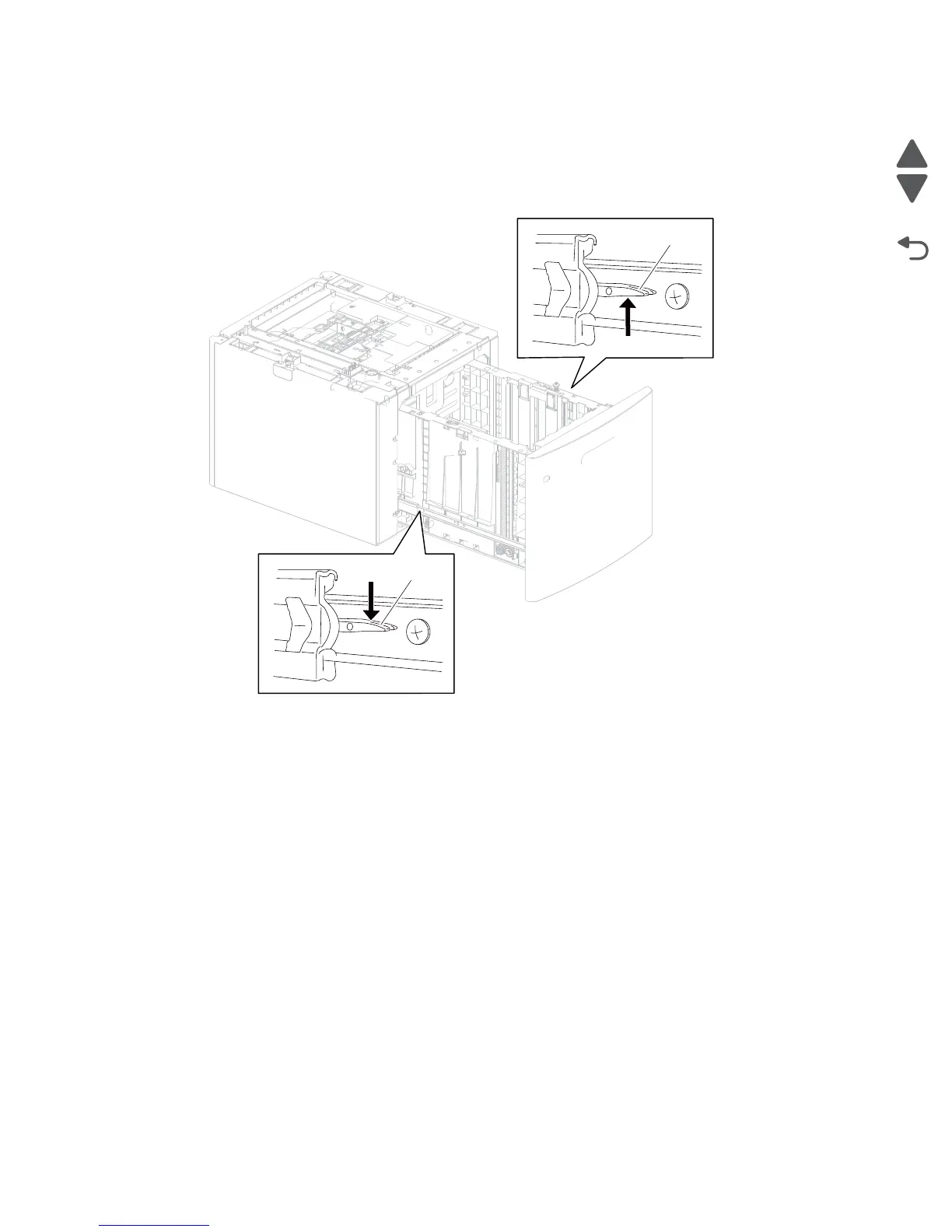

High capacity input tray (HCIT) media tray assembly removal

1. Open the HCIT media tray assembly until it reaches a stop.

2. Press the latch (A) down on the left side of the HCIT tray slide, and press the latch (B) up on the right side

of the HCIT tray slide.

3. Slide the HCIT media tray assembly out of the drawer.
