Repair information 4-223

7462

Go Back

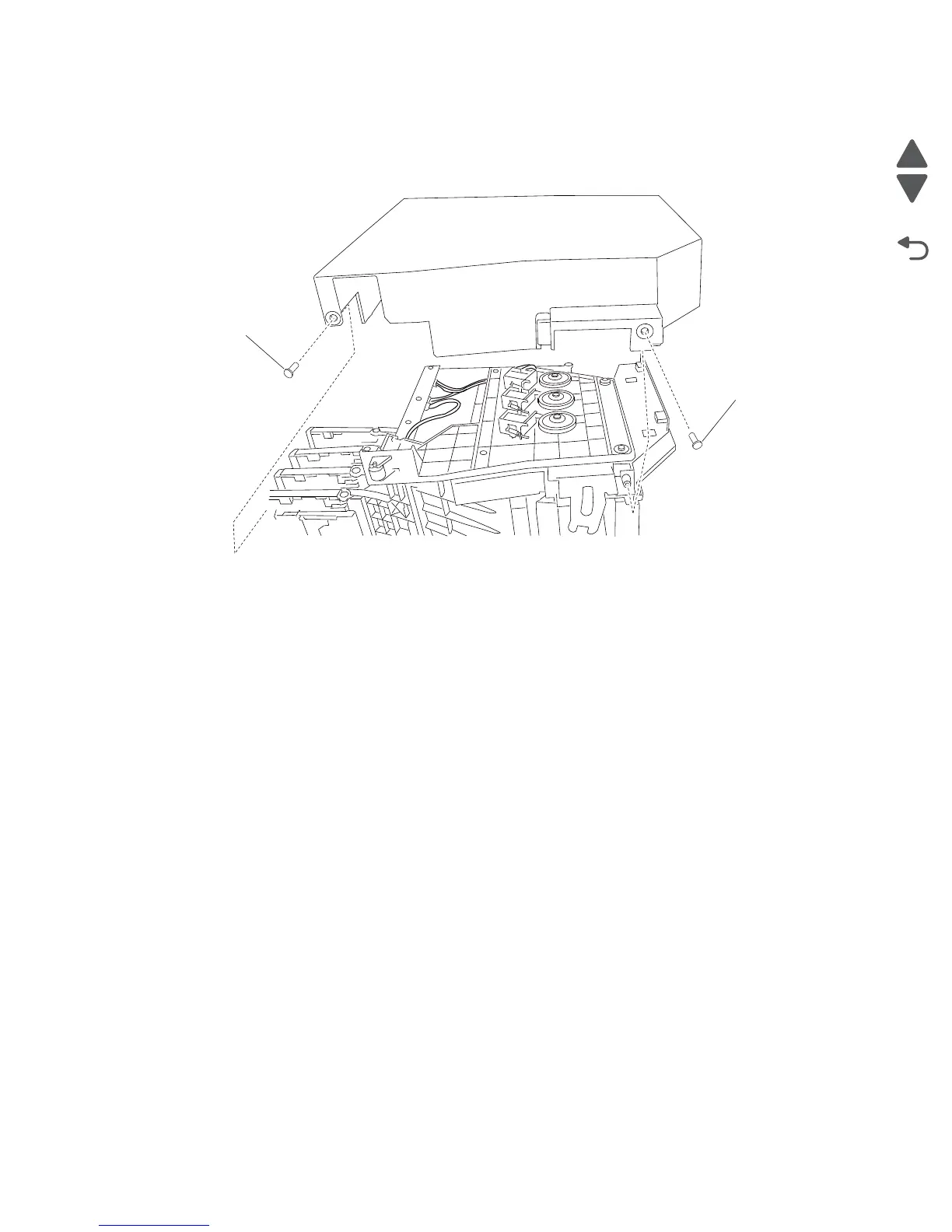

4-bin mailbox assembly right cover removal

1. Place the 4-bin mailbox assembly on its side.

2. Remove the two screws (A) from the bottom side of the right cover securing cover in place.

3. Using your fingers, pull up on the top of the right cover and pull out simultaneously to remove.
