Repair information 4-247

7462

Go Back

Stapler/stacker controller card assembly removal

1. Remove the left left cover. See “Offset stacker left cover removal” on page 4-238.

2. Disconnect all harnesses to the controller card.

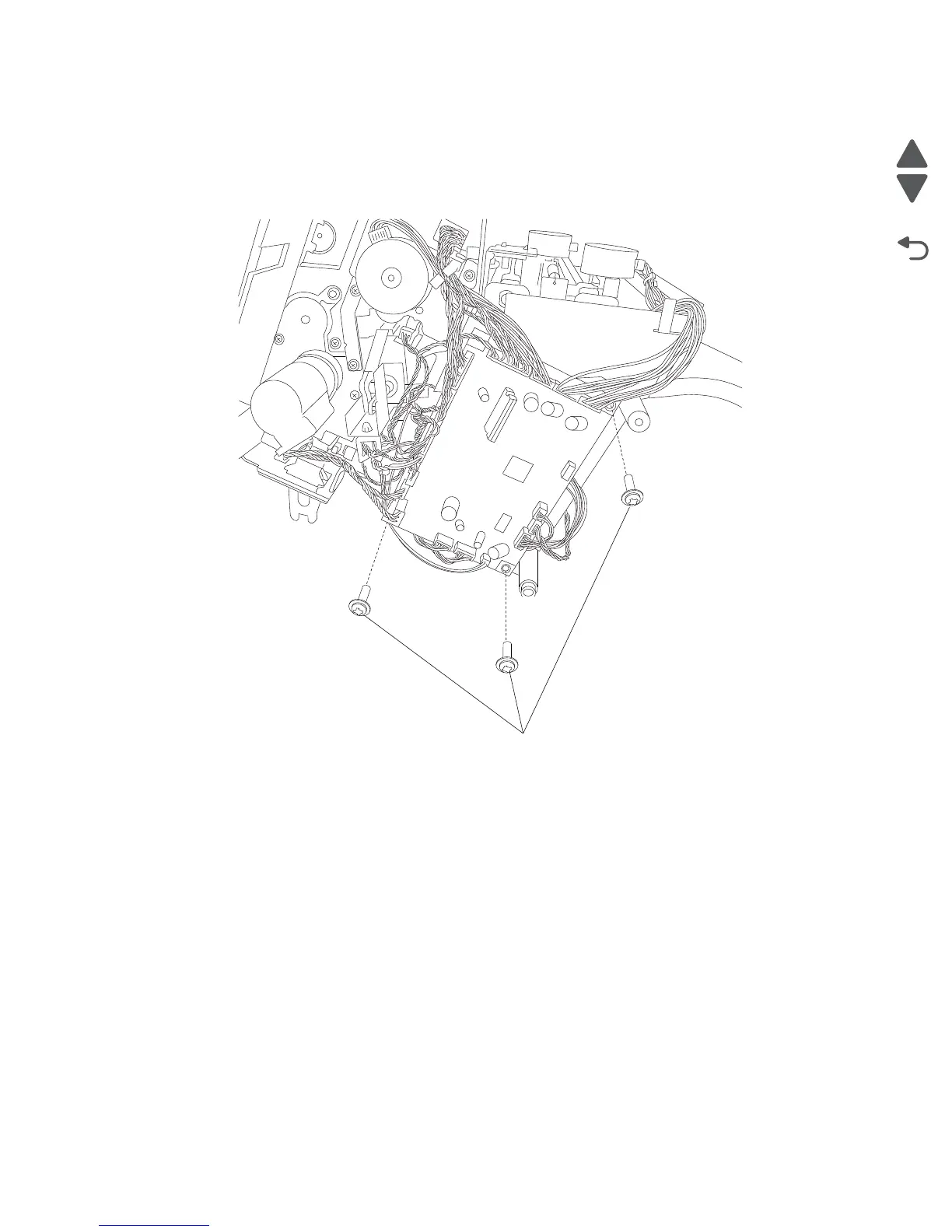

3. Remove the three screws (A) securing the stapler/stacker controller card assembly.

4. Remove the stapler/stacker controller card assembly.
