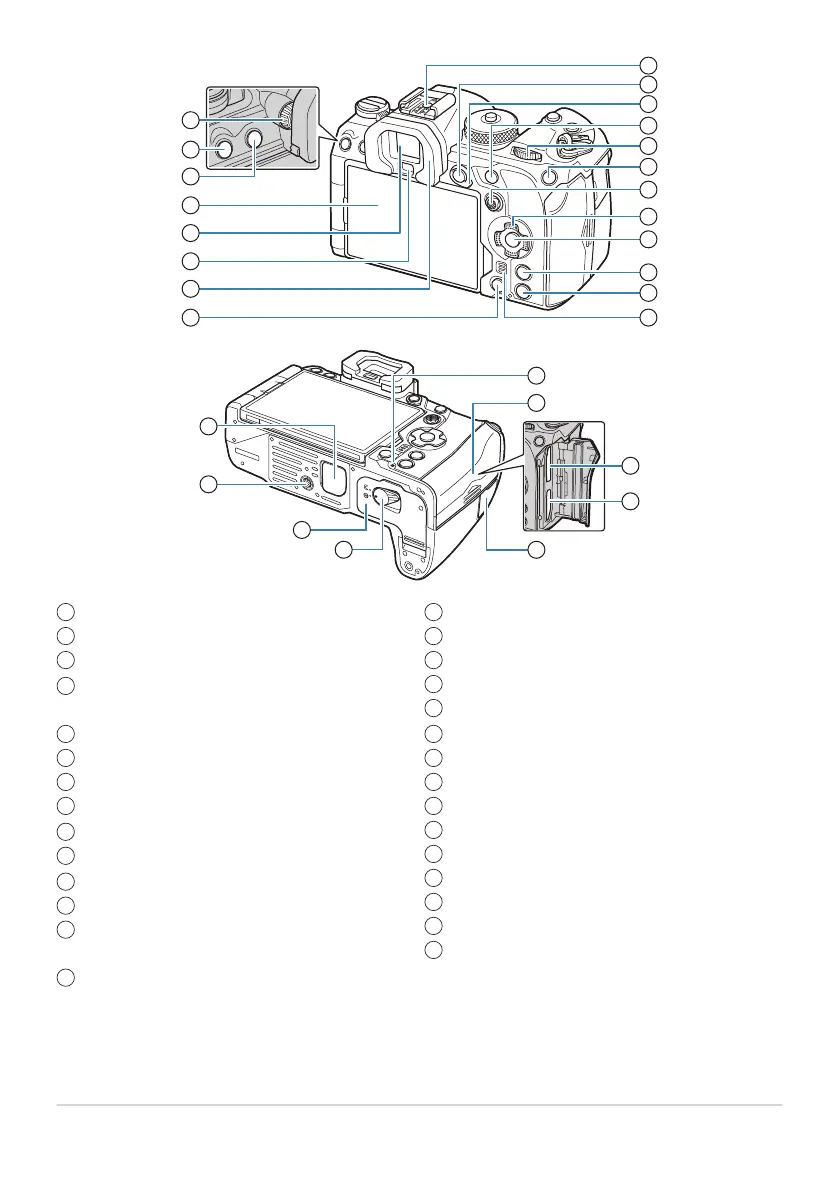

OM SYSTEM OM-1 Mark II - Page 25

Diopter adjustment dial (P.47)
MENU button (P.97)
U (LV) button (P.47)
Monitor (Touch screen) (P.44, P.47, P.54,
P.143, P.299)
Viewfinder (P.47, P.368)
Eye sensor
Eyecup (P.486)
D (erase) button (P.306)
Hot shoe (P.176, P.485)
AEL/0 (Protect) button (P.160 / P.303)
Fn lever (P.58, P.61, P.63, P.65, P.352)
AF-ON button (P.116, P.117)
Rear dial (P.58, P.61, P.63, P.65, P.97, P.294,
P.328, P.347, P.350)
ISO / E (Rating) button (P.166 / P.312)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Multi selector (P.105, P.351)
Arrow pad (P.294)
OK button (P.97, P.89, P.294)
INFO button (P.49, P.99, P.293)
q (playback) button (P.294)
Speaker
Power battery holder (PBH) cover (P.478)
Tripod socket
Battery compartment cover (P.28)
Battery compartment lock (P.28)
Battery charge lamp (P.30)
Card compartment cover (P.33)
Card slot 1 (P.33)
Card slot 2 (P.33)
Remote cable terminal cover (remote cable
terminal) (P.454)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
19
21
24
25
26
27
28
29
22
23
25
Names of parts
