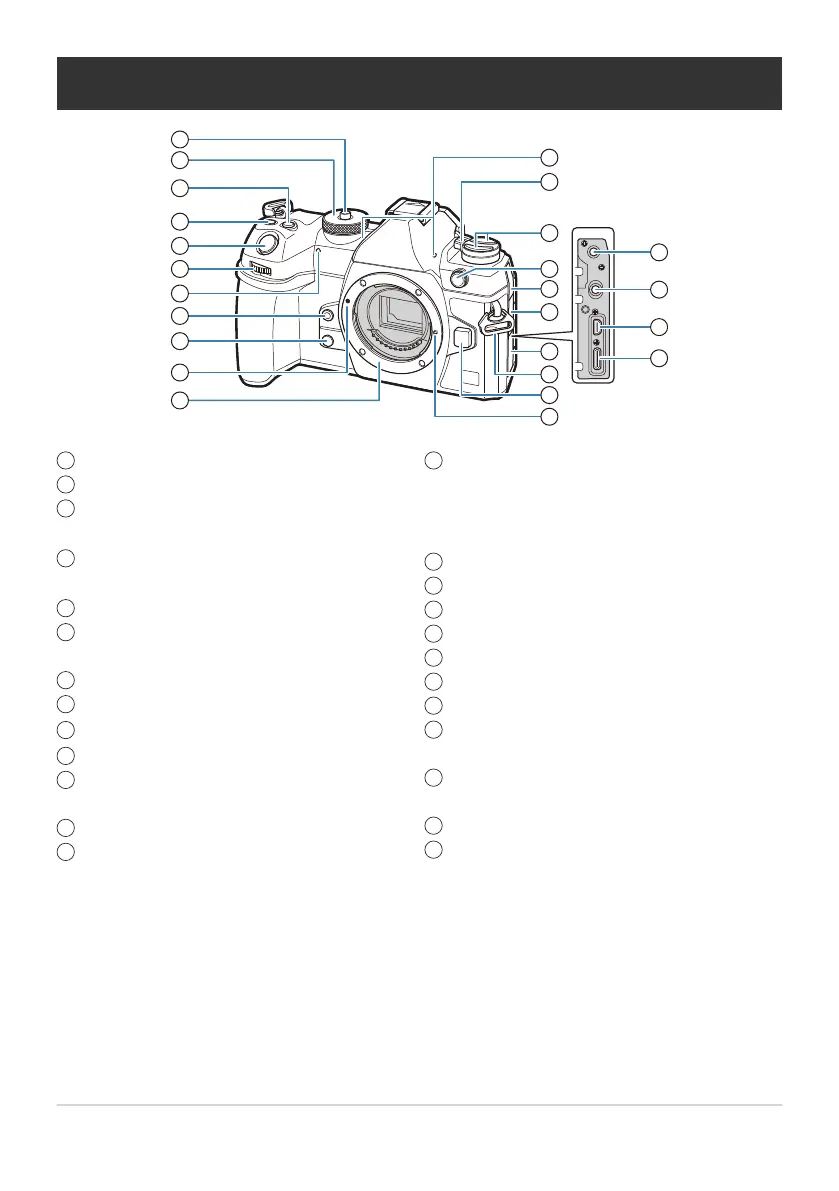

OM SYSTEM OM-1 Mark II - Names of Parts

Mode dial lock (P.51)
Mode dial (P.51)
F (Exposure Compensation) button (P.58,
P.61, P.63, P.67, P.152)
R (Movie)/M (High Res Shot)/4 (selection)
button (P.78 / P.239 / P.314)
Shutter button (P.51)
Front dial (P.58, P.61, P.63, P.65, P.97, P.294,
P.328, P.347, P.350)
Self-timer lamp/AF illuminator (P.190 / P.134)
V (One-touch White Balance) button (P.231)
W (Preview) button (P.360)
Lens attachment mark (P.36)
Mount (Remove the body cap before attaching
the lens.)
Stereo microphone (P.281, P.318)
ON/OFF lever (P.39)
1
2
3
4
5
6
7
8
9
10
11
12
13
3 button (P.358)
AFT (AF/metering mode) button (P.159)
gYA (sequential shooting/self-timer/flash)
button (P.179, P.190)
External flash terminal (P.176)
Microphone jack cover
Cover for headphone jack (P.283)
Connector cover
Strap eyelet (P.27)
Lens release button (P.37)
Lens lock pin
Microphone jack (ø3.5mm stereo mini-jack for
third-party microphones) (P.281)
Headphone jack (ø3.5mm stereo mini-jack for
third-party headphones) (P.283)
HDMI connector (Type D) (P.285, P.470)
USB connector (Type C) (P.30, P.32, P.462,
P.464, P.465, P.466, P.468)
14
15
16
17
18
19
20
21
22
23
24
25
Names of parts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
24
25
22
23
19
24
Names of parts
