Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-26
REP 3.5 Side Guide Transmission Belt
Parts List on PL 5.3
Removal
1. Turn off the main power and disconnect the power cord.
2. Undock the BM, TR and SQF (REP 1.0 Undocking BM / TR / SQF).
3. Remove Front and Rear Cover (REP 1.1 Front and Rear Cove).
4. Remove Infeed Cover (REP 1.2 Lower Infeed Cover and Infeeder).
5. Remove the Infeed Module (REP 3.0 Infeed Module).
6. Remove Side Jogger Motor M3
(REP 3.3 BM-M3 Side Jogger Motor & BM-Q12 Side Jogger Motor Sensor).
7. Remove Sensor BM-Q13 (REP 3.4).

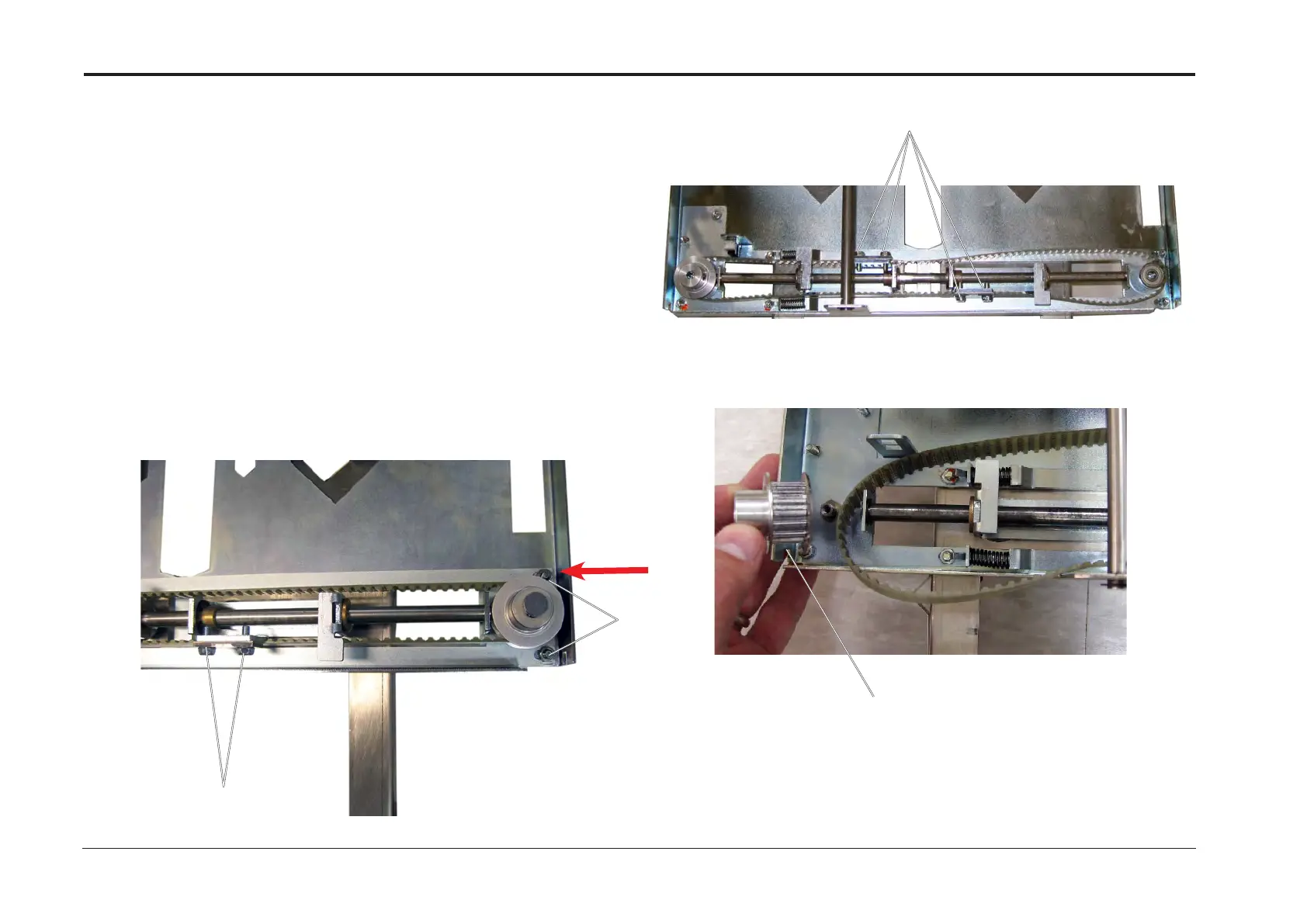

8. Loose Belt tension by loosen the nuts (x2) [A] and
pushing the belt to the left (with a screwdriver) [B].
9. Tighten nuts (x2) [A] and remove screw driver.
10. Loosen screws (x4) [C].
11. Remove Pulley and Belt [D]
[D]
continued on next page
[A]
[B]
[C]
[C]
