Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-160

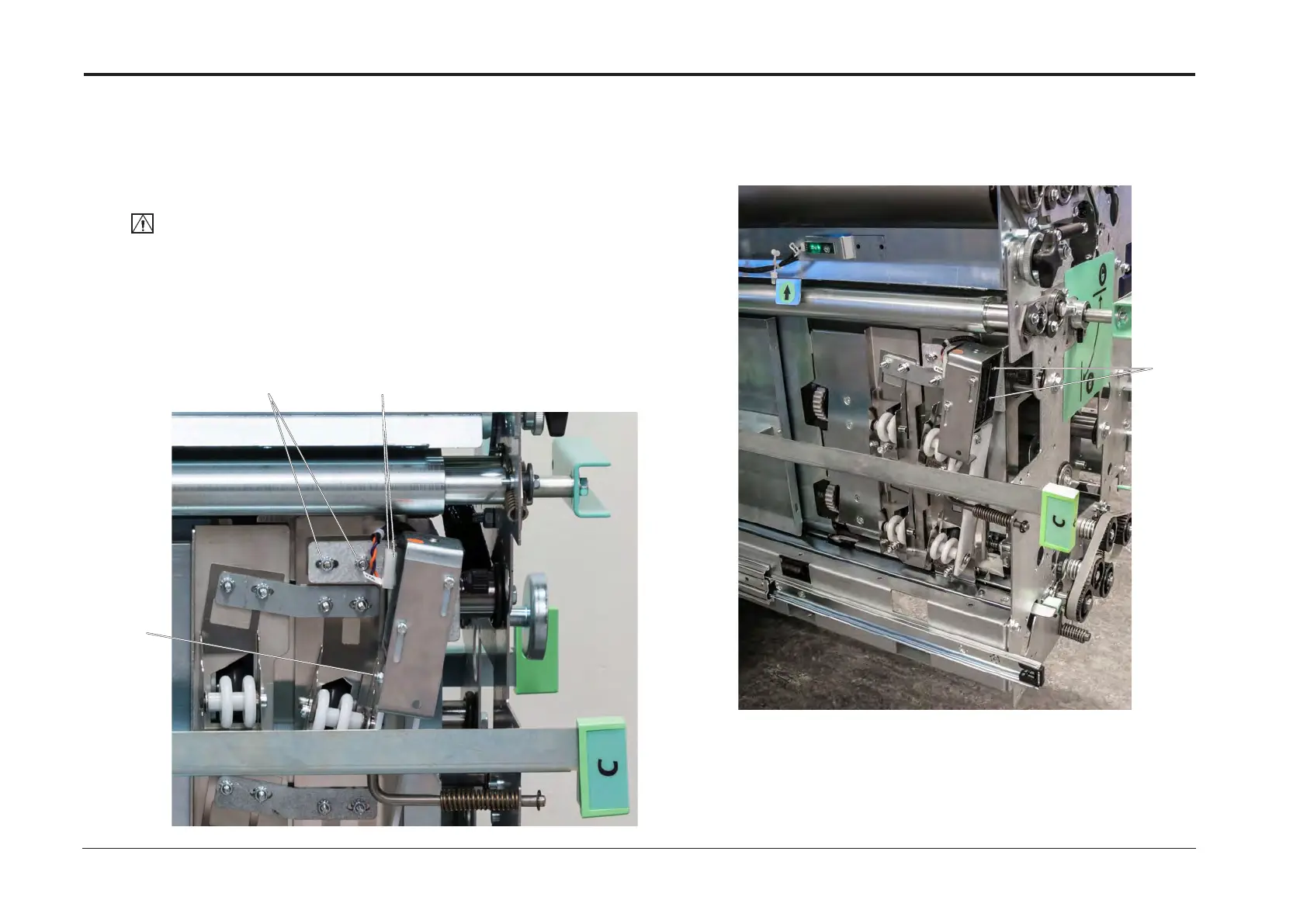

REP 12.47 Registration Disengage Solenoid (CT-SOL5)
Parts List on PL 12.32
Removal
1. Turn off the main power and disconnect the power cord.
2. Unlatch and pull out the Slide.
3. Note position and disconnect the Registration Disengage Solenoid (CT-SOL5) Leads [A].
CAUTION:
The Solenoid connectors must be correctly connected during the replacement procedure.
Refer to Step 1 in the Replacement process.
Failure to re-connect properly might cause Solenoid and PCB to fail.
4. Remove locknut, Washers (x2), Spacers (x4) to detach the Solenoid plunger from the mechanism
linkage [B].
5. Remove nuts (x2) [C] and the Bracket.
6. Remove screws (x4) [D] and the Disengage Solenoid (CT-SOL5) from the Bracket.
Continued on next page.
[D]
[A]
[B]
[C]
