Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-269
[H]
[I]

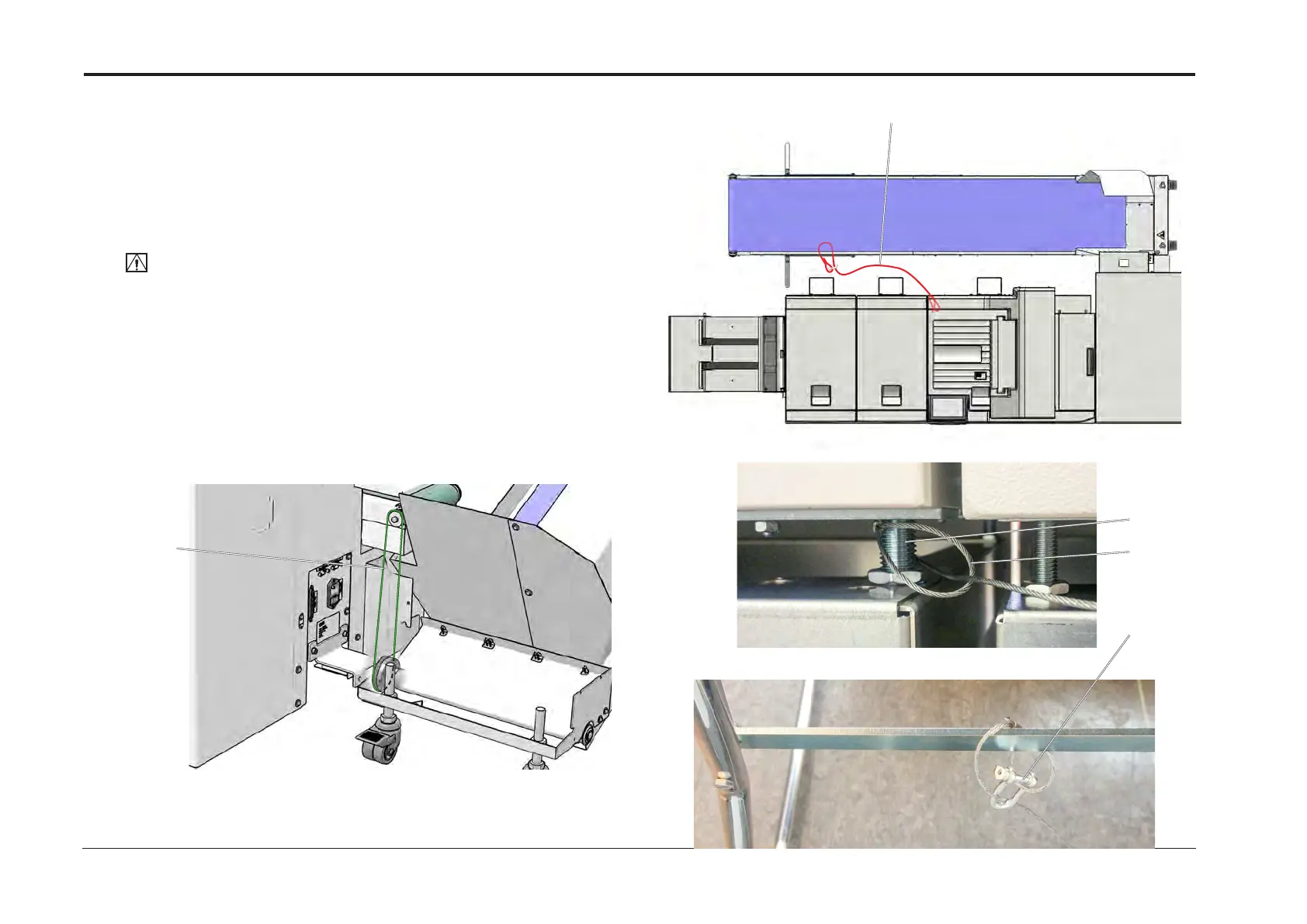

Replacement
1 Reverse the removal procedure.
2. Ensure that the Trim Waste Conveyor is parallel to the Booklet Maker and lock the cast-
ers.
3. Hook up the O-ring [C] on the pulleys and ensure it is twisted the right way to make the
Belt go in the desired transport direction.
WARNING:
To prevent the Waste Conveyor from falling over, a safety wire [F] must be installed
between the Conveyor support and the Booklet Maker. Use the height adjustment
between the Booklet Maker on the exit side and the base as an anchor point.
4. Make a noose [H] around the height adjustment spindle [I].
5. Attach the other end of the Safety Wire around the Conveyour Support with a shackle
[E] Tighten the schackle rmly with a pair of pliers or an adjustable spanner.
REP 16.2 Docking/Undocking TWC, continues
[C]
[F]
[E]
To Next Page
