Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-14
REP 1.2 Lower Infeed Cover and Infeeder
Parts List on PL 2.0
Removal Lower Infeed Cover
1. Turn off the main power and disconnect the power cord.
2. Undock the Booklet Maker and Trimmer/Square Folder
(REP 1.0 Undocking BM / TR / SQF).
3. Remove Front and Rear Cover (REP 1.1 Front and Rear Cover).

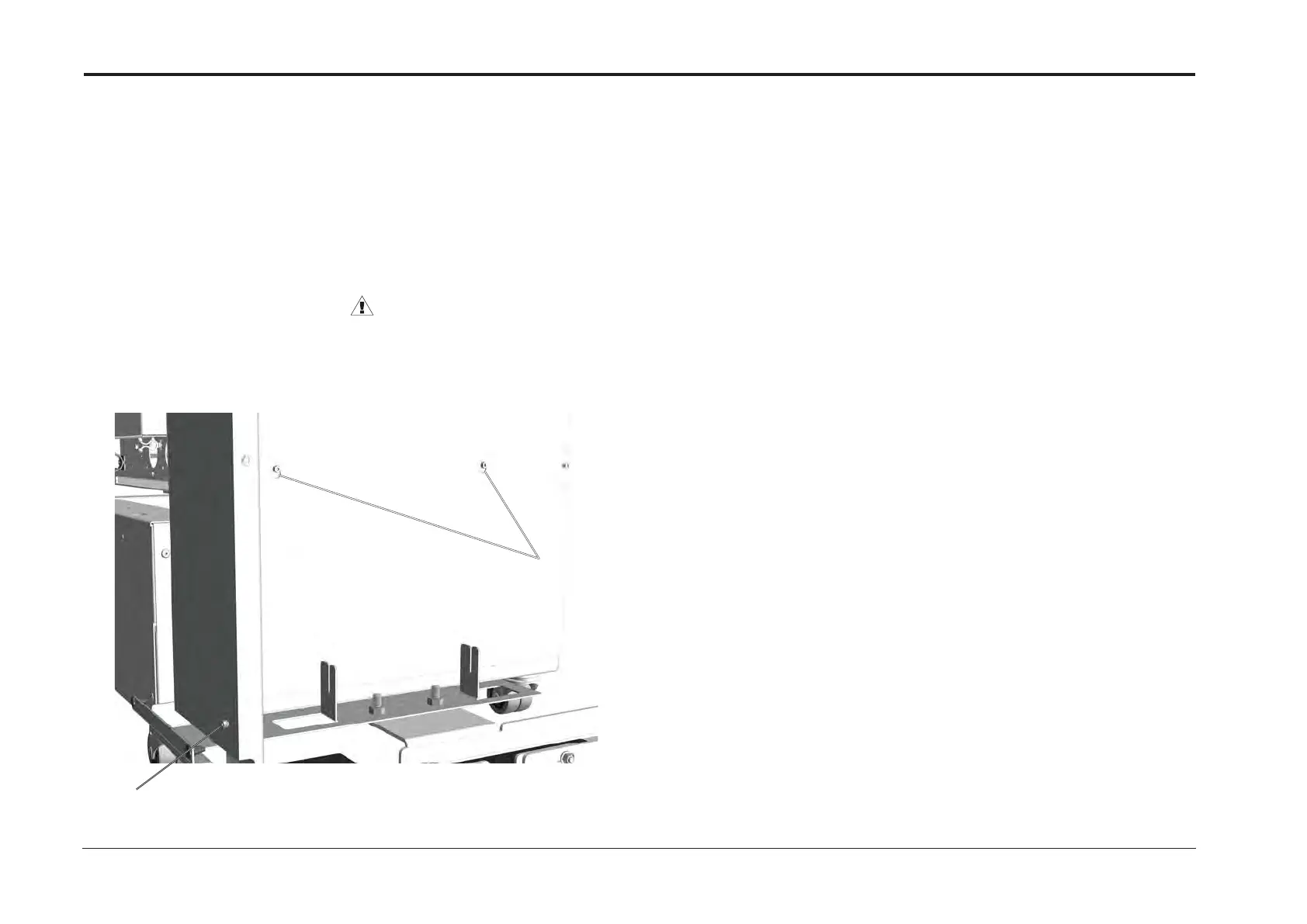

4. Loosen screws (x2) [A] .
5. Remove screws (2x) [B]
6. Lift up and remove the Lower Infeed Cover WARNING:
Lower Infeed Cover is very heavy and could cause injury if it falls down.
[A]
[B]
continued on next page
Replacement
1. Reverse removal procedure.
To Next Page
