Plockmatic BM500 - REP 13.10 Slide Drive Shaft Transportation

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-179

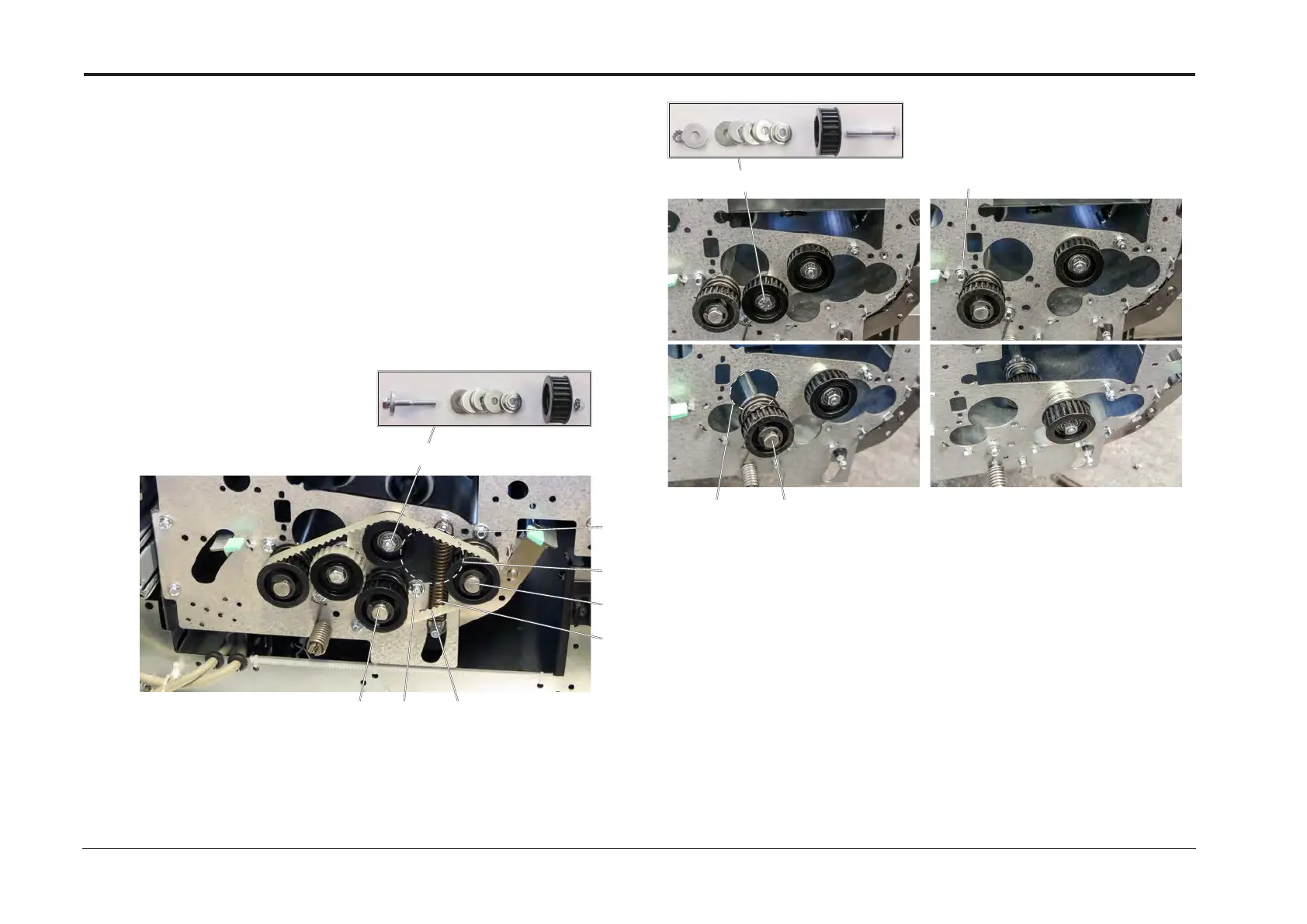

REP 13.10 Slide Drive Shaft Transportation
Replacement
1. Reverse removal procedure.
2. Tension the Timing Belt so that there is no slack and tighten idler pulley screw [A]. In order
to make sure the belt is in correct position, turn pulleys so that the belt will rotate two
revolutions. If necessary, tension the belt so that there is no slack.
[A]
[K][L]
[B]
[C]
[E]
[F]
[G][H]
[D]
[I] [J]
Parts List on PL 12.26
Removal
1. Turn off the main power and disconnect the power cord.
2. Loosen idler pulley screw [A] to relieve tension in belt [B] and remove timing belt.
3. Remove spring [C].
4. Remove screw [D].
5. Remove Slide Drive Shaft Transportation [E] through the larger cut-out [F] in slide frame.
6. Remove screw [G].
7. Remove Slide Drive Shaft Transportation [H] through the larger cut-out [F] in slide frame.
8. Remove timing pulley [I]. Note position of washers and spacers. One washer is located
inside the slide frame. Four washers and a spacer on the outside of the slide frame.
9. Remove screw [J].
10. Move Slide Drive Shaft Transportation [K] slightly to the front to release bearing from
slide front frame. Move [K] up to larger cut-out [L] to clear registration solenoid trig
sensor CT-Q10. Continue moving [K] to the front until the rear end of the shaft clears the
cut-out in the slide rear frame. Position the rear end of [K] into the cut-out in the slide
rear frame that corresponds to cut out [F]. Remove the Slide Drive Shaft Transportation
[K] through the larger cut-out [F] in slide frame.
