Plockmatic BM500 - REP 4.6 BM-Q42 Home Position Stop Gate Stapler (M22) Sensor

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-41
Parts List on PL 5.0
Removal
1. Follow REP 4.5 BM-Q41 Stop Gate (M22) Motor Sensor,, step 1-8.

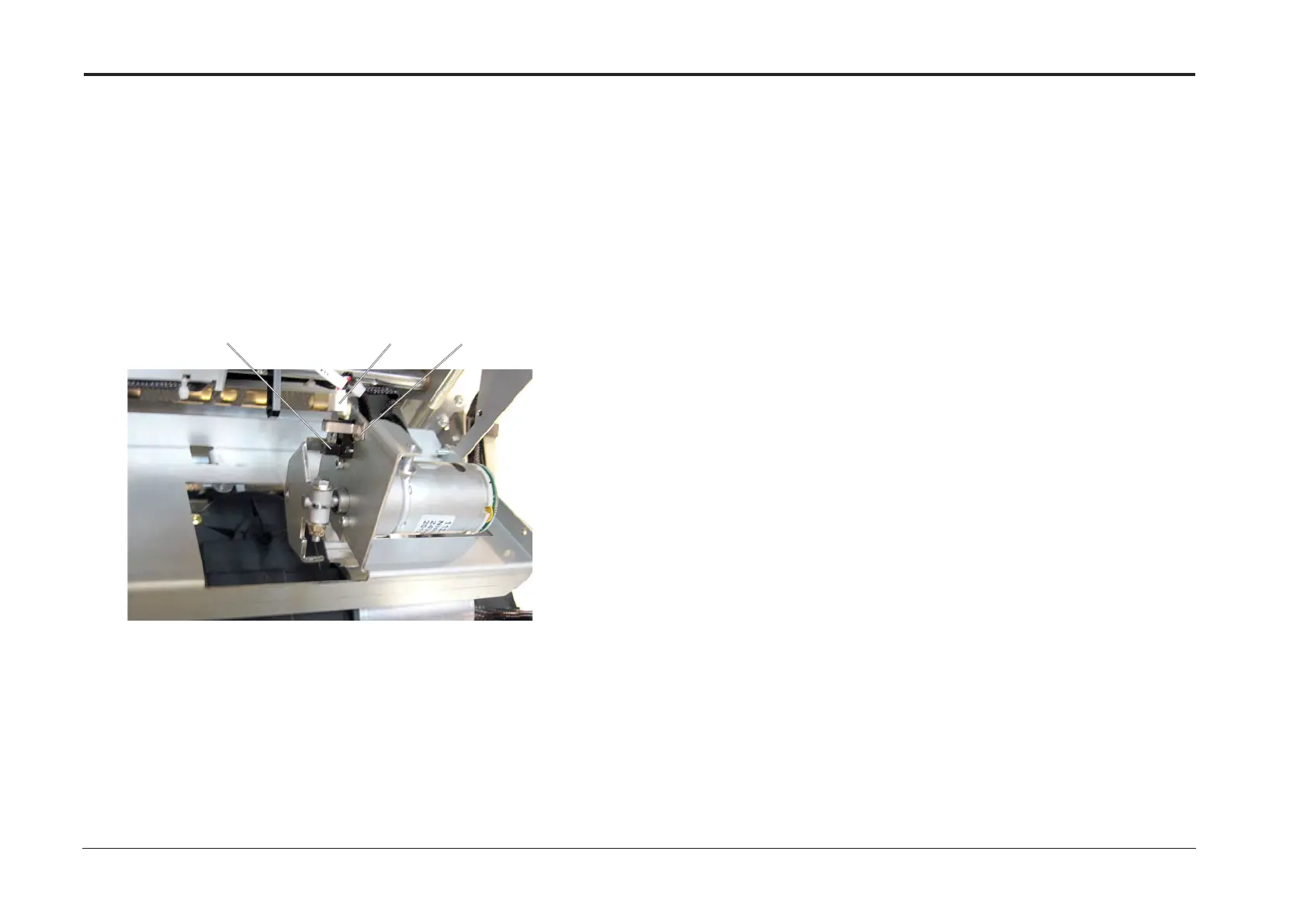

2. Loosen screw (x1) [A].
3. Disconnect connector (x1] [B].
4. Remove sensor BM-Q42 [C].
REP 4.6 BM-Q42 Home Position Stop Gate Stapler (M22) sensor
Replacement
1. Reverse Removal procedure.
[A][B][C]
