Plockmatic BM500 system 27 August 2019 6. Detailed Description

6-6

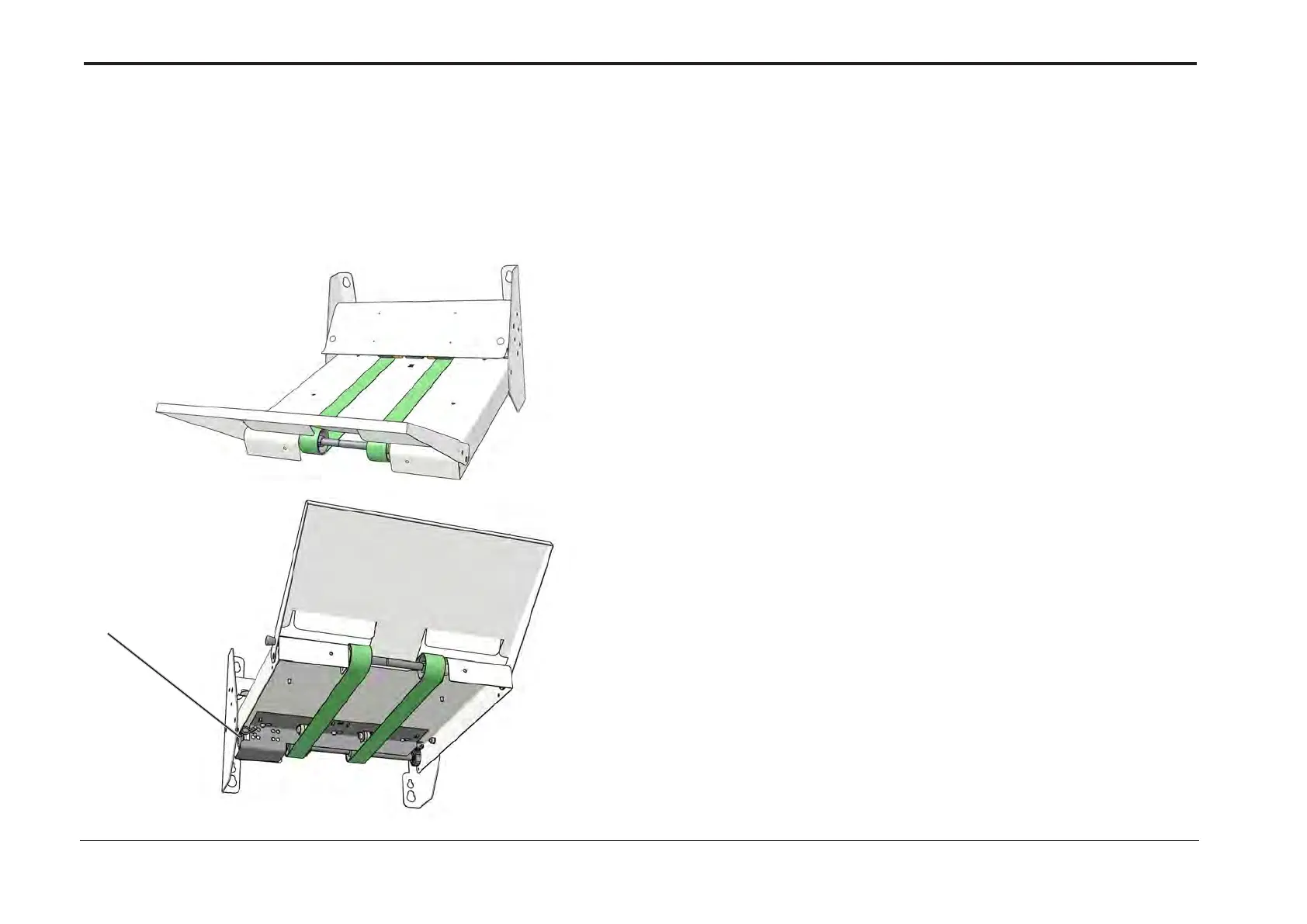

6.2.7 BELT STACKER MODULE

If the Belt Stacker is installed directly on the Booklet Maker

(no Square Folder / Trimmer installed),

the stacker motor ST-M1 starts when the Exit sensor or Q8 activates

and runs ST-M1 for a short while to separate the booklets on the stacker period.

Principle of Operation is same if it is mounted to the TR or the SQF,

Exit sensor activates ST-M1.

ST-M1
