Plockmatic BM500 - AF602;VF602 Installation; Accessory Check

Plockmatic BM3050 system 27 August 2019 1. Installation Procedure
1-26
1.4 AF602/VF602 INSTALLATION
If you don’t have an AF602/VF602, proceed to next section.

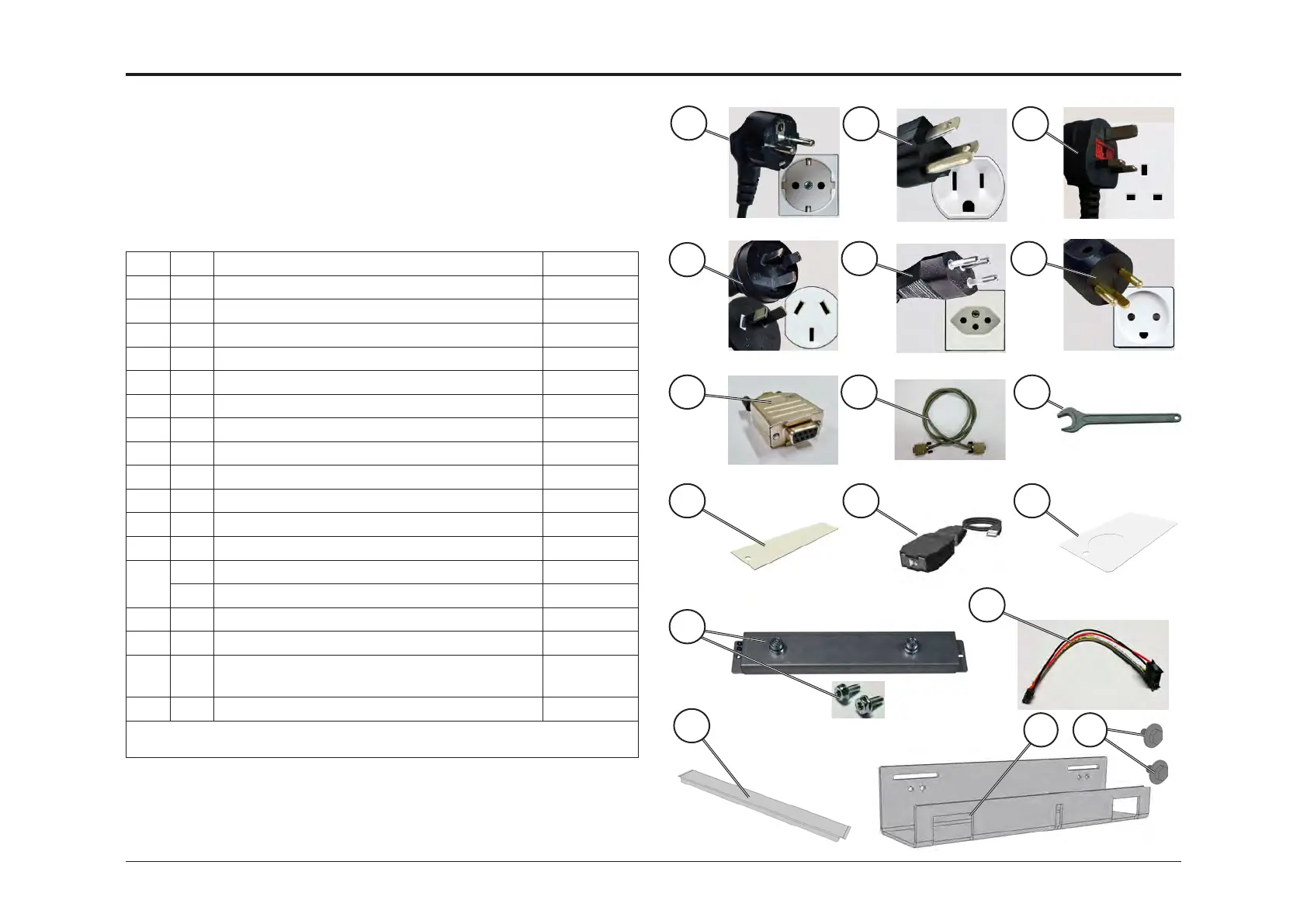

1.4.1 ACCESSORY CHECK
Item Qty Description Part no*
1 1 Power Cord EUR/IEC-C13 4,5m 87156
2 1 Power Cord USA/IEC-C13 AWG18 4,5m 87157
3 1 Power Cord UK/IEC-C13 4,5m 88530
4 1 Power Cord AUS/IEC-C13 4,5m 60122
5 1 Power Cord Switzerland/IEC-C13 4,5m 93464
6 1 Power Cord Denmark/IEC-C13 4,5m 93465
7 1 Termination Plug, Female 140226
8 1 Communication Cable CAN 1,6m 450239
9 1 Spanner 24mm 95196
10 1 DSD Calibration Strip 76329
11 1 USB to STM32F Dongle 960-108436
12 1 US DSD Calibration Strip 125-108536
13 1 Docking bracket 125-107845
2 Screw M4x10 99471
14 1 Software Loading Adapter 16p to 8p 960-110000
15 4 Wide paper support 131-110182
16 1 Female Docking Bracket
(for docking to BM)
122-109998
17 2 Screws M6S M6x12 washer o18x1,6 99400
*Part numbers are subject to change.
For part number information, see AF602/VF602 Parts Catalog
2 3
65
1
4
7 8 9
10
13
11 12
14
15
16 17
