Plockmatic BM500 - REP 12.48 Registration Disengage Solenoid (SOL5) Linkage

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-161
REP 12.47 Registration Disengage Solenoid (CT-SOL5),
continued
REP 12.48 Registration Disengage Solenoid (SOL5)
Linkage
Parts List on PL 12.32
Removal
1. 1. Turn off the main power and disconnect the power cord.
2. Unlatch and pull out the Slide.
3. Remove the Registration Disengage Solenoid (CT-SOL5)
(REP 12.47 Registration Disengage Solenoid (CT-SOL5).
4. Remove screws (x2), Washers (x4), Spacers (x4) [A] and remove the Linkage [B] from
the Idler Rollers [C].
Replacement
1. Reverse removal procedure.

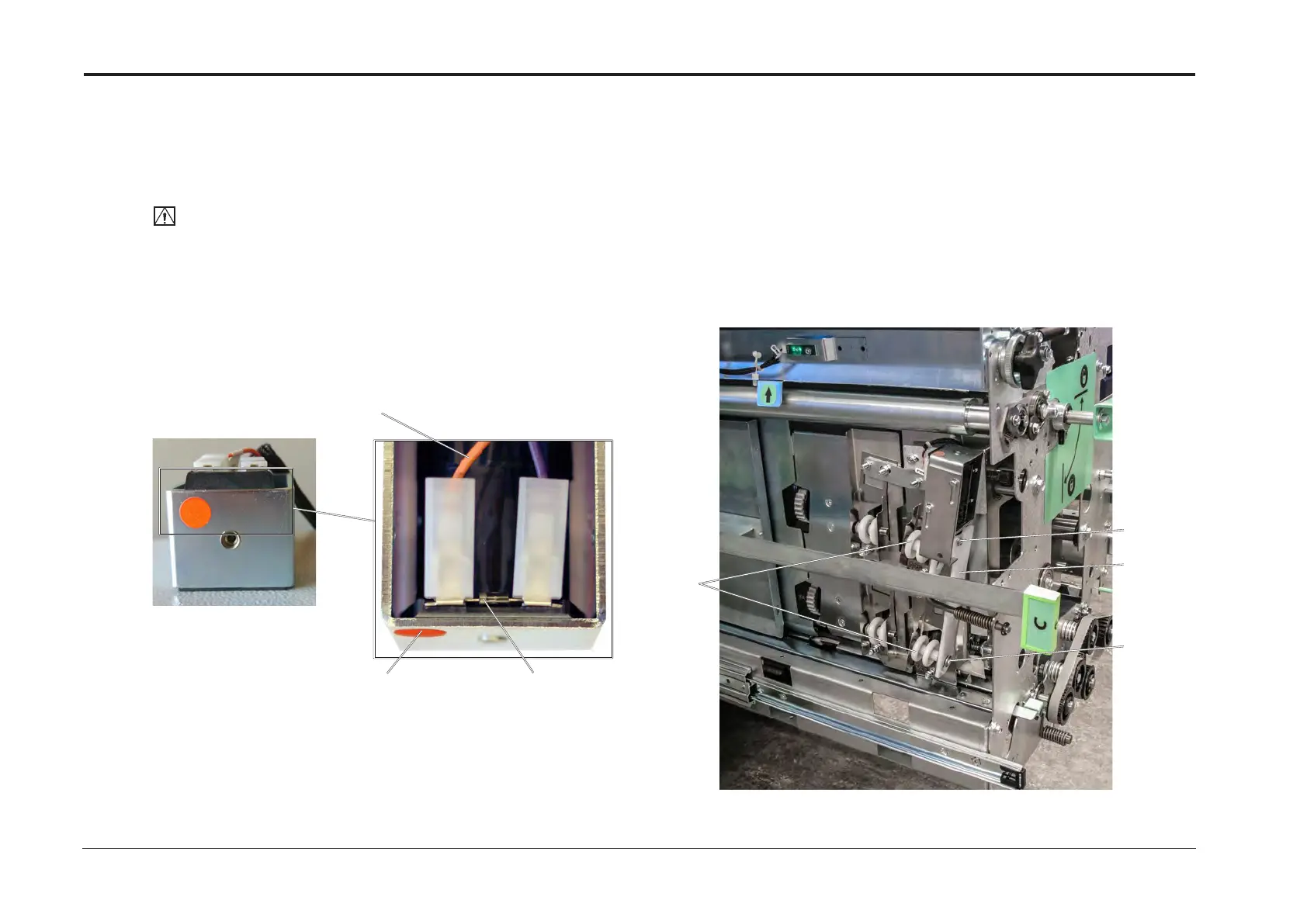

CAUTION:
Ensure that Orange lead is connected to terminal marked with orange dot.
2. Perform ADJ 12.50 Registration Disengage Solenoid (CT-SOL5).
Replacement
1. Reverse removal procedure.
Ensure the orange connector is
mounted on the indicated side.
Same side as line on the Diode.
Indicated side
orange connector
Line on Diode
[C]
[B]
[A]
[A]
