REP 12.40 Registration M4 Home Sensor (CT-Q3)
Parts List on PL 12.21
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Rear Cover (REP 12.0 Front and rear cover).
3. Unlatch and pull out the Slide.
4. Disconnect connector [A].
5. Remove screws and lock nuts (x2) [B].
6. Remove Registration M4 Home Sensor (CT-Q3).
Replacement
1. Reverse removal procedure (ADJ 12.43 Registration M4 Home Sensor (CT-Q3).

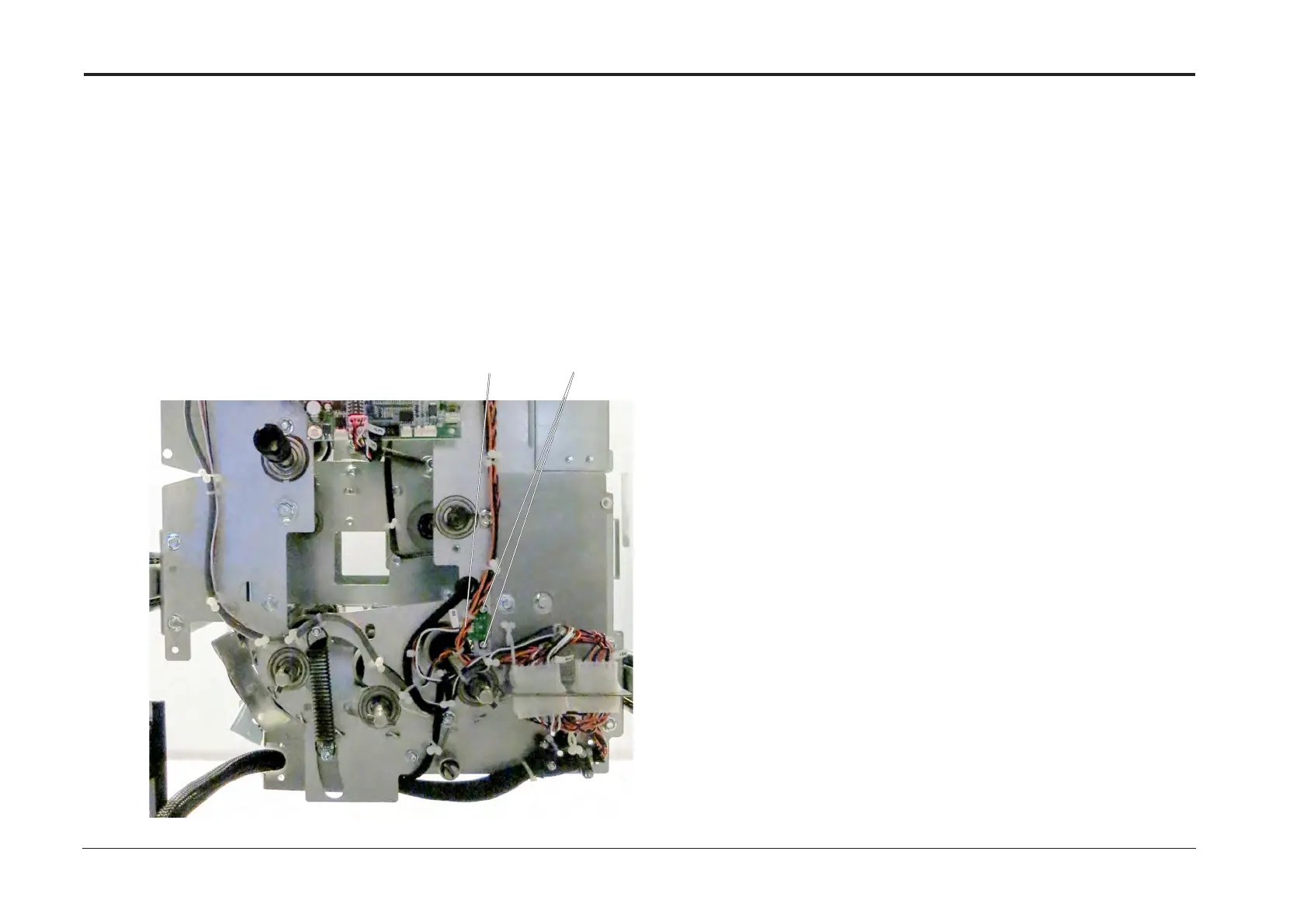

[B][A]
