Plockmatic BM500 - REP 12.33 Rotator Disengage Solenoid (CT-SOL2) Mechanism

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-149

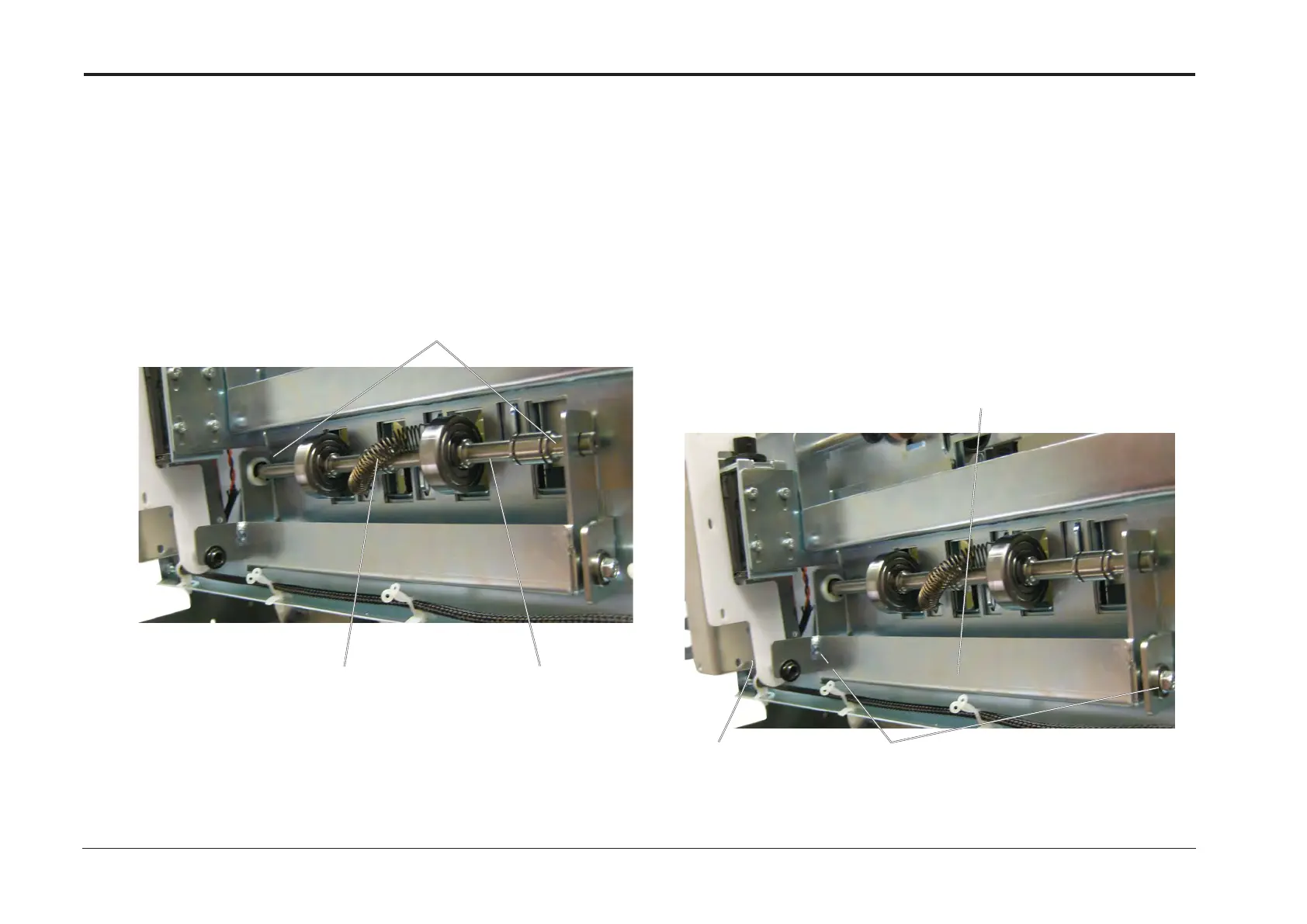

REP 12.32 Rotator Disengage Solenoid (CT-SOL2) Idler
Shaft
Parts List on PL 12.28
Removal
1. Turn off the main power and disconnect the power cord.
2. Unlatch and pull out the Slide.
3. Remove tension spring [A].
4. Remove E-clip (2) [B].
5. Remove Rotator Disengage Solenoid (CT-SOL2) Idler Shaft [C].
Replacement
1. Reverse removal procedure.
REP 12.33 Rotator Disengage Solenoid (CT-SOL2)
Mechanism
Parts List on PL 12.28
Removal
1. Turn off the main power and disconnect the power cord.
2. Unlatch and pull out the Slide.
3. Remove Rotator Disengage Solenoid (CT-SOL2) Idler Shaft
(REP 12.32 Rotator Disengage Solenoid (CT-SOL2) Idler Shaft).
4. Remove screw to release solenoid linkage [A].
5. Remove screws (x2) [B].
Note position of shims between ball bearing and press nuts.
6. Remove Rotator Disengage Solenoid (CT-SOL2) Mechanism [C].
Replacement
1. Reverse removal procedure.
[A]
[B]
[C]
[B]
[C]
[A]
