Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-178

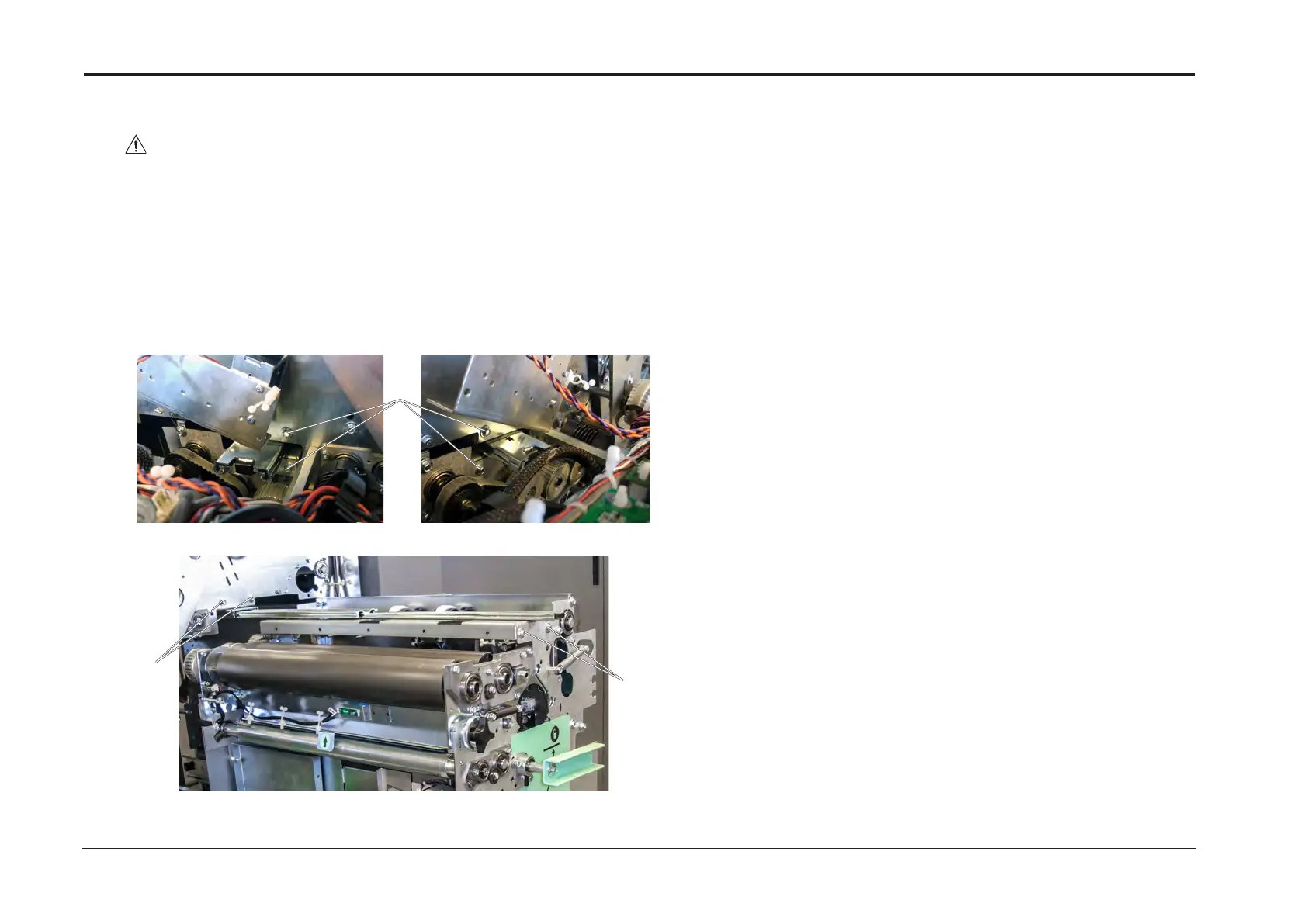

REP 13.9 Slide Guide
Parts List on PL 12.21
CAUTION:
Ensure that Idler Roller and Fixing Roller do not slide out from the frame supports
and are dropped down. If one or both ends of these shafts is unsupported,
damage to the frame is likely to occur.
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Rear and Front Cover (REP 12.0 Front and rear cover).
3. Remove Slide Guide screws on non-operator side (x4) [A].
4. Unlatch and pull out the Slide.
5. Remove screws (x4) [B], pull out the slide.
6. Remove the Slide Guide.
Replacement
1. Reverse removal procedure.
[A]
[B]
[B]
PCB mounting plate folded down for clarity
Intentionally blank
