Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-274
REP 16.11 Idler Roller
Parts List on PL 15.2
Removal
1. Turn off the main power and disconnect the Power Cord.

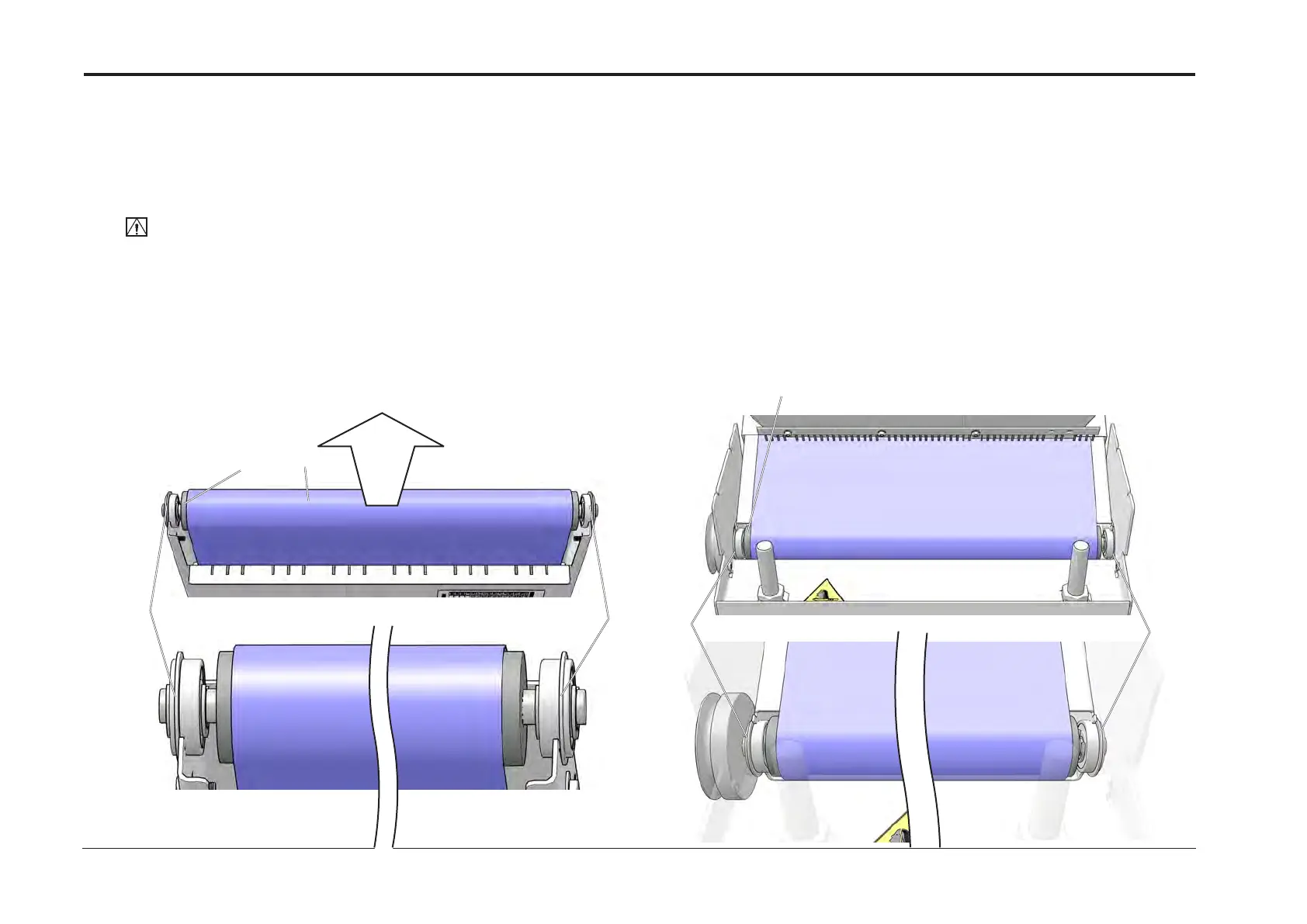

2. Pull the Idler Roller [A] out of the upper frame by tensioning the Conveyor Belt [B].
WARNING:
Belt tension is strong. Beware not to pinch ngers or hands between the Idler roller
and the Upper Frame while removing/installing the Idler Roller.
3. Remove the Idler Roller.
Replacement
1 Reverse the removal procedure.
NOTE
Ensure that the clips [C] on the bearings are on the outside of the Upper Frame.
REP 16.12 Drive Shaft
Parts List on PL 15.2
Removal
1. Undock the TWC from the RCT (REP 15.0).
2. Remove the Cable Protection (REP 15.1).
3. Remove the Idler Roller (REP 15.9).
4. To facilitate removal of the Drive Shaft, remove the Belt Protection (REP 15.2).
5. Remove the Drive Shaft [A].
Replacement
1 Reverse the removal procedure.
NOTE
Ensure that the clips [B] on the bearings are on the outside of the Lower Frame.
[C]
[A] [B]
[A]
[C]
[B]
[B]

Plockmatic BM500 Specifications

General

Max Booklet Size	A4
Max Paper Weight	300 gsm
Min Paper Weight	60 gsm
Book Thickness	Up to 5 mm
Speed	500 booklets/hour
Maximum Number of Sheets	25 sheets
Maximum Number of Pages	100 pages
Stitching Positions	2
