Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-27
Replacement
1. Reverse removal procedure.

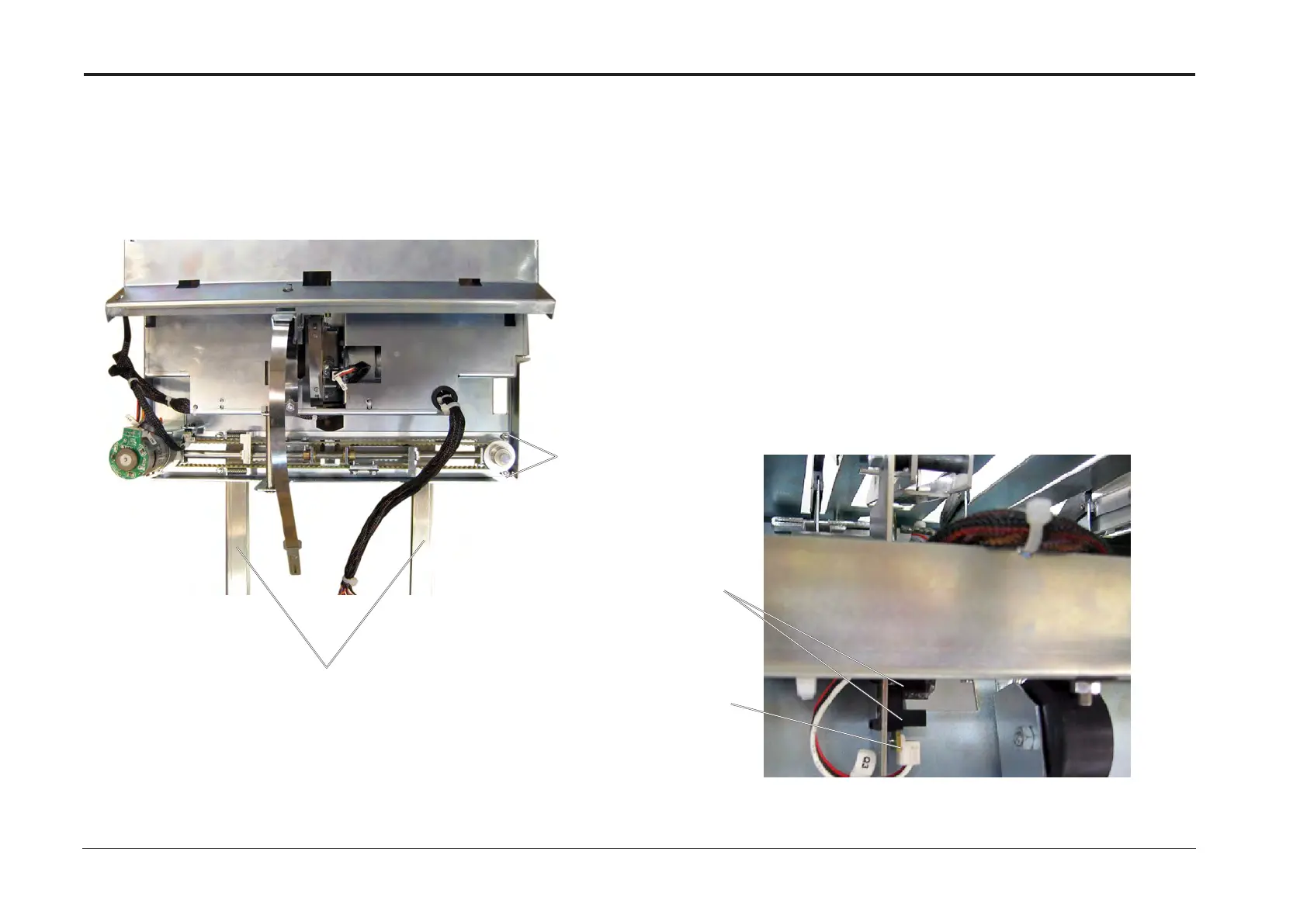

2. Loosen nuts (x2) [A] and let springs tension the belt.
3. Ensure the Side guides are centered [B].
Parts List on PL 5.2
Removal BM-Q3 Back Jogger Home Position Sensor
1. Turn off the main power and disconnect the power cord.
2. Undock the Booklet Maker and Trimmer (REP 1.0 Undocking BM / TR / SQF).
3. Remove Front and Rear Cover (REP 1.1 Front and Rear Cove).
NOTE:
It is possible to reach in and remove the Sensor at this point (refer to below Figure).
If you are unable to access the sensor at this point, follow the rest of the procedure.
4. Remove Infeed Cover (REP 1.2 Lower Infeed Cover and Infeeder).
NOTE:
It is not necessary to remove Infeed module to replace Sensor BM-Q3.
5. Disconnect connector [A] to Sensor BM-Q3 (x1).
6. Remove sensor by pinching the plastic locks in the back [B].
REP 3.6 Back Jogger Module &
BM-Q3 Back Jogger Home Position Sensor
[A]
[B]
Replacement Sensor Q3
1. Reverse removal procedure.
[A]
[B]
