Plockmatic BM500 - REP 12.26 Rotator Sensor (CT-Q2); REP 12.27 Rotator Timing Belt

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-145

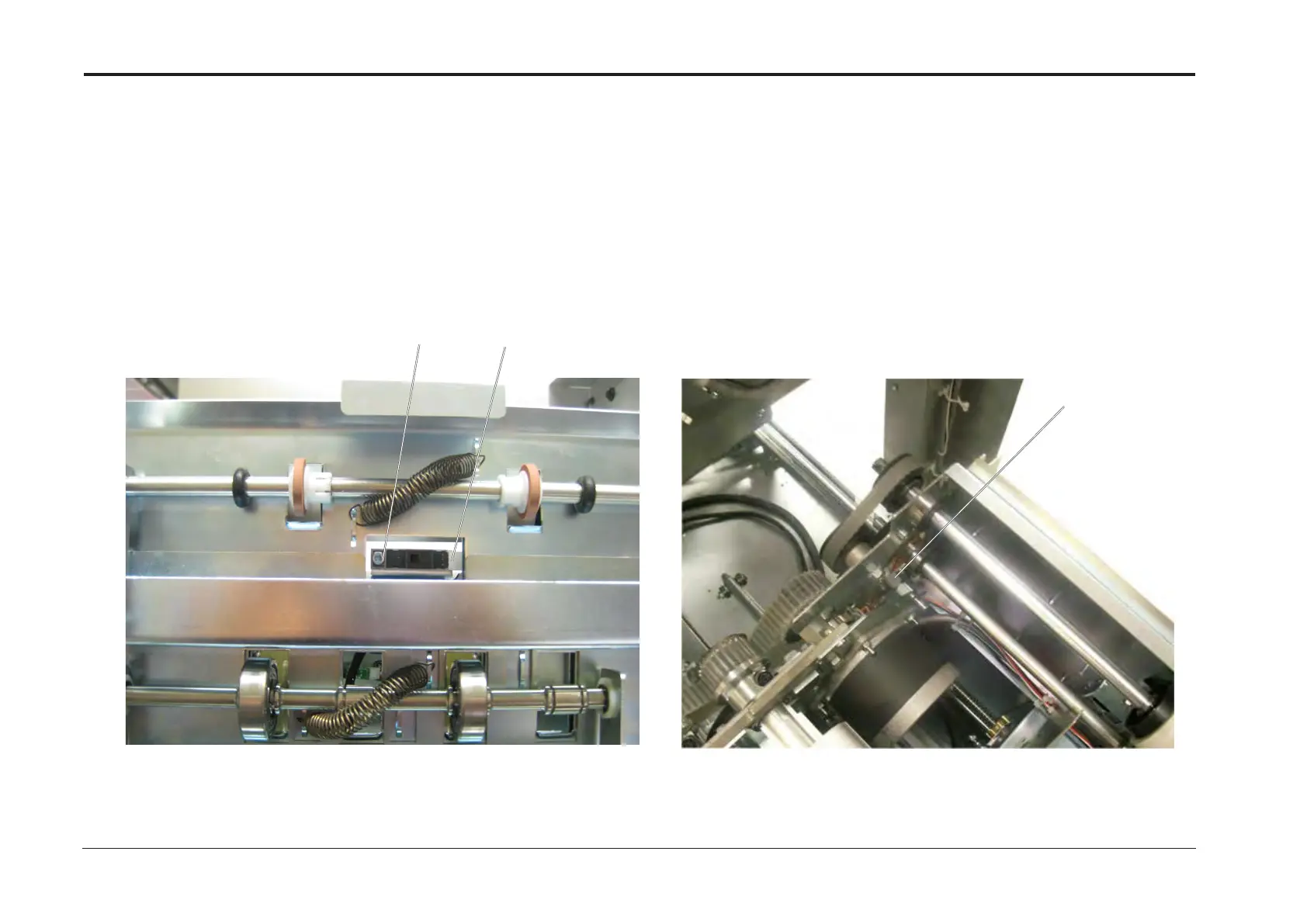

REP 12.26 Rotator Sensor (CT-Q2)
Parts List on PL 12.28
Removal
1. Turn off the main power and disconnect the power cord.
2. Unlatch and pull out the Slide.
3. Remove screw [A].
4. Disconnect connector [B].
5. Remove Rotator Sensor (CT-Q2).
Replacement
1. Reverse removal procedure.
REP 12.27 Rotator Timing Belt
Parts List on PL 12.29
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Front and Rear Cover (REP 12.0 Front and rear cover).
3. Unlatch and pull out the Slide.
4. Remove the upper slide guide (REP 13.9 Slide guide).
5. Loosen Timing Belt tension by loosening the idler pulley screw [A].
6. Remove Rotator Timing Belt.
Replacement
1. Reverse removal procedure.
[A] [B]
[A]
