Plockmatic BM500 - REP 15.39 Power Supply SP-240-24 (PSU2) 24 Vdc; REP 15.40 Power Supply SP-750-27 (PSU3) 24 Vdc (48 V)

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-263
WARNING!
Turn off the AF602 Main Power Switch and disconnect the Main Power Cord before
disconnecting, removing or replacing any electrical components or measuring resistance
inside the machine.
WARNING!
Turn off the AF602 Main Power Switch and disconnect the Main Power Cord before
disconnecting, removing or replacing any electrical components or measuring resistance
inside the machine.
1. Remove Cover, Rear (REP 15.0)
2. Disconnect wires
3. Loosen screws (x2) on backside of PSU and remove PSU
1. Remove Cover, Rear (REP 15.0)
2. Disconnect wires
3. Remove diodes
4. Loosen screws (x2) on backside of PSU and remove PSU
Replacement
Reverse removal procedure.
Check voltage levels by performing applicable part of RAP018 12/24/48V Low
or High (section 4)
Replacement
Reverse removal procedure.
Check voltage levels by performing applicable part of RAP018 12/24/48V Low
or High (section 4)
Top
Bottom
(VF602 Spare Parts Manual, PL6.0 Item 9)
(VF602 Spare Parts Manual, PL6.0 Item 14)

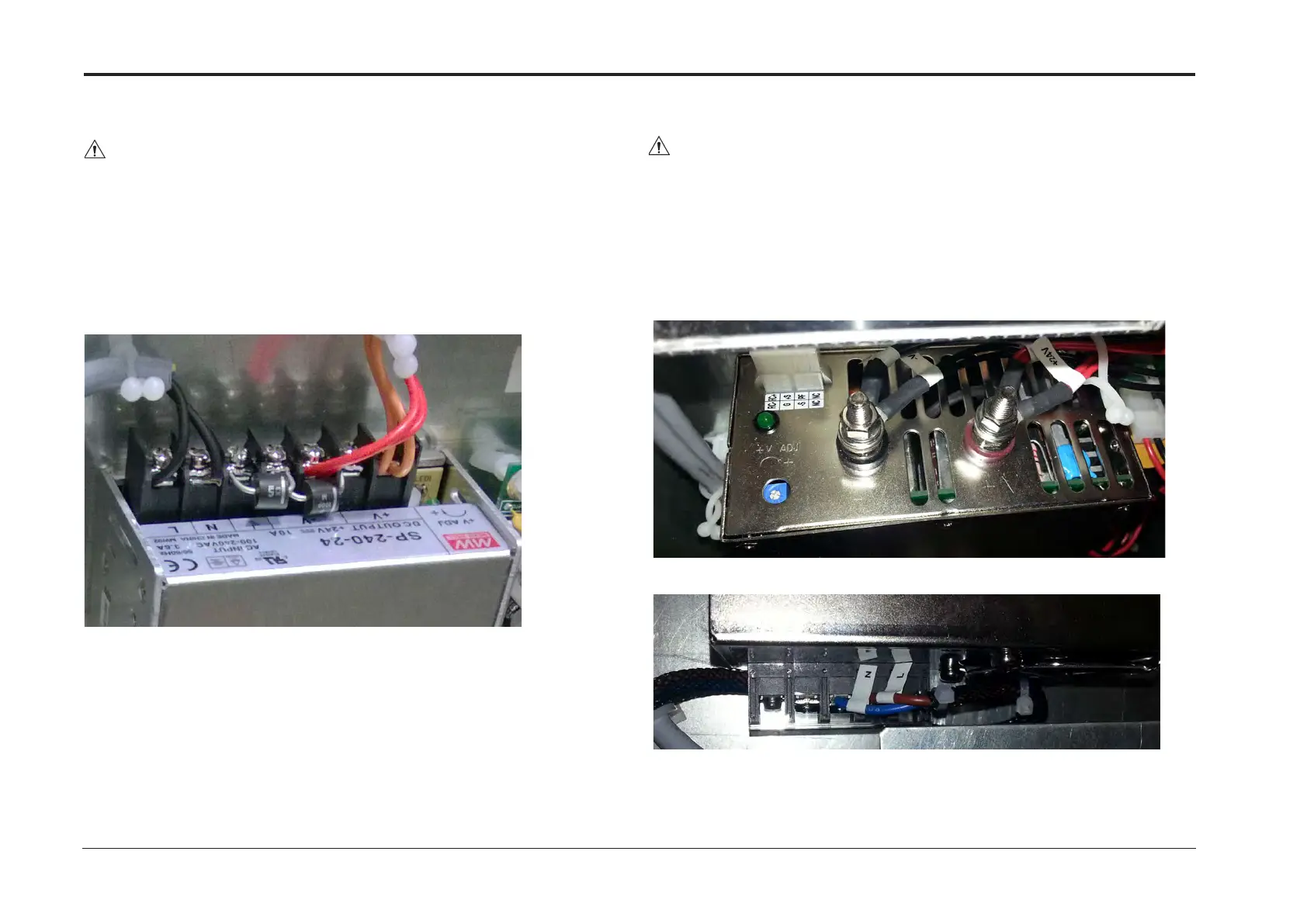

REP 15.39 Power Supply SP-240-24 (PSU2) 24Vdc
REP 15.40 Power Supply SP-750-27 (PSU3) 24Vdc (48V)
