Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-141

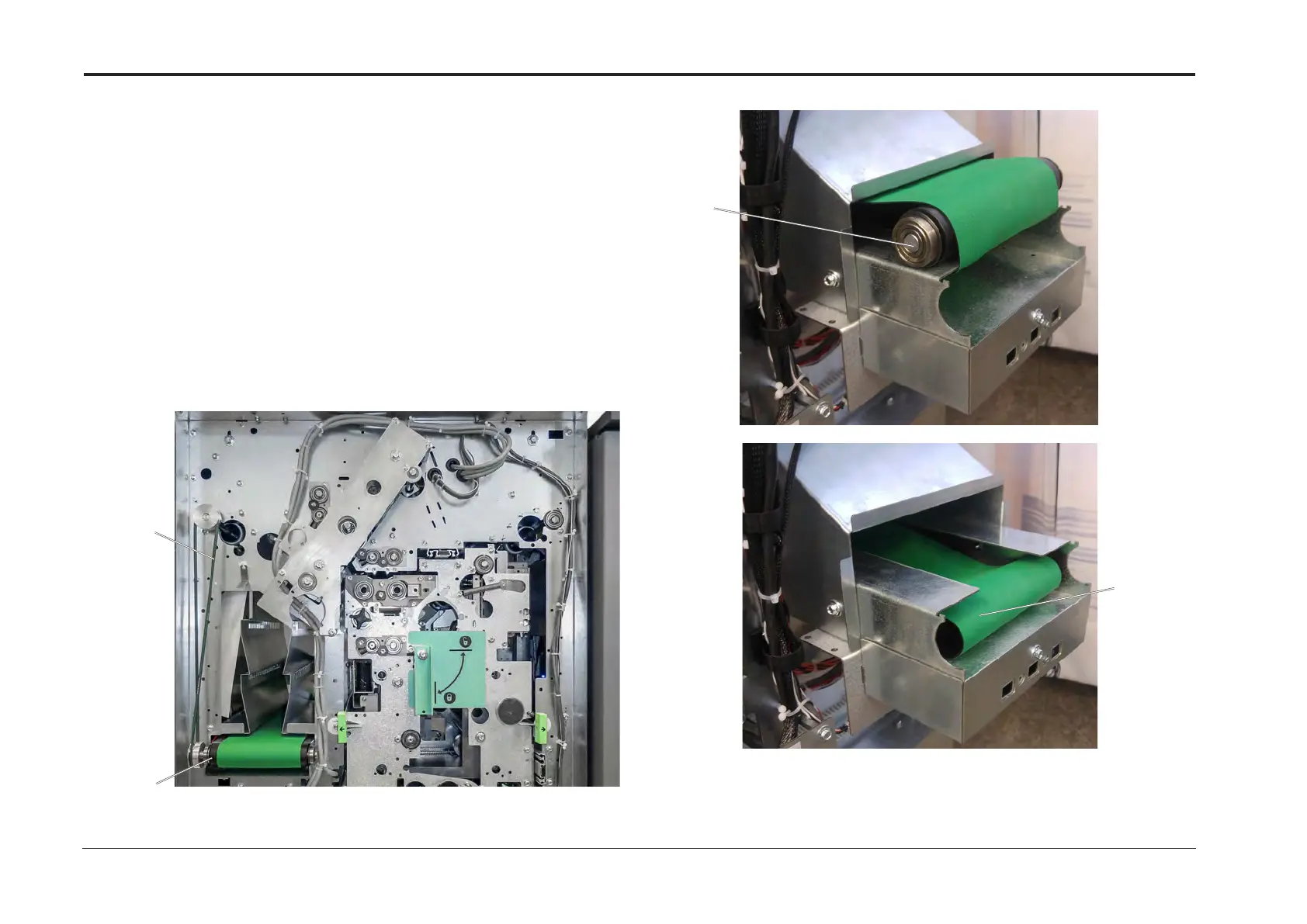

REP 12.22 Waste Transport Belt
Parts List on PL 12.14
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Front and Rear Cover REP 12.0 Front and rear cover).
NOTE:
Observe how the O-ring is twisted before removal.
Failure to do so may result in wrong transport direction.
3. Remove the O-ring [A].
4. Remove the Drive Shaft [B] by pulling out and up.
5. On the rear side, remove the indler Shaft [C].
6. Remove the Waste Transport Belt [D].
[A]
[B]
Replacement
1. Reverse removal procedure.
[C]
[D]

Plockmatic BM500 Specifications

General

Max Booklet Size	A4
Max Paper Weight	300 gsm
Min Paper Weight	60 gsm
Book Thickness	Up to 5 mm
Speed	500 booklets/hour
Maximum Number of Sheets	25 sheets
Maximum Number of Pages	100 pages
Stitching Positions	2
