Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-162

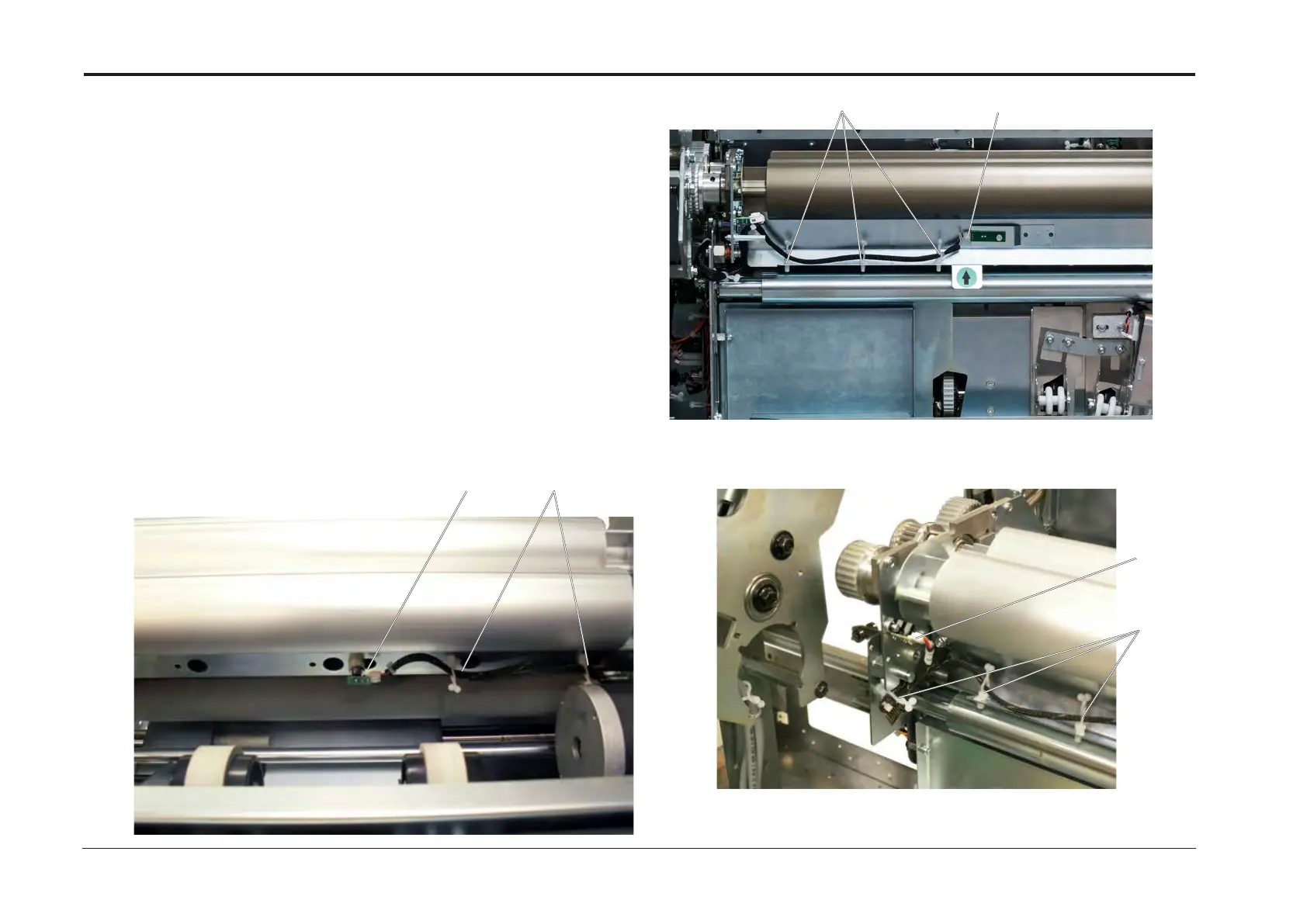

REP 12.49 Creaser Assembly
Parts List on PL 12.33
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Front Cover (REP 12.0 Front and rear cover).
3. Unlatch and pull out the Slide.
4. Remove the upper slide guide (REP 13.9 Slide guide).
5. Disconnect Creaser Trigger Sensor (CT-Q4) LED [A].
6. Open cable holders (x3) and free harness [B].
7. Disconnect Creaser Trigger Sensor (CT-Q4) Photo Transistor [C].
8. Open cable holders (x3) and free harness [D].
9. Disconnect sensor [E].
10. Open cable holders (x3) and free harness [F].
[A] [B]
[E]
[F]
Continued on next page.
[C]
[D]

Plockmatic BM500 Specifications

General

Max Booklet Size	A4
Max Paper Weight	300 gsm
Min Paper Weight	60 gsm
Book Thickness	Up to 5 mm
Speed	500 booklets/hour
Maximum Number of Sheets	25 sheets
Maximum Number of Pages	100 pages
Stitching Positions	2
