Plockmatic BM500 - REP 15.4 Cover, Upper Exit; REP 15.5 Cover, Top

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-237

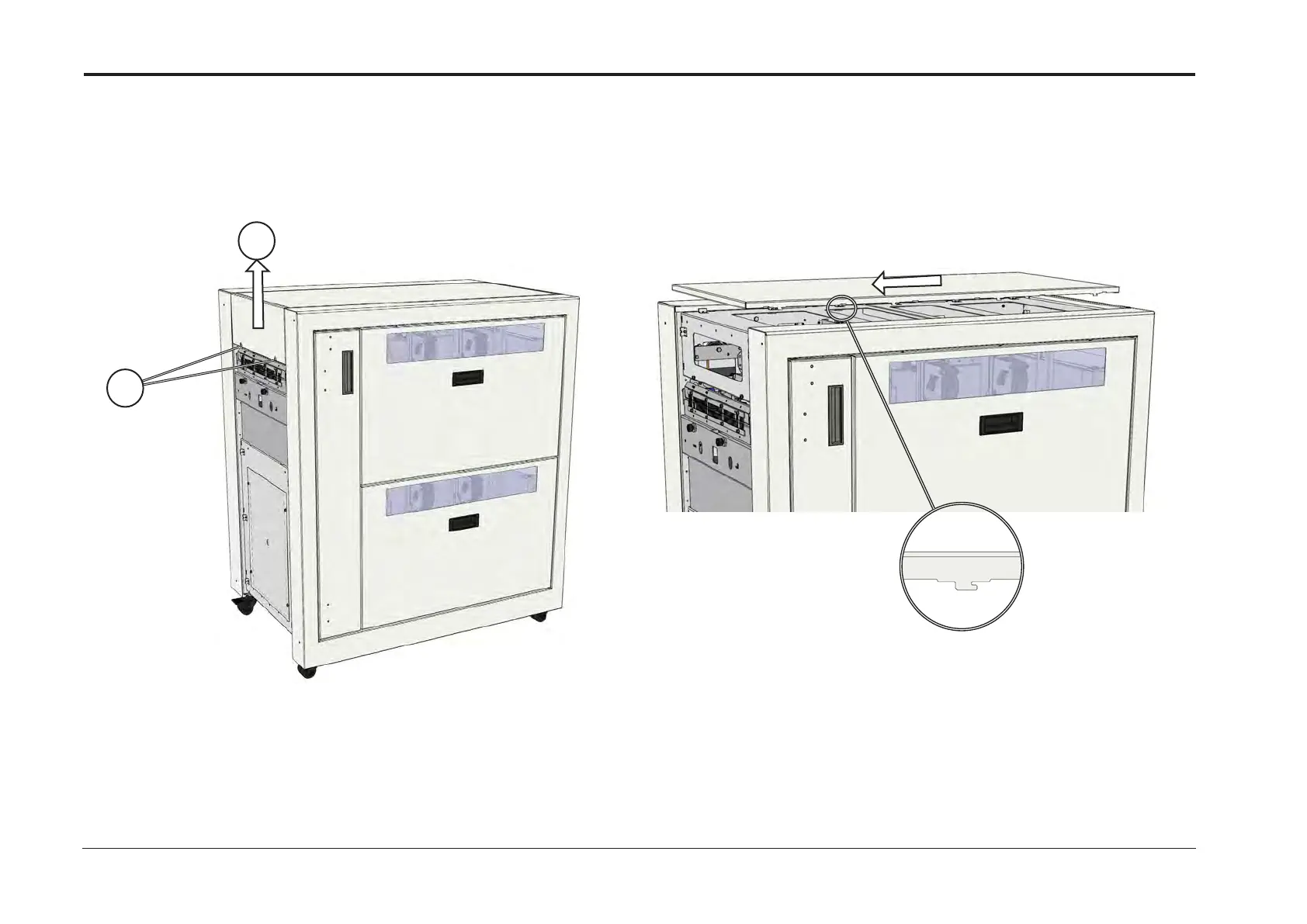

1. Loosen screw [A] (x2)
2. Slide cover [B] upwards
A
B
1. Remove Cover, Upper Exit (REP 15.4)
2. Press Cover, Top in arrow direction and remove
Replacement
Reverse removal procedure
Replacement
Reverse removal procedure
(VF602 Spare Parts Manual, PL1.0 Item 9) (VF602 Spare Parts Manual, PL1.0 Item 11)
REP 15.4 Cover, Upper Exit REP 15.5 Cover, Top
