Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-283
ADJ 4.3 Set Transport Drive
Purpose
The purpose is to set corret drive belt tension.
Adjustment
1. See REP 4.3 BM-M5 Set Transport Motor &BM-Q40 Set Transport Motor Sensor.

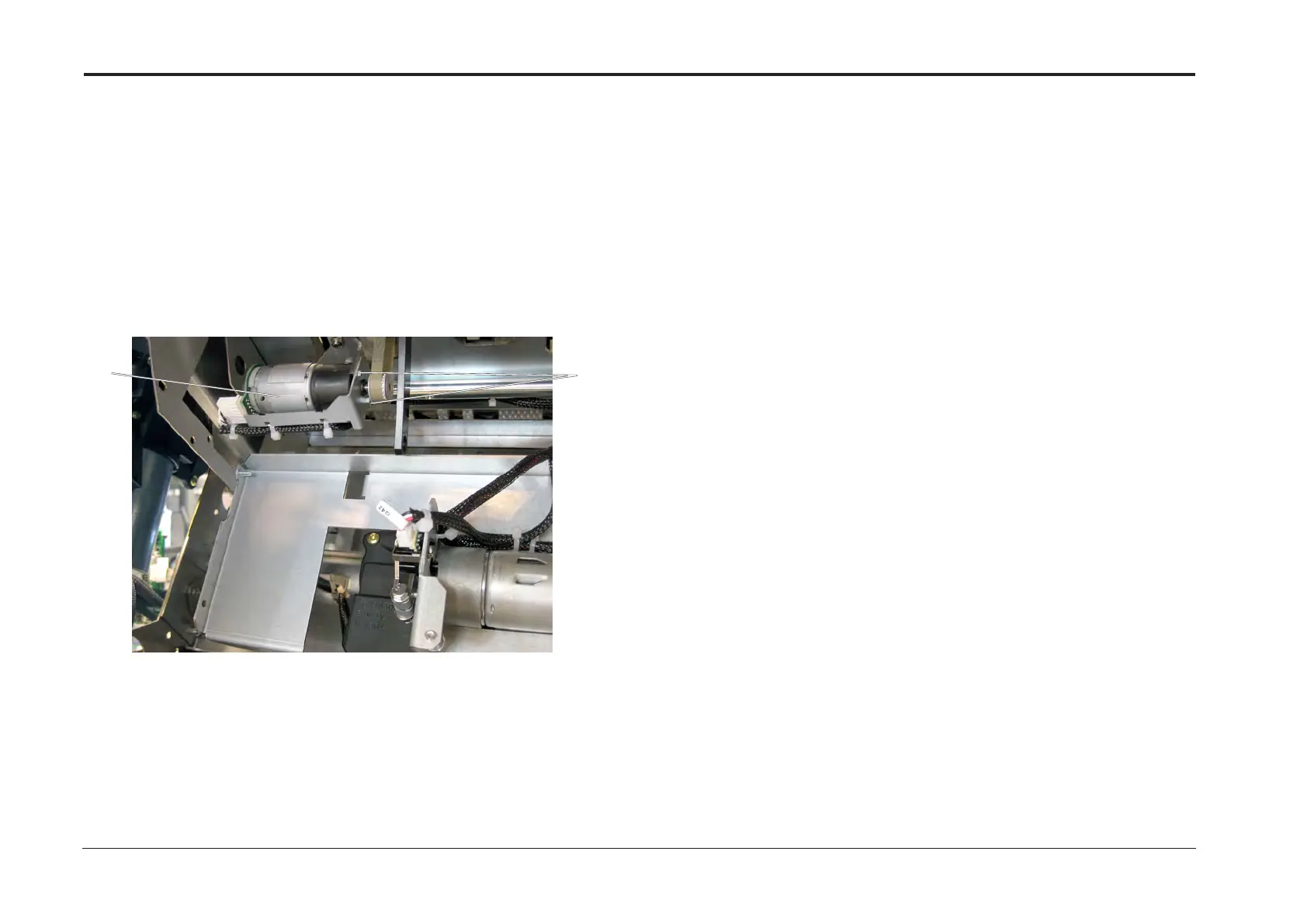

2. To adjust the tension, loosen screws (x2) [A].
Adjust the tension by moving the motor [B] and tighten the screws [A].
Too much tension will affect the speed negatively.
[B]
[A]
