ADJ 13.12 Transportation Disengage Solenoid (SOL4)
Adjustment
1. Enter the service mode, see section 5.
2. Activate transportation disengage solenoid CT-SOL4 according to section 5
3. Loosen screws (x2).
Position solenoid CT-SOL4 and tighten the screws to achieve the play
according to below gure (when activated).
Purpose
To position the Transportation Disengage Solenoid (SOL4) correctly.

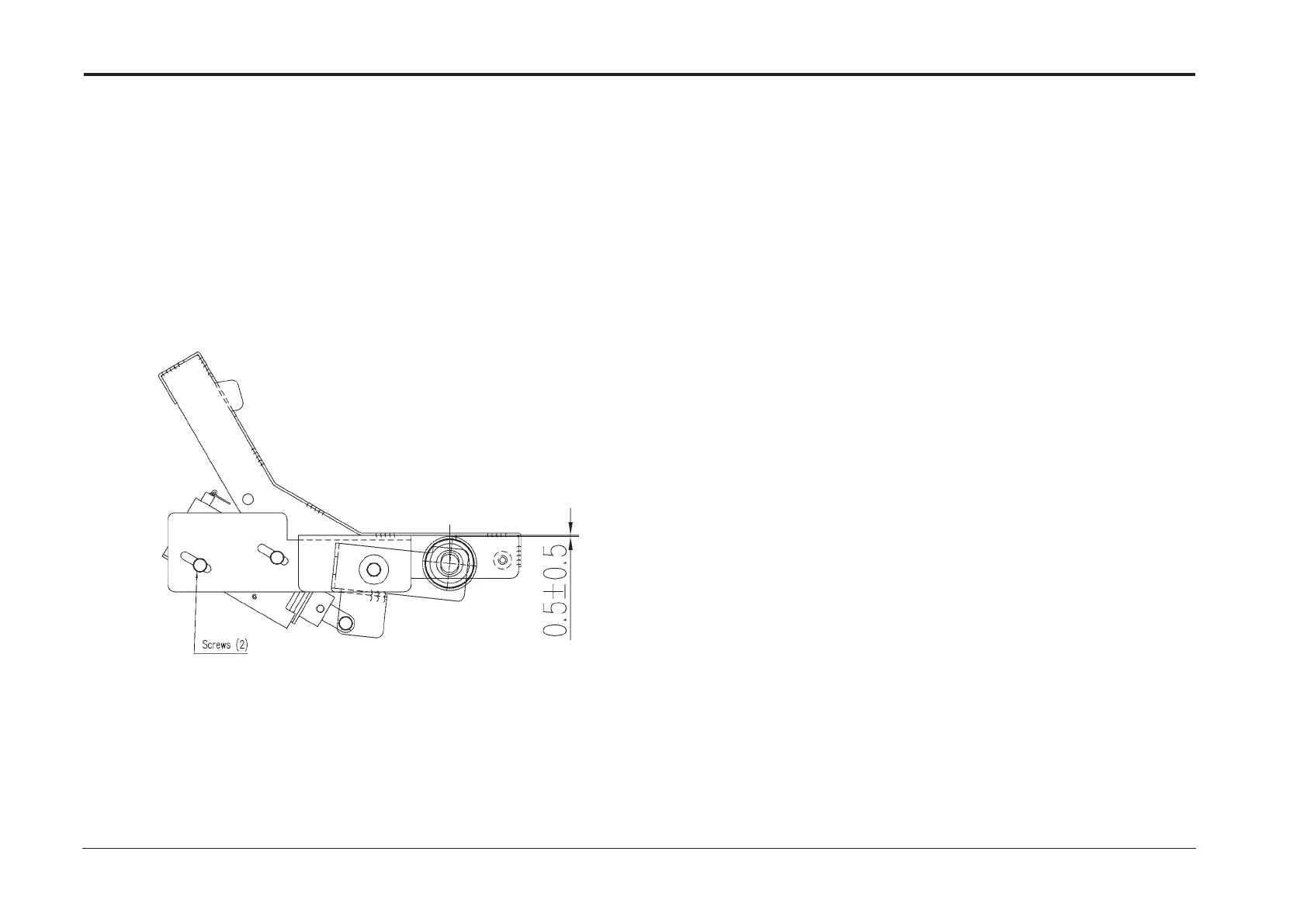

Transportation Disengage Solenoid (CT-SOL4) position, activated.
