Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-156
REP 12.42 Registration Cross Rollers Timing Belt
Parts List on PL 12.29
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Front and Rear Cover (REP 12.0 Front and rear cover).
3. Unlatch and pull out the Slide.
4. Remove the Registration Cross Rollers Drive Shaft
(REP 12.41 Registration Cross Rolls Drive Shaft).

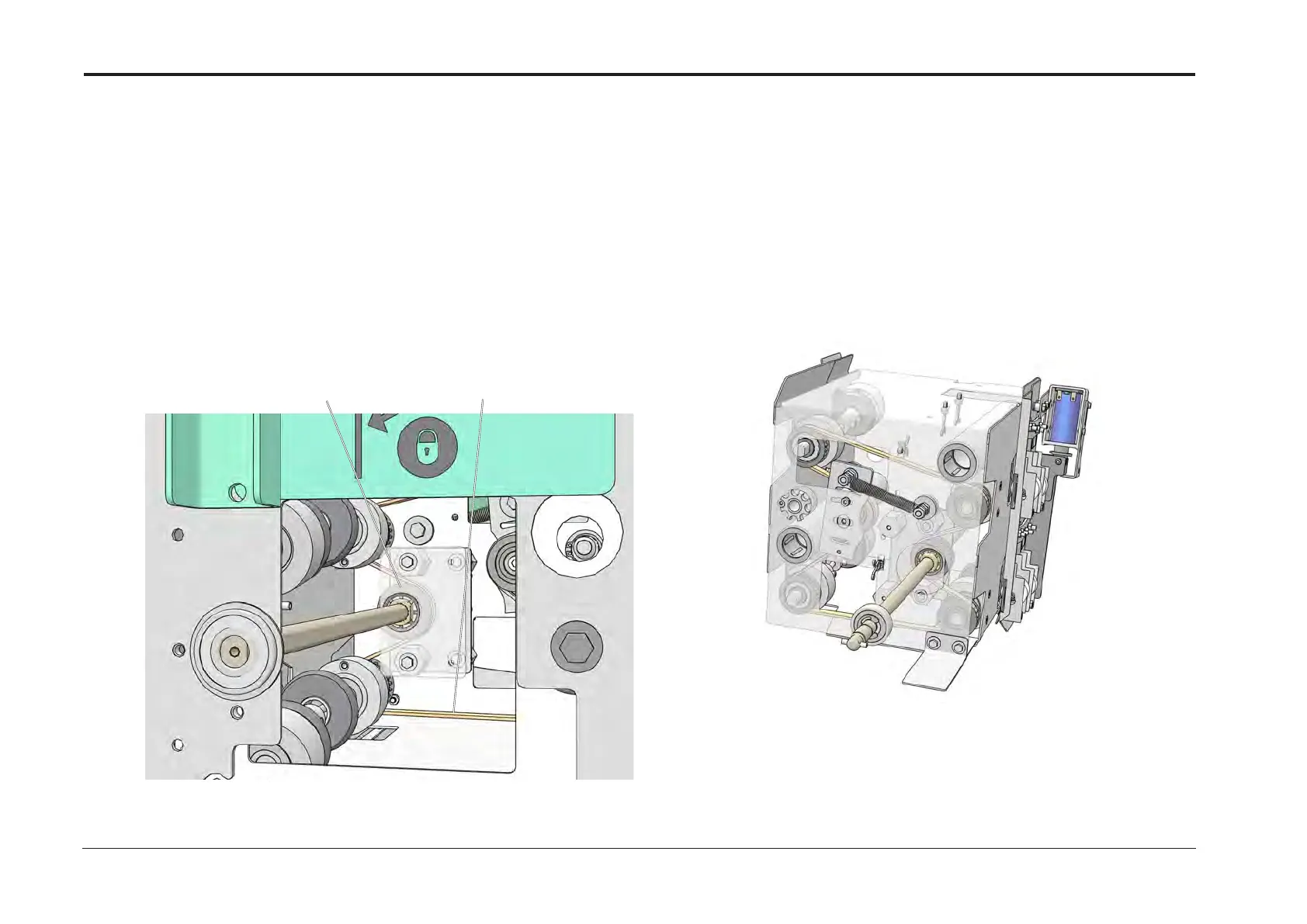

5. Remove the Registration Cross Rollers Timing Belt pulley [A]
6. Remove the Registration Cross Rollers Timing Belt [B].
[B]
[A]
Replacement
1. Reverse removal procedure.
2. Route timing belt as illustrated.
