Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-175
REP 13.5 Bleed Trimmer Disengage Solenoid (CT-SOL3)
Parts List on PL 12.40
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove the Rear Cover (REP 12.0 Front and rear cover).

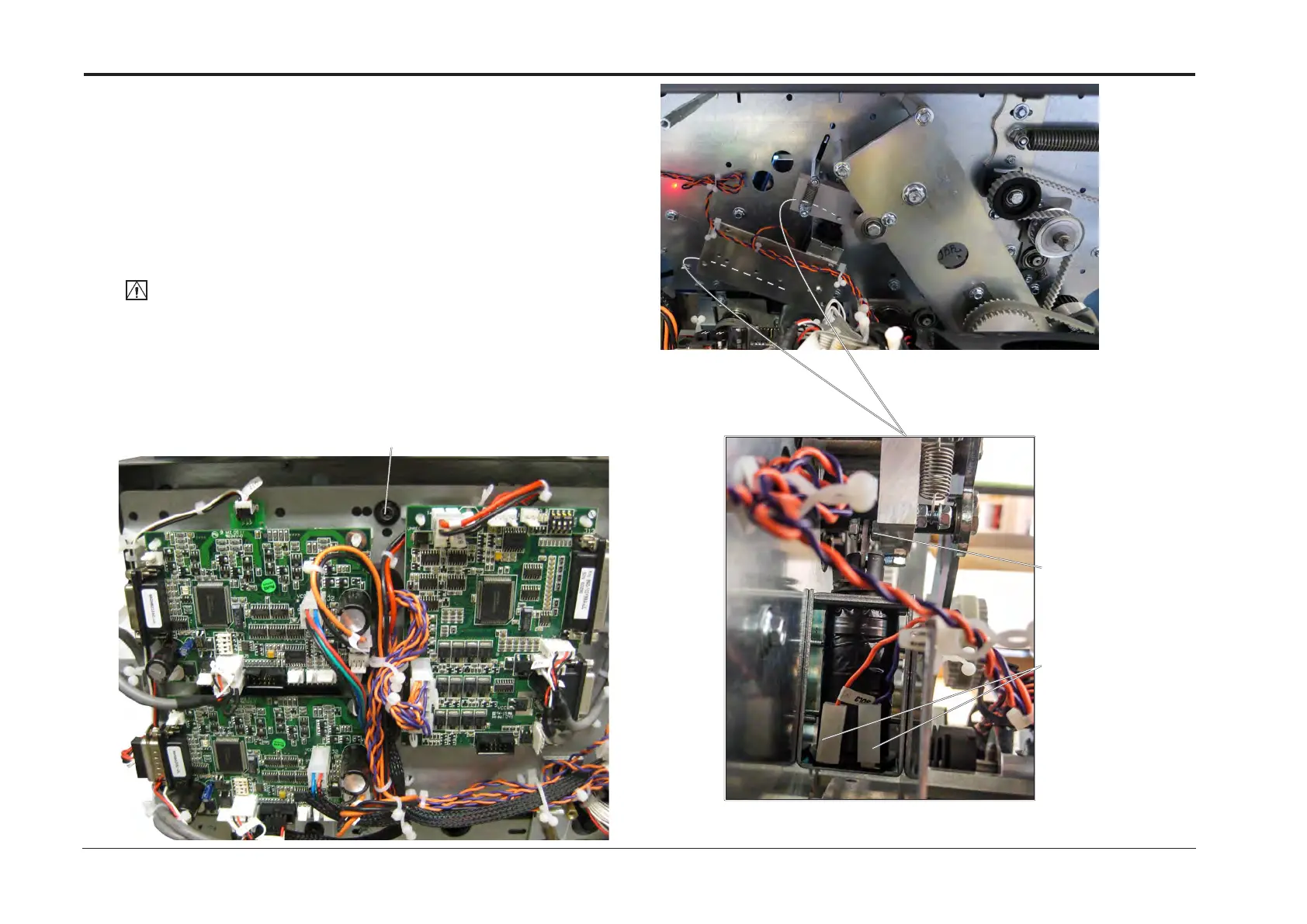

3. Remove screw [A] and fold out PCB mounting plate.
4. Note wiring position and disconnect Bleed Trimmer Disengage Solenoid (CT-SOL3)
connectors (x2) [B].
CAUTION:
The Solenoid connectors must be correctly connected during the replacement procedure.
Refer to Step 1 in the Replacement process. Failure to re-connect properly might cause
Solenoid and PCB to fail.
5. Remove screw (linkage from lever) [C].
[A]
Continued on next page.
[B]
[C]
To Next Page
