Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-292

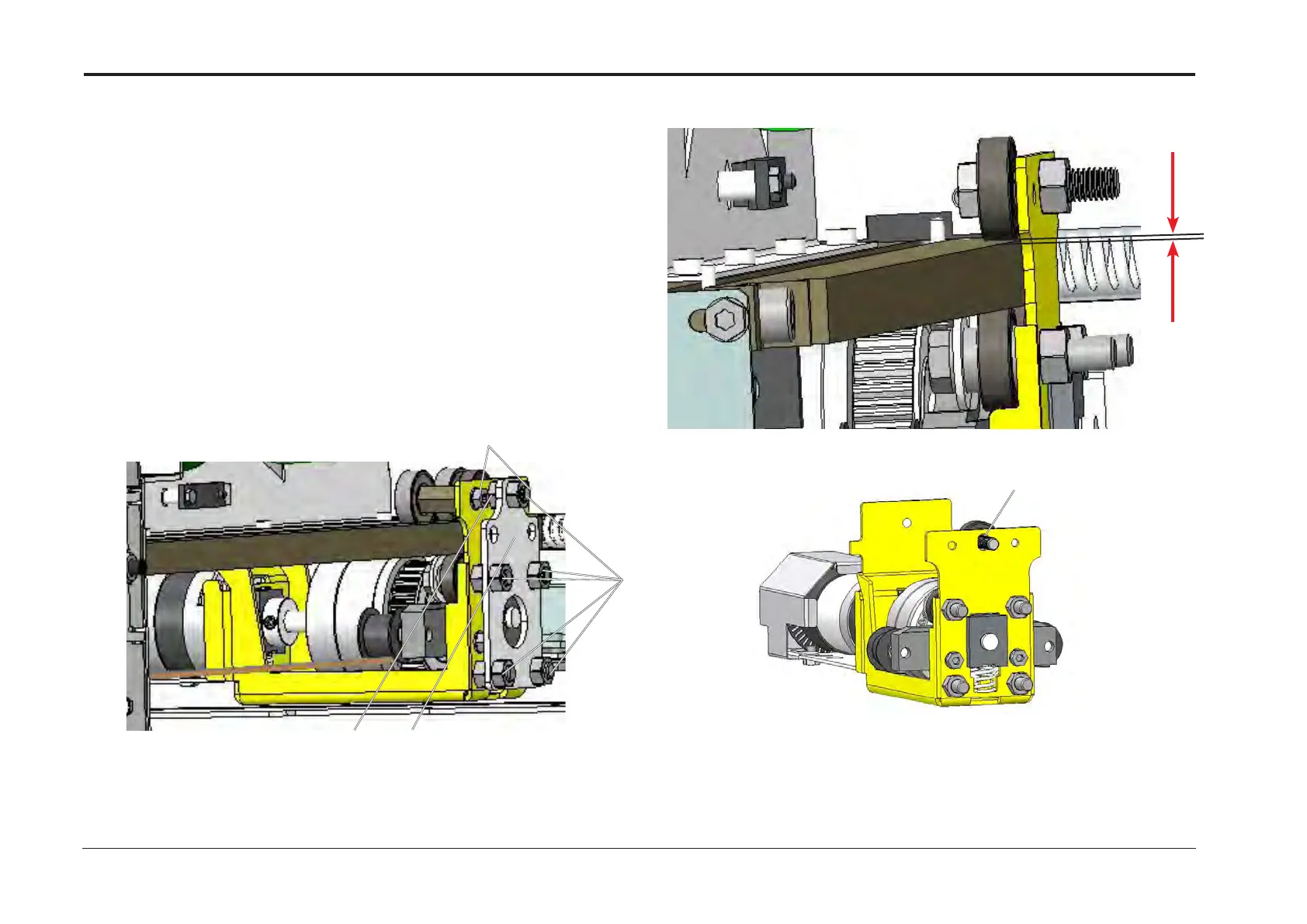

ADJ 11.9 SQF-M4 Roll Motor Assembly
Pupose
The purpose is to adjust the bearing of the roller motor assembly.
1. Adjust the position of the bearing by removing the nuts (x5) [A].
2. Remove the bracket [B].
3. Remove the screws (x2) [C] and the shafts with bearings [C].
4. Loosen the nut (x1) [D].
5. Check that the clearance [E] with a feeler gauge is within 0 to 0.2 mm,
and that the assembly moves smootly.
If clearance outside range, proceed to next step.
6. Adjust the position of the bearings by moving the screw with bearing
in the slot [F].
[A]
[B]
[C]
[D]
[F]
[E]
To Next Page
