Plockmatic BM500 - REP 15.28 Upper Support Assy

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-254
(VF602 Spare Parts Manual, PL5.0 Item 1)
Plockmatic recommends replacing the entire upper support assembly
when any of the components in the assembly malfunctions. For advanced
technicians, Individual Paper Stops (Spare PL5.0 Item 2) are available.

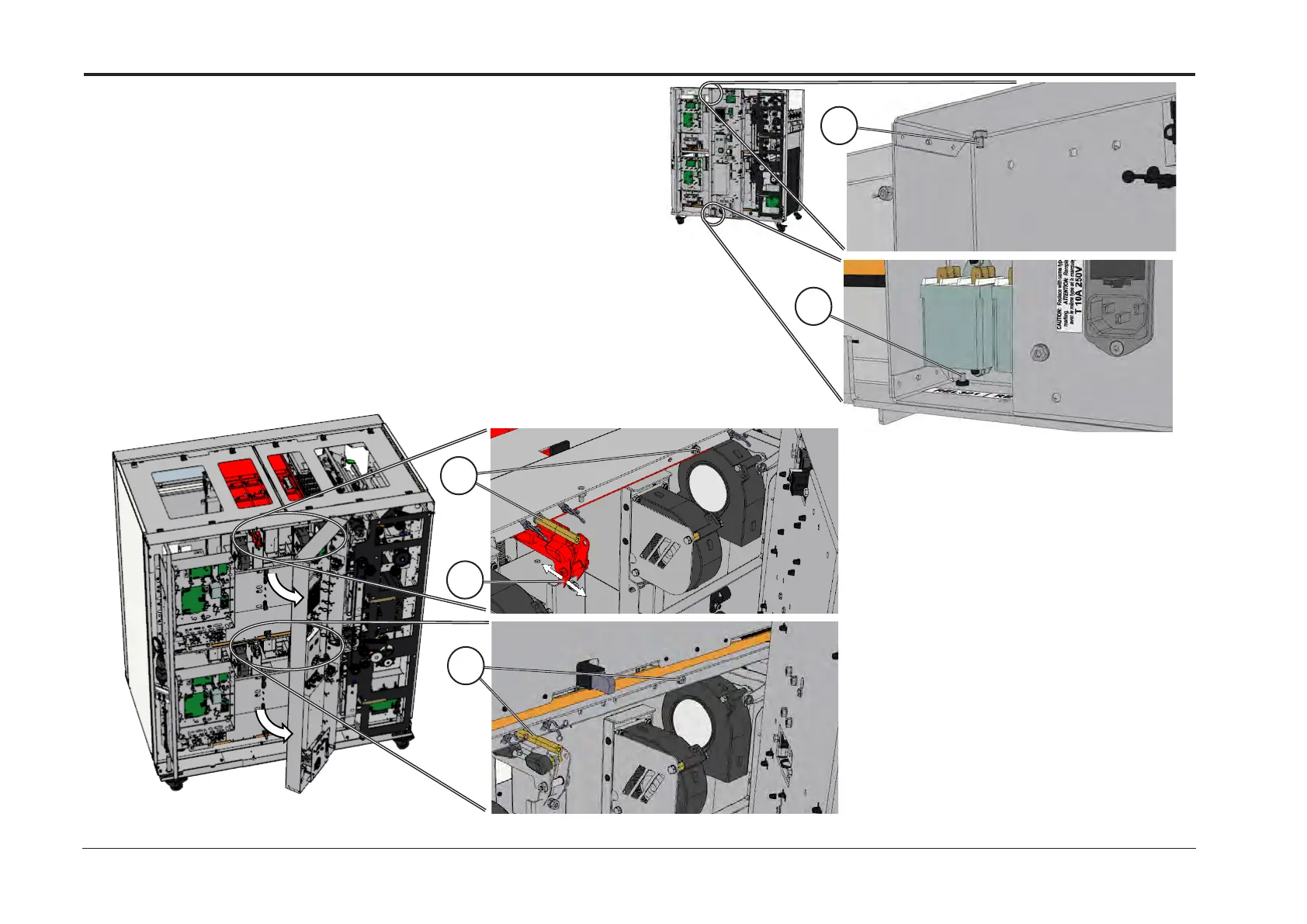

1. Remove Cover, Rear (REP 15.0) and Cover, Front (REP 15.1)
2. Remove nuts and screws [A] from electrical box and rotate electrical
box out 45 degrees (to access upper support assy mounting screws)
3. Remove [B] screws/spacer/nuts (x2)
4. Continued on next page...
A
B
F
B
Top Upper Support Assy
Bottom Upper Support Assy
Aft View
A
REP 15.28 Upper Support Assy
