Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-101
Parts List on PL 10.0

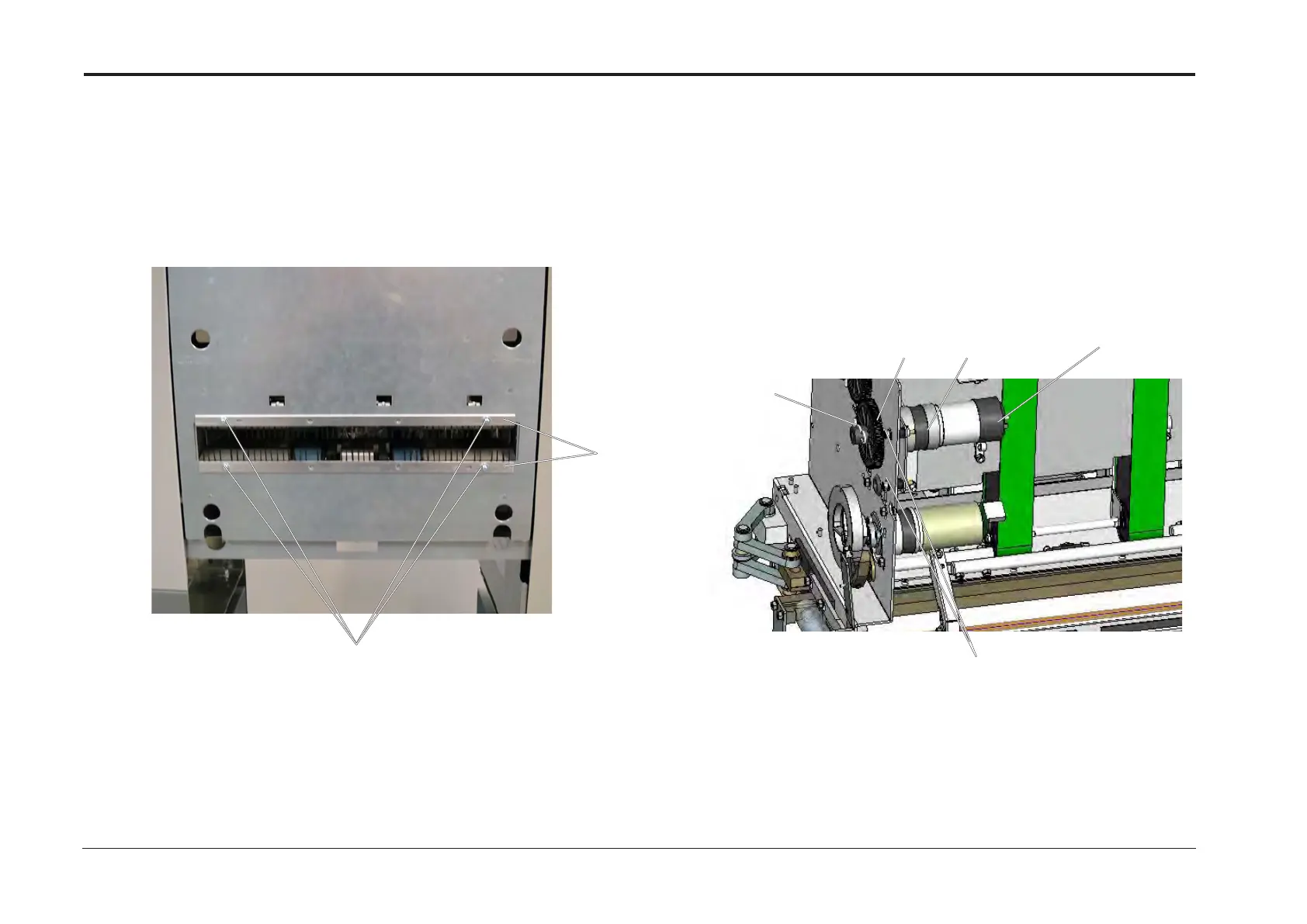

Removal
1. Turn off the main power and disconnect the power cord.
2. Undock SQF.
3. Remove screws [A] (x4).
4. Remove antistatic brush bracket [B].
REP 11.5 Antistatic Brushes
Replacement
1. Reverse removal procedure.
[B]
[A]
Parts List on PL 10.7
Removal
1. Turn off the main power and disconnect the power cord.
2. Tilt the Machine (REP 11.4 Tilt the Machine).
3. Remove R-pin [A] (x1).
4. Remove gear [B].
5. Disconnect the motor connectors (x4) [C].
6. Remove screws [D] (x4).
7. Remove Motor SQF-M1.
REP 11.6 SQF-M1 Transport Belt Motor
Replacement
1. Reinstall the motor, and secure it by tighten screws [D] (x4).
2. Connect the motor connectors (x 2).
NOTE: The Orange wire on ”+” (or 1), and the Violet wire on ”-” (or 0).
3. Reverse the rest of the removal procedure.
[B]
[C]
[A]
M1
[D]

Plockmatic BM500 Specifications

General

Max Booklet Size	A4
Max Paper Weight	300 gsm
Min Paper Weight	60 gsm
Book Thickness	Up to 5 mm
Speed	500 booklets/hour
Maximum Number of Sheets	25 sheets
Maximum Number of Pages	100 pages
Stitching Positions	2
