Plockmatic BM3050 system 27 August 2019 5. Service tables (GP)
5-52

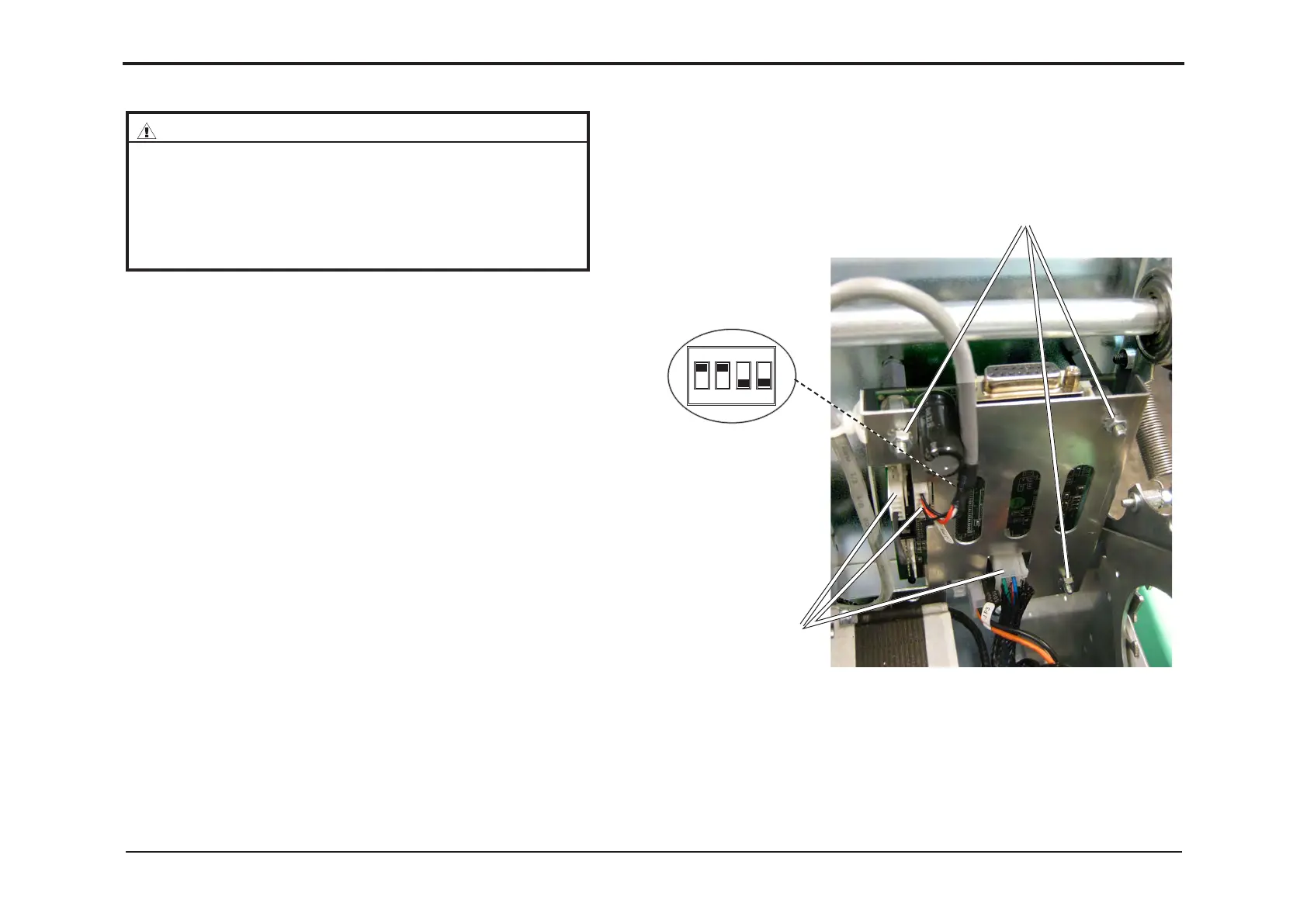

[A]
[B]
ON
1 2 3 4
GP 54 CST PCB MD1SM “J“
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD proce-
dures will cause damage to electronic components (example: PCBs). ESD
problems can be minimized by maintaining all machine ground connec-
tions, ensuring the proper handling of circuit boards and sensors. Use ESD
protection when working near PCBs. Failure to use ESD protection is likely
to result in a PCB failure.
1. Switch off the Main Power Switch and disconnect the Power Cord.
2. Remove the Rear Cover.
3. Remove Upper Slide Guide (REP 13.9).
4. Disconnect connectors (x3) [A].
5 Remove nuts (x3) [B].
6. Remove Protective Cover.
7. Re-connect connectors
8. Make sure DIP-switches 1 and 2 is set to ON (up) position
and DIP-switches 3 and 4 is set to OFF (down) position
9. Run the CST MD1SM v1.00.exe* le
(* v1.00 is an example - use latest version) and follow the instruction in the program, or
according to the latest bulletin.
