Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-284
ADJ 6.1 BM-M8 Stop Gate Folder Motor,
BM-Q7Stop Gate Folder sensor &
BM-Q48 Clinch Trigger Sensor Right
Adjustment

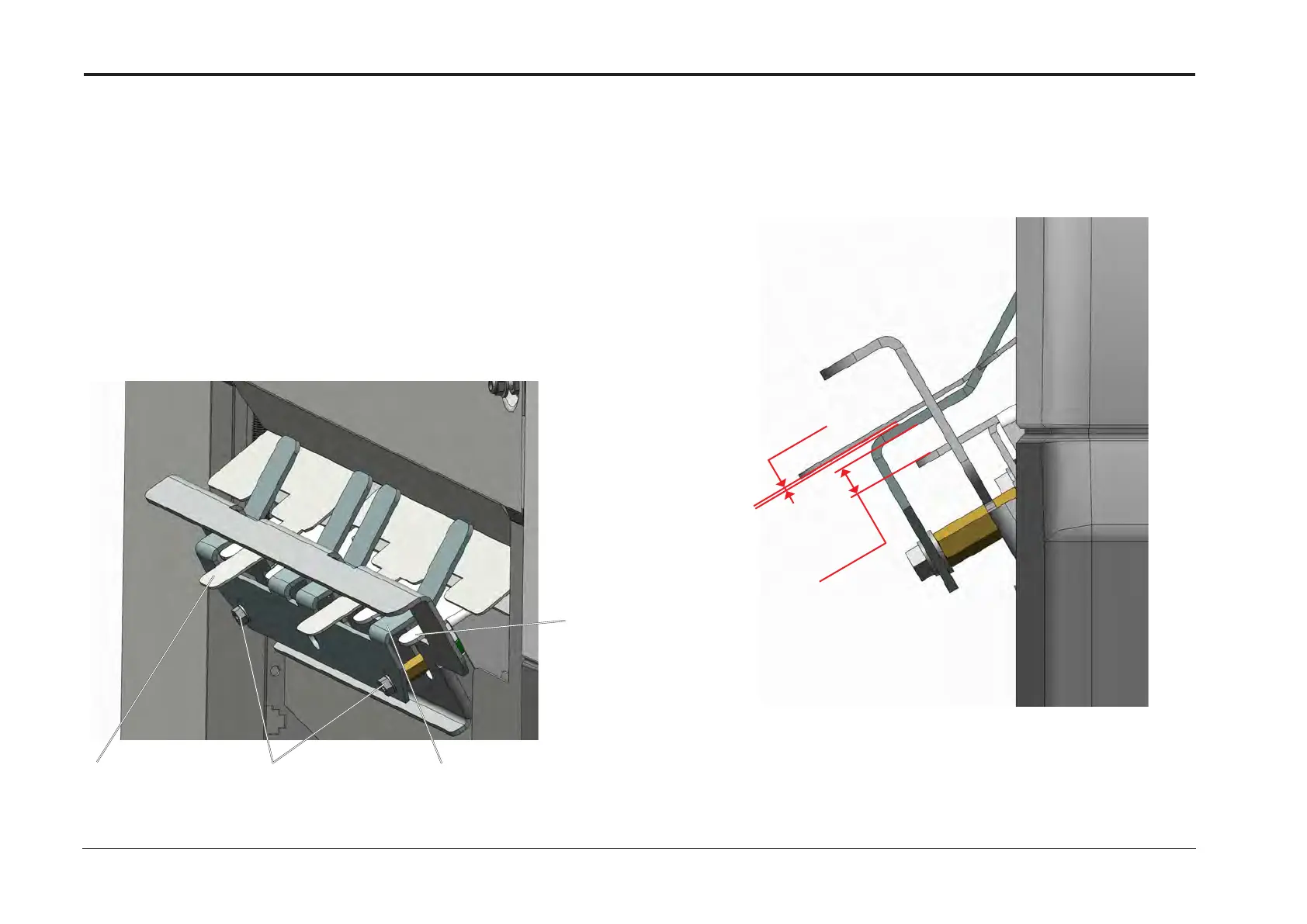

1. Check that the distance between the paper guide fold stop [A] and the lower paper path [B]
is within 6.5 ± 0.5 mm ( 2.6 ± 0.02”).
Loosen screws [C] to adjust.
2. Check that the distance between the paper guide fold stop [A] and the lower paper guide of the exit cover [D]
is within 1.5 ± 1 mm ( 0.6 ± 0.04”).
If not within range, adjust the lower paper guides of the exit cover by reforming.
[A][C]
[B]
[D]
6.5 ± 0.5 mm
(2.6 ± 0.02”)
1.5 ± 1 mm
(0.6 ± 0.04”)
To Next Page
