Plockmatic BM500 - REP 14.32 Coupling Shaft; REP 14.33 Power Supply RS-75-12 (PSU1) 12 VDC

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-230
A

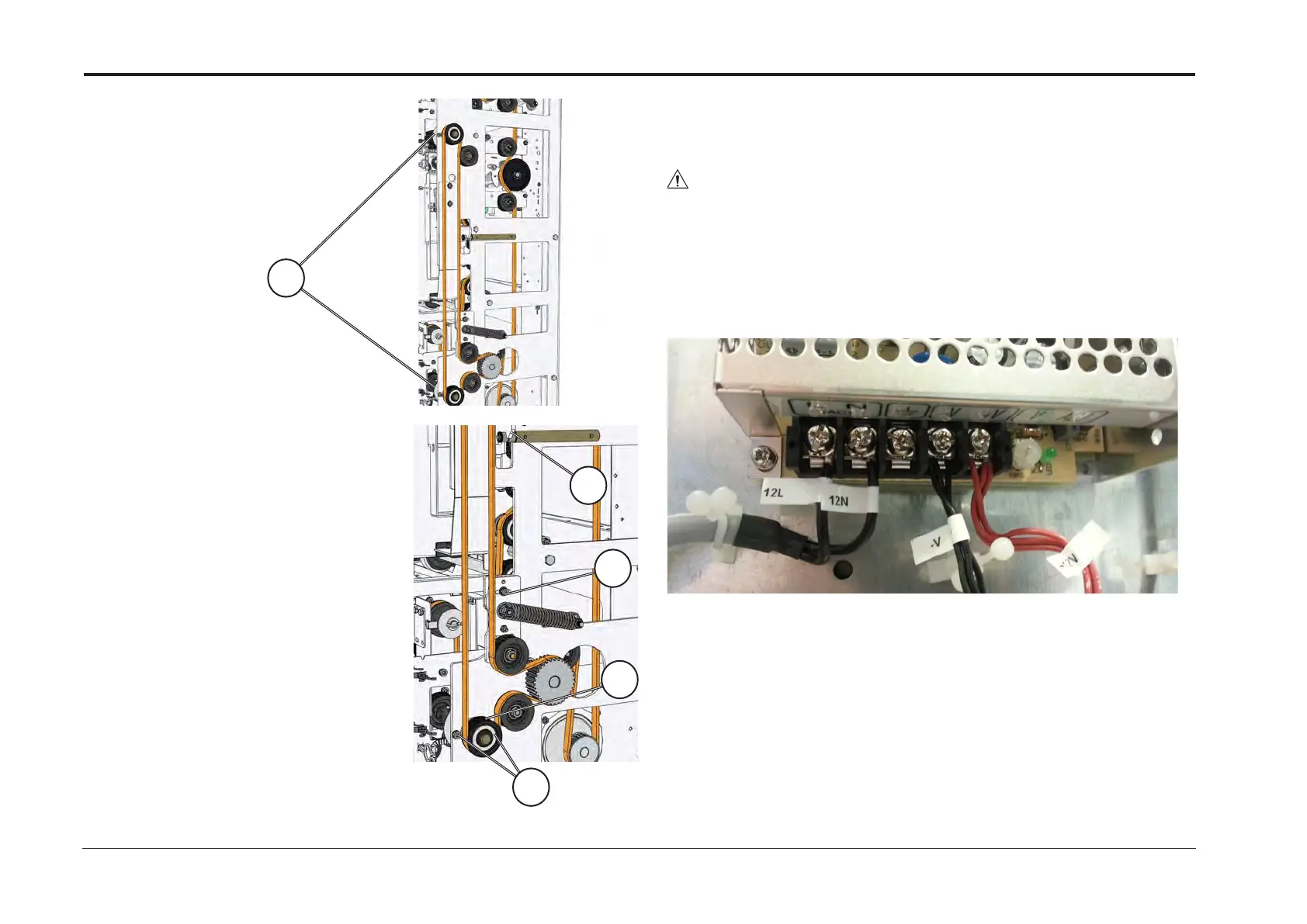

1. Coupling shafts [A]
2. Remove Cover, Rear (REP 14.0)
3. Push up the bin lock [B] and push
the bin in slightly
4. Loosen screw [C] on belt tensioner
and unhook belt from timing wheels
5. Loosen set screw [D] and remove
timing wheel
6. Remove screws [E] and remove the
coupling shaft
1. Remove Cover, Rear (REP 14.0)
2. Disconnect wires
3. Loosen screws (x2) on backside of PSU and remove PSU
E
D
C
B
Replacement
Reverse removal procedure.
Replacement
Reverse removal procedure.
Check voltage levels by performing applicable part of RAP018 12/24/48V
Low or High (section 4)
WARNING!
Turn off the AF602 Main Power Switch and disconnect the Main Power Cord before
disconnecting, removing or replacing any electrical components or measuring
resistance inside the machine.
(AF602 Spare Parts Manual, PL4.0 Item 10) (AF602 Spare Parts Manual, PL5.0 Item 4)
REP 14.32 Coupling Shaft
REP 14.33 Power Supply RS-75-12 (PSU1) 12 Vdc
