Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-308
ADJ 12.52 Creaser Assembly
Adjustment

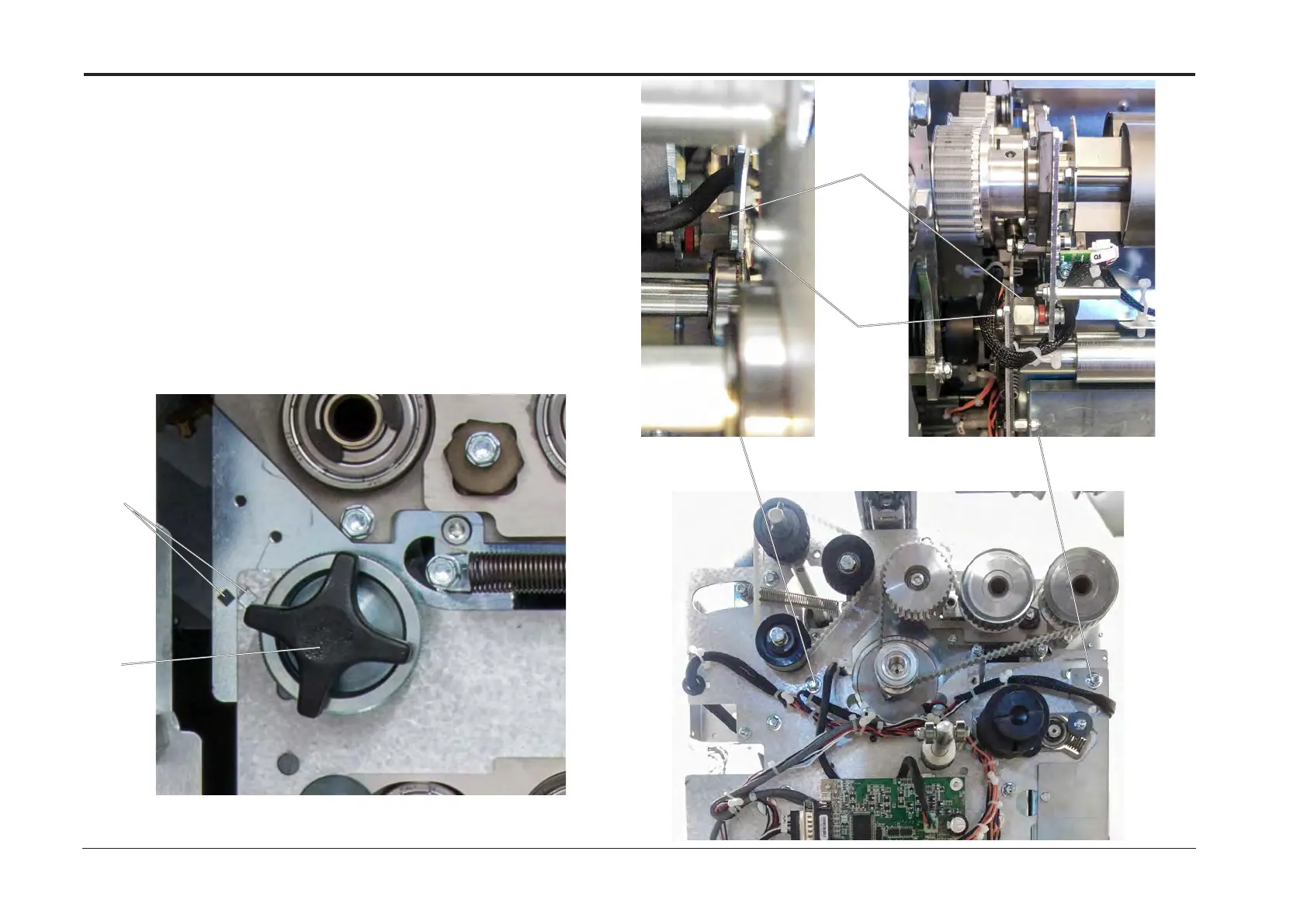

1. Align the reference marks with the eccentric [A]. Tighten the star shaped knob [B].
2. Process one sheet and SRA3 or ”12 x 18” and check that the crease is perpendicular to
the registration (non operator side) edge.
3. Hold the Creaser Space Unit [C] and loosen screws [D] (x2). Position the Creaser As-
sembly so that the Crease is perpendicular within ±0.5 mm.
Purpose
To install and adjust the Creaser Assembly correctly.
[A]
[B]
[D]
[C]
To Next Page
