Plockmatic BM3050 system 27 August 2019 4. Troubleshooting (RAP)
4-166

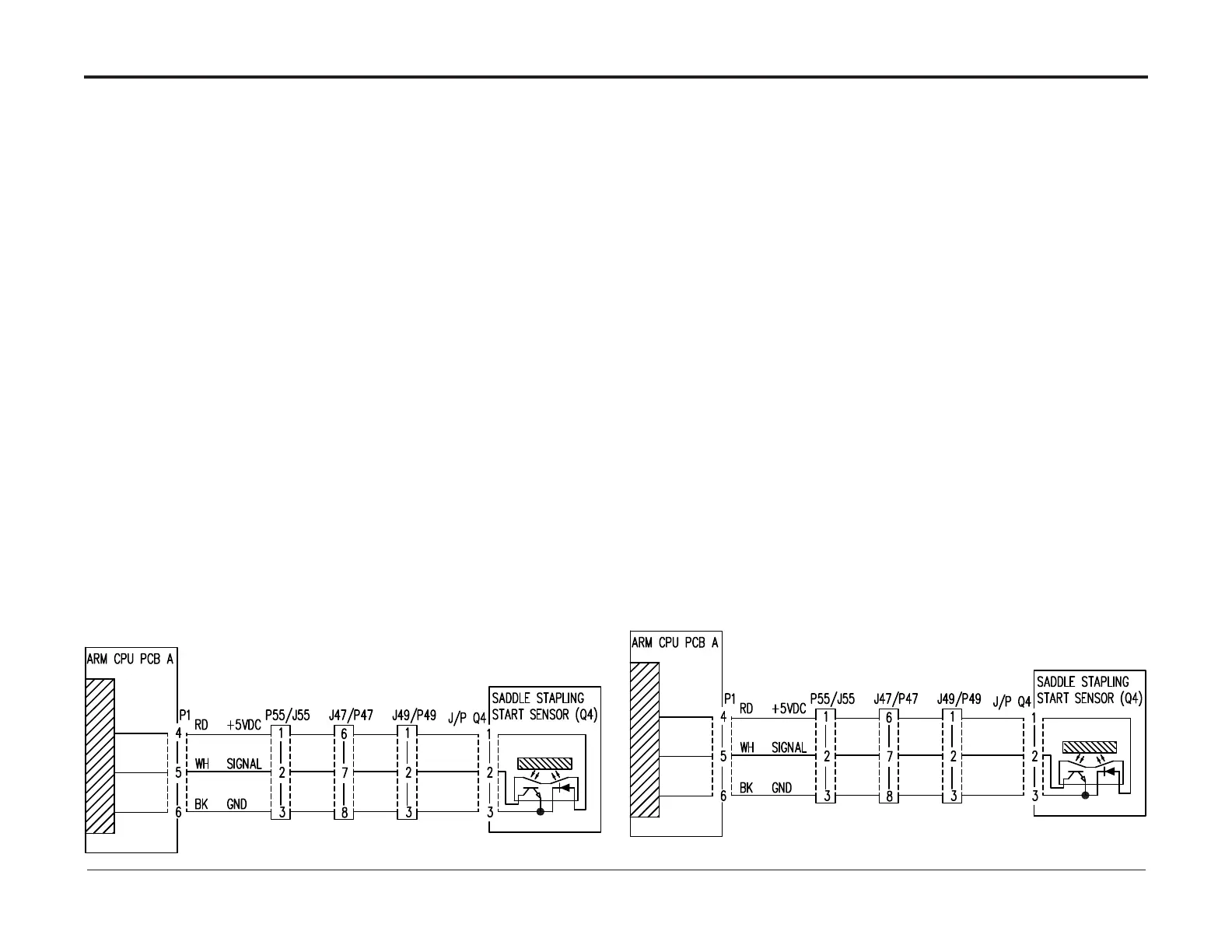

Fault code indicates that during a run BM-Q4, Start Sensor Saddle Stapling,
was not blocked within timeout.
Initial Actions
• Ensure that sensor BM-Q4 (PL 5.1) is installed correctly.
• Ensure that sensor BM-Q4 is clean.
• Ensure that jack/plug J49/P49 in the Booklet Maker is connected.
Procedure
• Check for obstructions in the paper path.
• Ensure that the Booklet maker is correctly installed.
• Go to BM-Q4 REP, continue with step 4 if no succes with BM-Q4 REP.
• If cover feeder is used in the job that caused the problem Go to Cover Feeder RAP.
• Go to Compiler RAP.
• Go to Length Adjustment Unit RAP.
• Go to Prefold Transport RAP.
• Go to Stapler RAP.
BM-203 Sensor BM-Q4 Not activated in time
Fault code indicates that at “initialization” or during a run BM-Q4 was blocked,
exceeding timeout.
Initial Actions
• Ensure that BM-Q4 (PL 5.1) is installed correctly.
• Ensure that BM-Q4 is clean.
Procedure
• Check for obstructions in the paper path.
• Ensure that the Booklet maker is correctly installed.
• Go to Prefold Transport RAP.
• If cover feeder is used in the job that caused the problem Go to Cover Feeder RAP.
• Go to Folding Unit RAP.
• Go to Compiler RAP.
• Go to Length Adjustment Unit RAP.
• Got to Stapler RAP.
BM-204 Sensor BM-Q4 Activated too long
