Plockmatic BM3050 system 27 August 2019 1. Installation Procedure
1-41
1.9 TRIMMER MODULE INSTALLATION
This section describes how to install a Trimmer to the SquareFolder.
To install the Trimmer directly onto the Booklet Maker,
proceed to section 1.10.

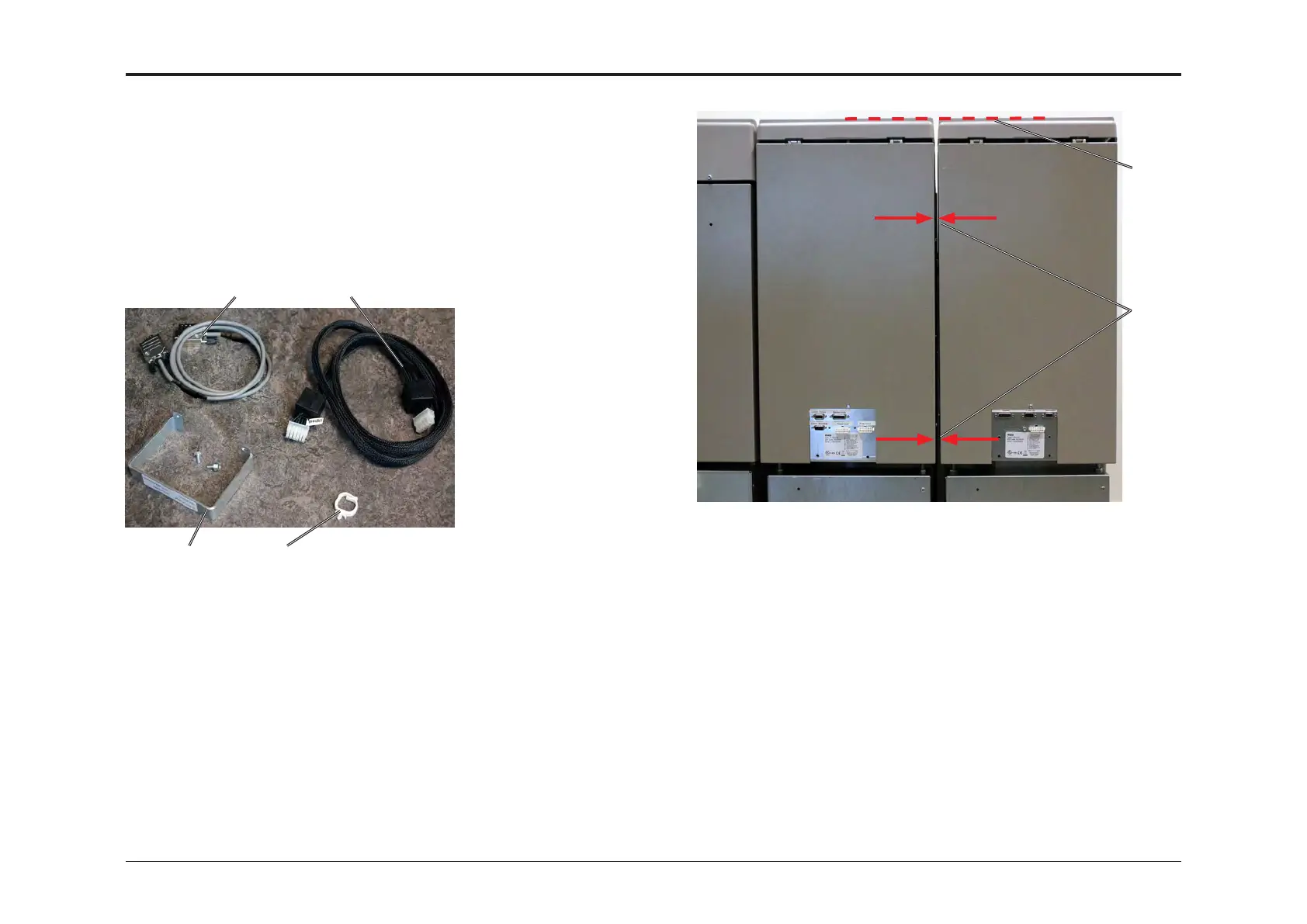

1.9.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following
list:
Description Q’ty
1. Communication cable 1
2. Power cord 1
3. Cable protector with 2 screws 1
4. Cable holder 1
1.9.2 INSTALLATION PROCEDURE, TRIMMER TO SQUARE FOLD
[3] [4]
[1] [2]
1. Roll the Trimmer up to the Square Fold.
Purpose is to check alignment top to bottom and height adjustment.
2. Alignment is correct when the distance between the Square Fold and
the Trimmer is equal top to bottom [A].
Height adjustment is correct when the top surface of the Trimmer front
cover is at the same height as the top surface ot the Square Fold front
cover [B].
If adjustment is necessary, begin with adjusting alignment and con-
tinue with adjusting height.
3. Remove four screws [D] and remove Trimmer front cover.
4. Adjust the height of the Trimmer by turning the four nuts [E].
Two on the front side and two on the back side.
Adjust alignment by turning only two of the nuts on either the infeed or
exit side.
[A]
[B]
To Next Page
