Plockmatic BM3050 system 27 August 2019 1. Installation Procedure
1-40
[H]
[J]
[K]
[I]
This is the end of the SquareFold Module installation procedure.
Installing connectors and cables and checking of installation will be done
later on.
Continue with next section below.

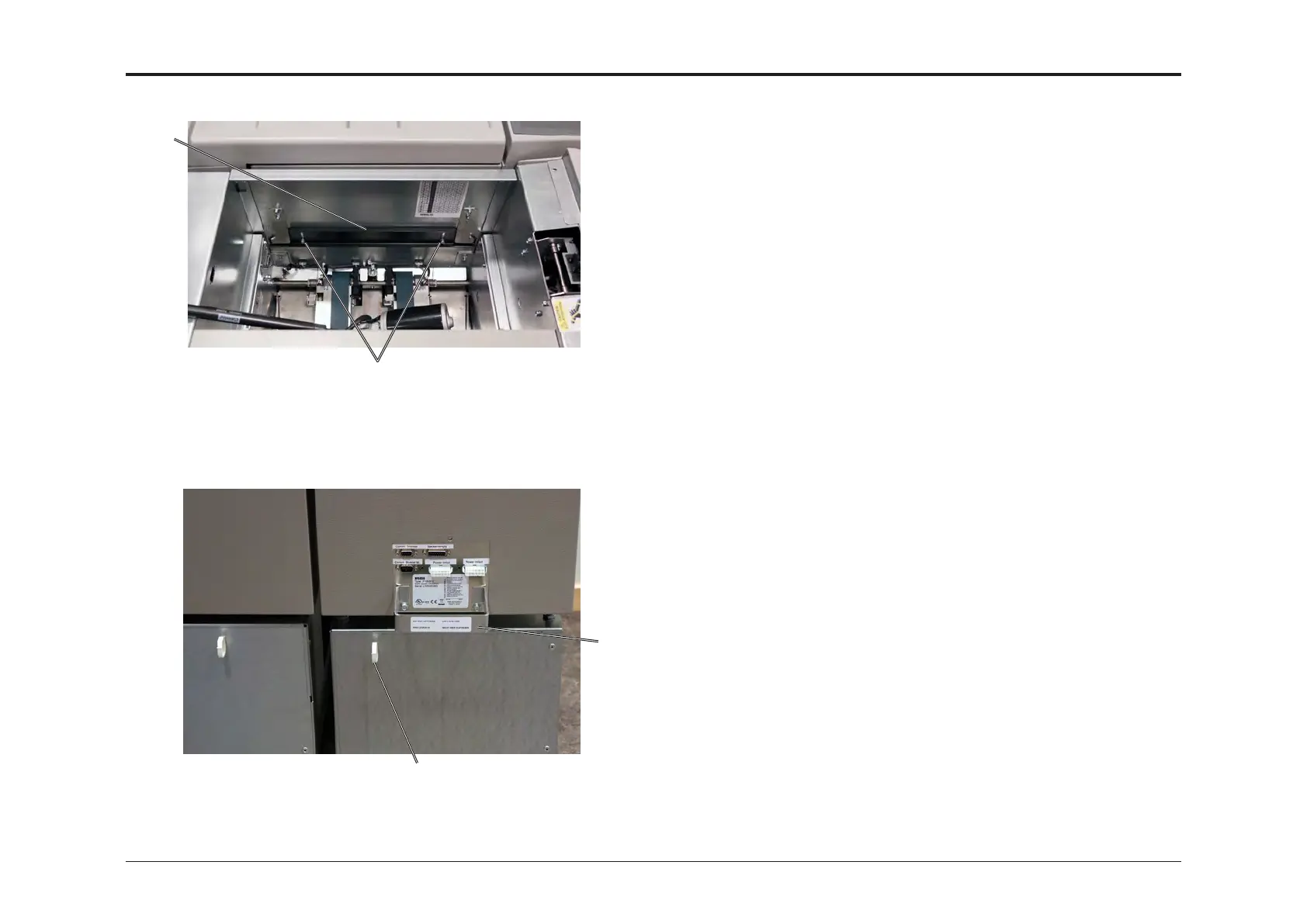

8. Reinstall front and rear covers after adjustment.
9. Dock the Square Folder to the Booklet Maker.
10. Lift the docking latch [H] and secure by tightening two nuts [I].
11. Install the cable protector [J] (two screws) and the cable holder [K] to
the Square Fold.
To Next Page
